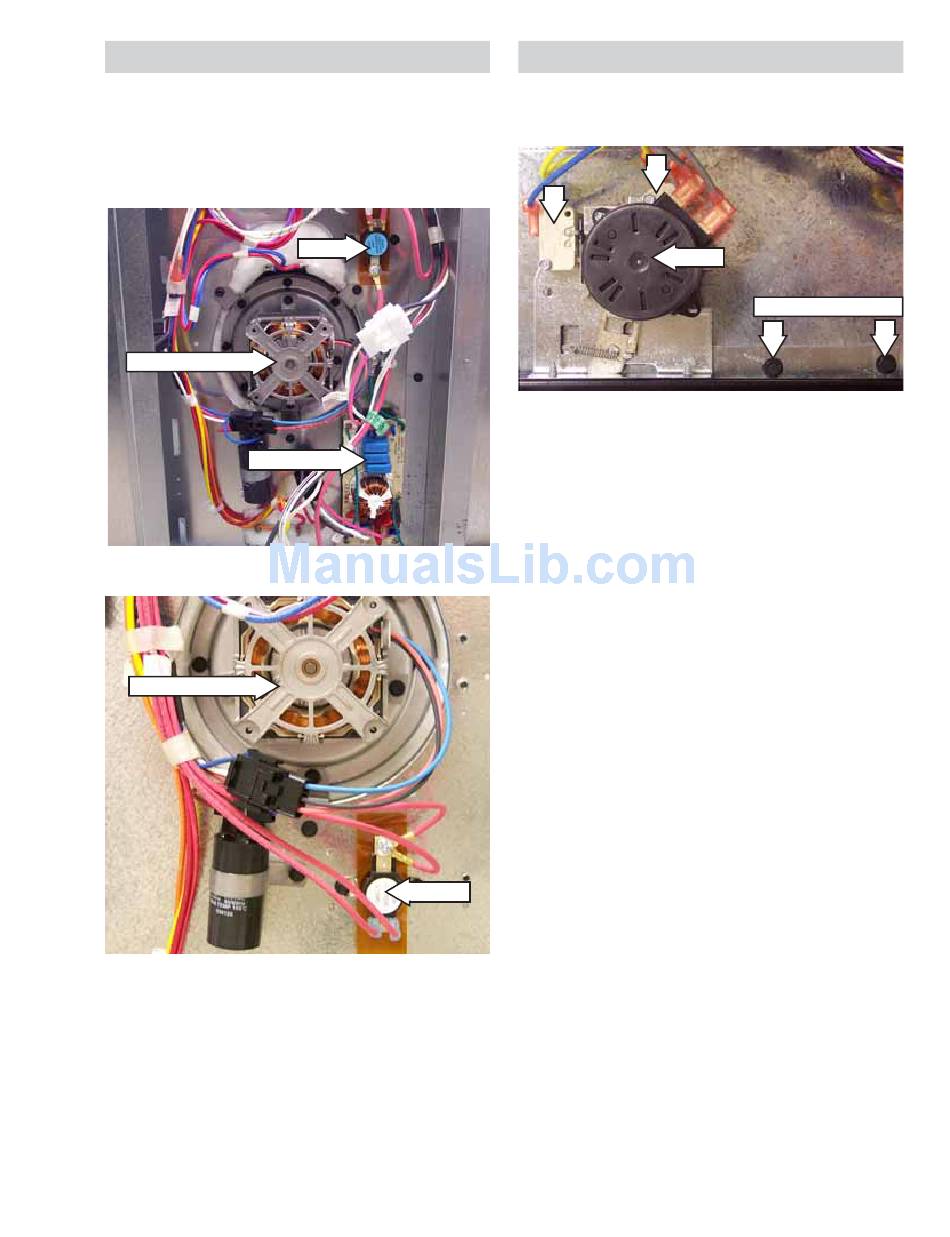

High Limit Thermal One-Shot TCO

The high limit thermal one-shot TCO is located on
the rear of the oven behind the center cover and is
wired in series with L2 from the terminal block.
Slide-In Range
Convection Fan
EMI Board
Single and Upper Double Wall Ovens
Convection Fan
• These thermal switches are a non-resettable
device and will open at 302°F, indicating a
thermal runaway condition.
• If tripped, the oven must be removed from
installation in order for the one-shot TCO to be
replaced.
• Cause of overheating should be determined
before replacing the TCO.
TCO
TCO
– 23 –

Self-Clean Latch Motor

To remove the self-clean latch motor assembly,
1
remove the two / -in. hex head screws.
4
2
1
Motor
1 - Unlock Switch
• Blue and yellow wires.
• Reads closed when the door is unlocked.
2 - Lock Switch
• Orange and yellow wires
• Reads infinity when the door is unlocked.
Hex Head Screws
