Oven Light Bulb Assembly - GE JS998 Series Technical Service Manual

Inner Glass Assembly
OVEN

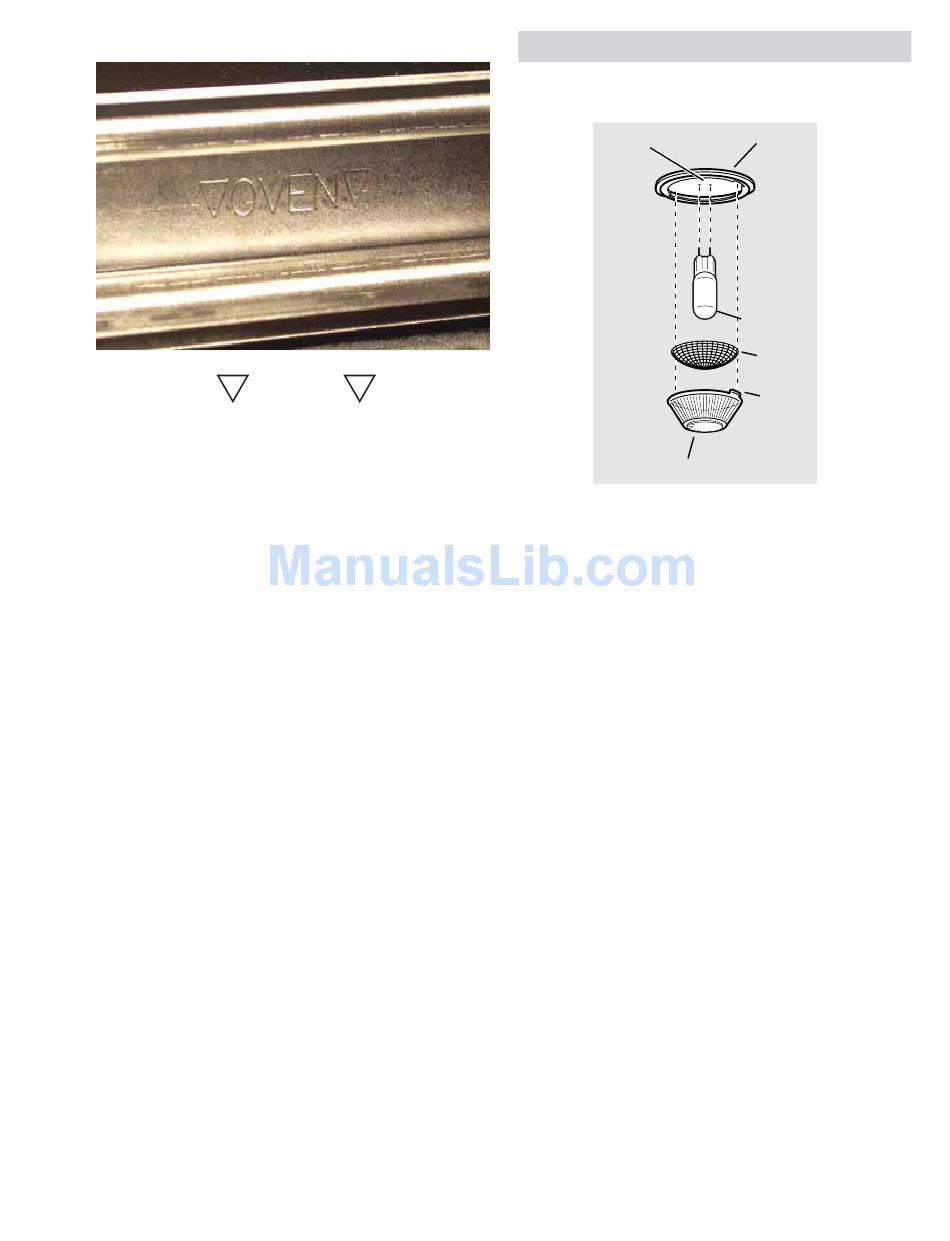

Note: Arrows on the side of the inner glass
assembly indicate the direction in which the oven
door glass is installed. The arrows should be
pointing toward the oven cavity.
Inner Door Assembly
The inner door liner, glass and hinges are one
assembly and should NOT be separated. All the
screws on the inner door assembly have been
torqued to a specific setting and Loctite
applied to prevent microwave leakage.
To replace the Trivection
1. Firmly grasp both sides of the door at the top.
2. With the door at the same angle as the
removal position, seat the indentation of the
hinge arm into the bottom edge of the hinge
slot. The notch in the hinge arm must be fully
seated into the bottom of the slot.
3. Fully open the door. If the door cannot be fully
opened, the hinge is not properly seated.
4. Push the hinge locks up against the front
frame of the oven cavity, to the locked
position.
5. Reinstall the security screws on each hinge.
6. Close the oven door and check for proper
alignment, rubbing, etc.
7. Perform the Microwave Leakage Test.
Note: On slide-in models, the door rubbing on the
oven cavity may be due to the leveling legs. If the
oven is not level it can "rack" the cavity and cause
rubbing.
®
sealant
TM door:
– 17 –

Oven Light Bulb Assembly

Receptacle
Glass cover
Note: The glass cover should be removed only
when cold. Be sure to let the light cover and bulb
cool completely. Do not touch a hot bulb with bare
hands or a damp cloth.
Replace with a new 130V halogen bulb, not to
exceed 50 watts.
Note: Bulbs are 50 watt in Trivection
30 watts in the lower oven of double oven.
To remove and replace the oven light bulb:
1. Turn the glass cover counterclockwise
until the tabs of the glass cover clear the
grooves of the socket.
2. Using gloves or a dry cloth, remove the bulb
by pulling it straight out.
3. Using gloves or a dry cloth, remove the new
bulb from its packaging. Do not touch the bulb
with bare fingers.
4. Push the bulb straight into the receptacle all
the way. Then replace the screen.
Note: The screen must be replaced or the life of
the bulb will be reduced.
Socket
Bulb
Screen
Tab
TM oven, and
1
/ turn
4
