Manual

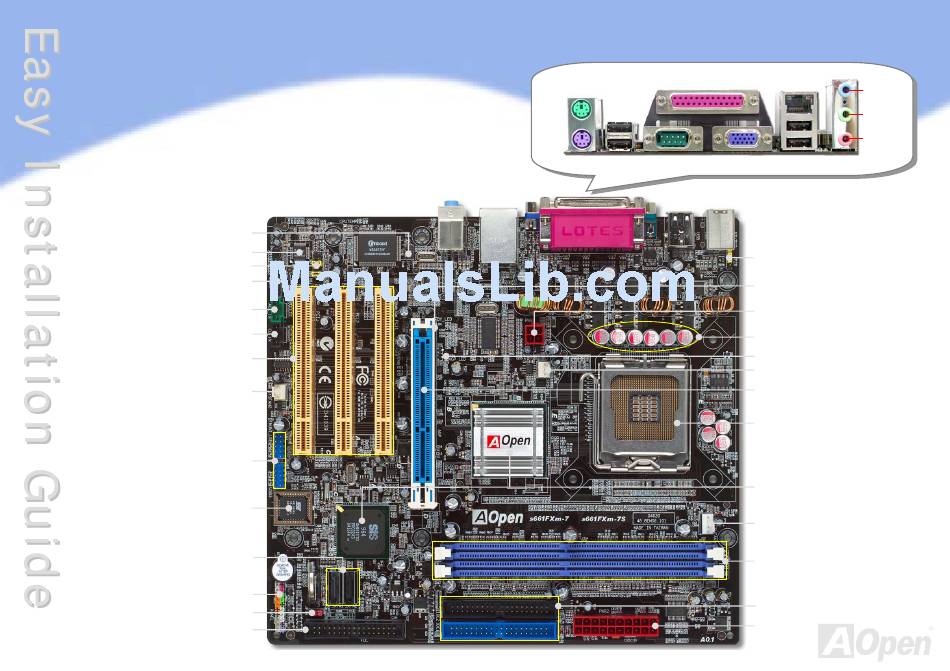

s661FXm-7S / s661FXm-7
IrDA Connector
Onboard AC'97 CODEC
Front Audio Connector
S/PDIF Connector
AUX_IN Connector
CD_IN Connector
32-bit PCI Expansion Slots x3
SYSFAN2 Connector
USB 2.0 Connectors x2
DieHard BIOS Lite
Serial ATA Connectors x2
Supports 150 MB/s Transfer Rate
(s661FXm-7S)
Front Panel Connector
JP14 CMOS Data Clear Jumper
FDD Connector
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
USB 2.0
Ports
PS/2
VGA Port
COM Port
Keyboard
RJ45 10/100
LAN Jack
Line-In
Speaker
Out
MIC-In
USB 2.0 Ports
JP28 PS2 KB/Mouse Wakeup
Jumper
STBY LED
4-pin 12V ATX Power Connector
Low ESR Capacitors
AGP Protection LED
SYSFAN1 Connector
AGP 8X Expansion Slot that
supports 8X AGP card(2.1GB/s)
LGA775 CPU Socket with
Voltage and Frequency
Auto-Detection that supports
®
Intel
FC-LGA4 CPU
SiS 661FX/SiS 964(s661FXm-7S)
SiS 661FX/SiS 964L(s661FXm-7)
Chipsets that supports 800 MHZ
FSB, DDR 400, AGP 8X, and
10/100 Mbps LAN
CPUFAN Connector
184-pin DIMMsx2
support DDR400/333/266
Max. To 2GB
IDE Connectors x 2
(ATA 66/100/133 supported)
ATX Power Connector
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AOpen s661FXm-7S
Summary of Contents for AOpen s661FXm-7S
- Page 1 Front Panel Connector IDE Connectors x 2 (ATA 66/100/133 supported) JP14 CMOS Data Clear Jumper ATX Power Connector FDD Connector AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
- Page 2 CD-ROM and SATA I/O Shield x 1 etc) Disk, etc Serial ATA Cable x 1 (for s661FXm-7S only) Serial ATA Power cable x 1 (for s661FXm-7S only) 5. Connecting Front 8. Installing Other Devices Panel Cable (USB, Front Audio, etc) 6.
-
Page 3: Installing Cpu
1. Installing CPU 3. Installing Memory Modules This socket supports FC-LGA4 CPU, which is the latest CPU package developed by DIMM slots are designed in Electronic blue which are very easy to recognize. Insert Intel. Other forms of CPU package are impossible to be fitted in. the module straight down to the DIMM slot with both hands and press down firmly Pull CPU socket lever and plate up. - Page 4 Front Panel Connector 6. Connecting ATX Power Cables 8. AOpen Bonus Pack CD and EzInstall This motherboard comes with a 20-pin and 4-pin ATX power connector as shown You can use the autorun menu of Bonus CD disc. Choose the utility and driver below.
-
Page 5: Jp14 Clear Cmos
Setting CPU Voltage & Frequency JP14 Clear CMOS Setting CPU Core Voltage You can clear CMOS to restore system default setting. To clear the CMOS, follow This motherboard supports Voltage ID (VID) function to detect CPU voltage the procedure below. automatically during power-on. -
Page 6: Usb 2.0 Connector
USB 2.0 Connector Front Audio Connector This motherboard provides eight USB 2.0 ports to connect USB devices, such as If the housing is designed with an audio port on the front panel, you’ll be able to mouse, keyboard, modem, printer, etc. There are four ports on the back panel. connect onboard audio to front panel through this connector. -
Page 7: Model Name And Bios Version
Gold member of Club AOpen, and to ensure high service quality and priority from AOpen. You will also have a chance to play slot machine game to win prize from AOpen. Please prepare the following information before you start: Model Name, Part Number (P/N), Serial Number (S/N) and Purchase Date. - Page 8 Gold Member of Club AOpen so as to ensure quality service in the future. In order to maintain the best service to every customer of us, we recommend you to follow the procedures below and seek help from our branches according to the region you buy the product.
