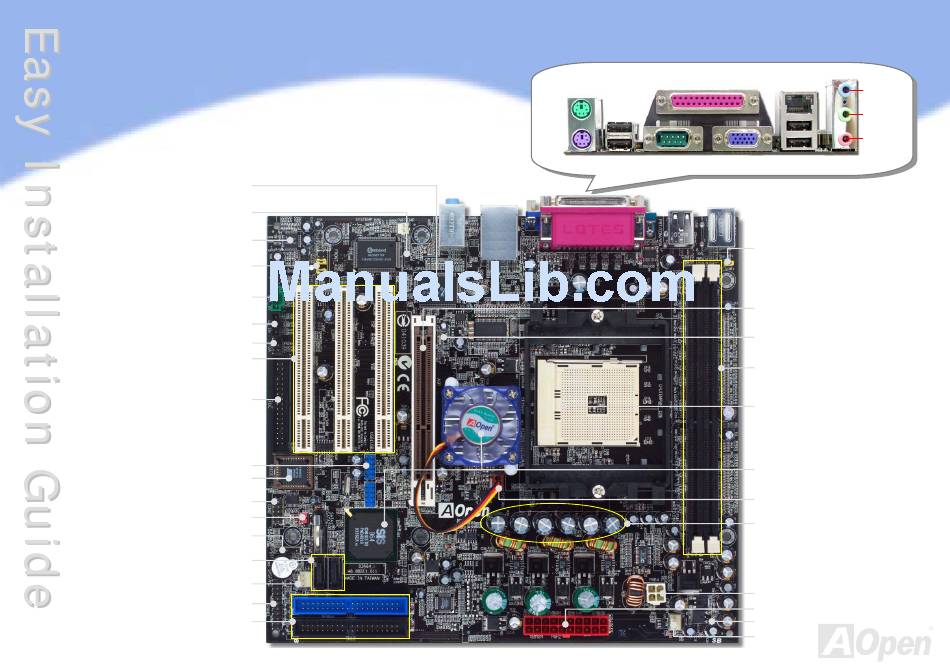

s760GXm-SL / s760GXm-S / s760GXm
RealTek Gigabit LAN chip
(for s760GXm-SL)
RealTek 10/100Mbps LAN chip
(for s760GXm-S/s760GXm)
Case Open Connector
Onboard AC'97 CODEC
Front Audio Connector
AUX_IN Connector
CD_IN Connector
IrDA Connector
32-bit PCI Expansion Slots x3
FDD Connector
USB 2.0 Connectors x2
DieHard BIOS Lite
COM2 Connector
JP14 CMOS Data Clear Jumper
S/PDIF Connector
Serial ATA Connectors x2
Supports 150 MB/s Transfer Rate
(s760GXm-SL/s760GXm-S)
SYSFAN2 Connector
Front Panel Connector
IDE Connectors x 2
(ATA 66/100/133 supported)
AOpen reserves the right to revise all the specifications and information contained in this document, which are subject to change without notice.
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
USB 2.0
Ports
PS/2
VGA Port
COM 1 Port
Keyboard
RJ45 10/100/1000
LAN Jack
Line-In
MIC-In
Speaker
Out
USB 2.0 Ports
JP28 PS2 KB/Mouse Wakeup
Jumper
AGP 8X Expansion Slot that
supports 8X AGP card(2.1GB/s)
AGP Protection LED
184-pin DIMMsx2
support DDR400/333/266
Max. To 2GB
754-pin CPU Socket with
Voltage and Frequency
Auto-Detection that supports
®
TM
AMD
Athlon
64 CPU
SiS 760GX/SiS 964 Chipsets
(s760GXm-SL/s760GXm-S)
SiS 760GX/SiS 964L Chipsets
(s760GXm)
SYSFAN1 Connector
Low ESR Capacitors
4-pin ATX Power Connector
ATX Power Connector
STBY LED
CPUFAN Connector
