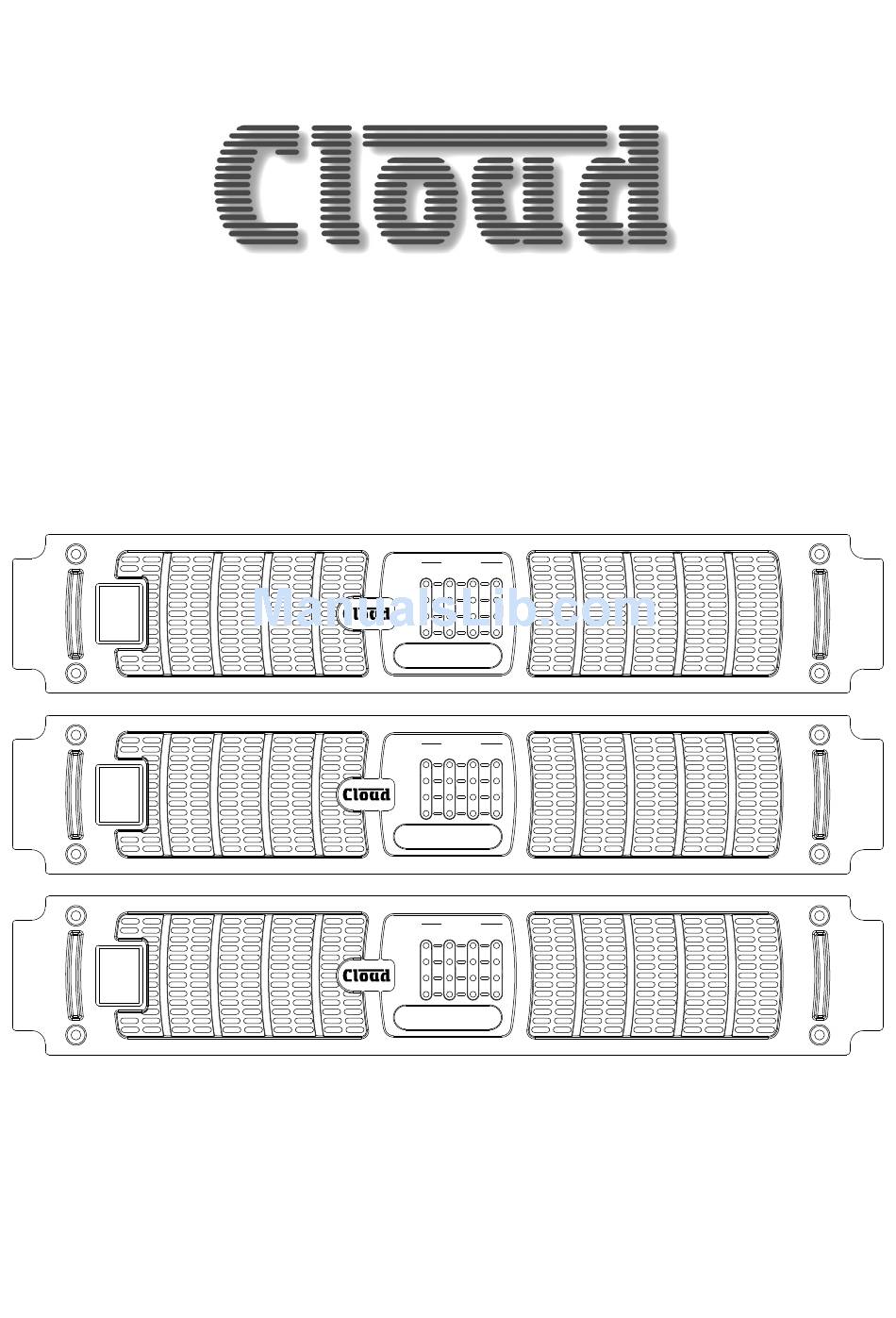

VTX SERIES

POWER AMPLIFIERS

VTX 4120, VTX 4240, VTX 4400
O
I
O
I
O
I
Installation and User Guide
CHANNEL
1
2
3
4
PROTECT
PEAK
SIGNAL
POWER

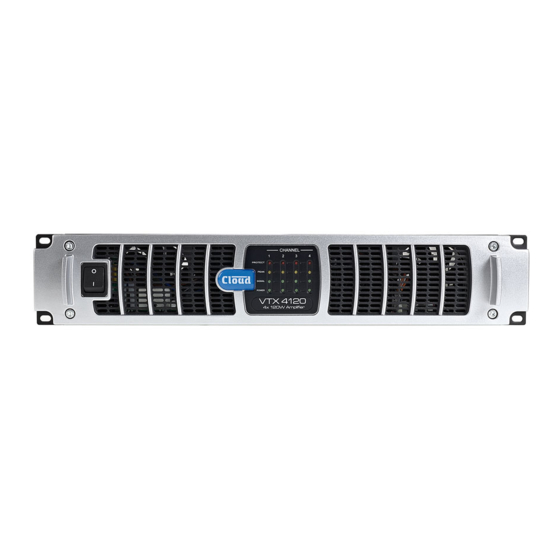

VTX 4120
4x 120W Amplifier
CHANNEL
1
2
3
4
PROTECT
PEAK
SIGNAL
POWER
VTX 4240
4x 240W Amplifier
CHANNEL
1
2
3
4
PROTECT
PEAK
SIGNAL
POWER
VTX 4400
4x 400W Amplifier

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VTX 4120 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cloud VTX 4120

  • Page 1: Power Amplifiers

    VTX SERIES POWER AMPLIFIERS VTX 4120, VTX 4240, VTX 4400 CHANNEL PROTECT PEAK SIGNAL POWER VTX 4120 4x 120W Amplifier CHANNEL PROTECT PEAK SIGNAL POWER VTX 4240 4x 240W Amplifier CHANNEL PROTECT PEAK SIGNAL POWER VTX 4400 4x 400W Amplifier...
  • Page 3: Table Of Contents

    Contents Safety Information ........4 Safety Notes regarding Installation ......4 Safety Considerations and Information ....4 General Description ........5 VTX range main features ......... 5 Applicable Models ............5 Block Diagram ..........5 Front Panel Description ....... 6 Rear Panel Description .........
  • Page 4: Safety Information

    Cloud service centre or other qualified Conformities person for repair.
  • Page 5: General Description

    VTX range main features: • High power multichannel amplifiers for “install-and- Cloud VTX amplifiers are a range of high power multi- forget” applications channel audio amplifiers intended for use with high quality PA and music systems in locations where unquestionable •...
  • Page 6: Front Panel Description

    fig.2: VTX Front Panel (NOTE: VTX4120 shown – other models are identical) Front Panel Description POWER LEDs - (one per channel) – illuminate after PROTECT LEDs – (one per channel) – illuminate if power-up sequence to confirm normal power supply the internal heatsink temperature exceeds 90 °C operation AC Power switch...
  • Page 7: Installation

    Installation Connections and adjustments Inputs Mechanical Each amplifier channel has an electronically-balanced input on VTX amplifiers are designed to be mounted in a standard a 3-pin, 3.5 mm-pitch screw terminal connector. The mating 19” equipment rack. The front panel is fitted with rackmount connector is supplied.
  • Page 8 CHS 2 & 4 Quad mono CHS 1, 2, 3 & 4 Cloud CXL-100T is suitable for use with the VTX4120; Remote Control of Level transformers with higher ratings will be necessary for use VTX amplifiers are compatible with standard Cloud remote with the VTX4240 and VTX4400).
  • Page 9: Protection

    The Cloud CXL-100T is suitable for use with other components in the event of a fault condition. the Model VTX4120, and one transformer will be required per channel.
  • Page 10: Bose® Equalisation Modules (Optional)

    Other modules are available to provide the correct equalisation for loudspeakers from other manufacturers as Earthing well as for other Bose® models; please contact Cloud for When several mains powered units are connected together more details. via their signal cables, there is a risk of one or more earth...
  • Page 11: Appendix

    Appendix Technical Specifications VTX4120 VTX4240 VTX4400 Output (Normal Mode) 120 W (4Ω) 240 W (4Ω) 400 W (4Ω) Output (Bridged Mode) 240 W (8Ω) 480 W (8Ω) 800 W (8Ω) Frequency Response 20 kHz to 20 kHz, +0/-1 dB; (HPF bypassed) High Pass Filter -3 dB @ 65 Hz, slope 18 dB/octave (switchable) Distortion...
  • Page 12: Location Of Jumpers And Other Internal Components

    Location of jumpers and other internal components NOTE: The following jumpers and connectors are relevant to the optional VTX-WM1 surveillance card: J109 - J409 J110 - J410 J107 - 407A J801B, J802B Full details are in the VTX-WM1 Installation and User Manual BOSE®...
  • Page 13: Factory Default Jumper Settings Table

    Factory default jumper settings table Jumper/Connector Function Channel No. Default Setting J104 J204 Bose® EQ card sockets Empty J304 J404 J108 J208 Bose® EQ card bypass jumpers Present J308 J408 J107A J207A J307A J407A VTX-WM1 surveillance card interface sockets Empty J801B J802B J805B*...
  • Page 14 Bose® is a registered trademark of The Bose Corporation. In the interest of continuing improvements Cloud Electronics Limited reserves the right to alter specifications without prior notice. VTX Series User Manual v1.0...
  • Page 16 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
