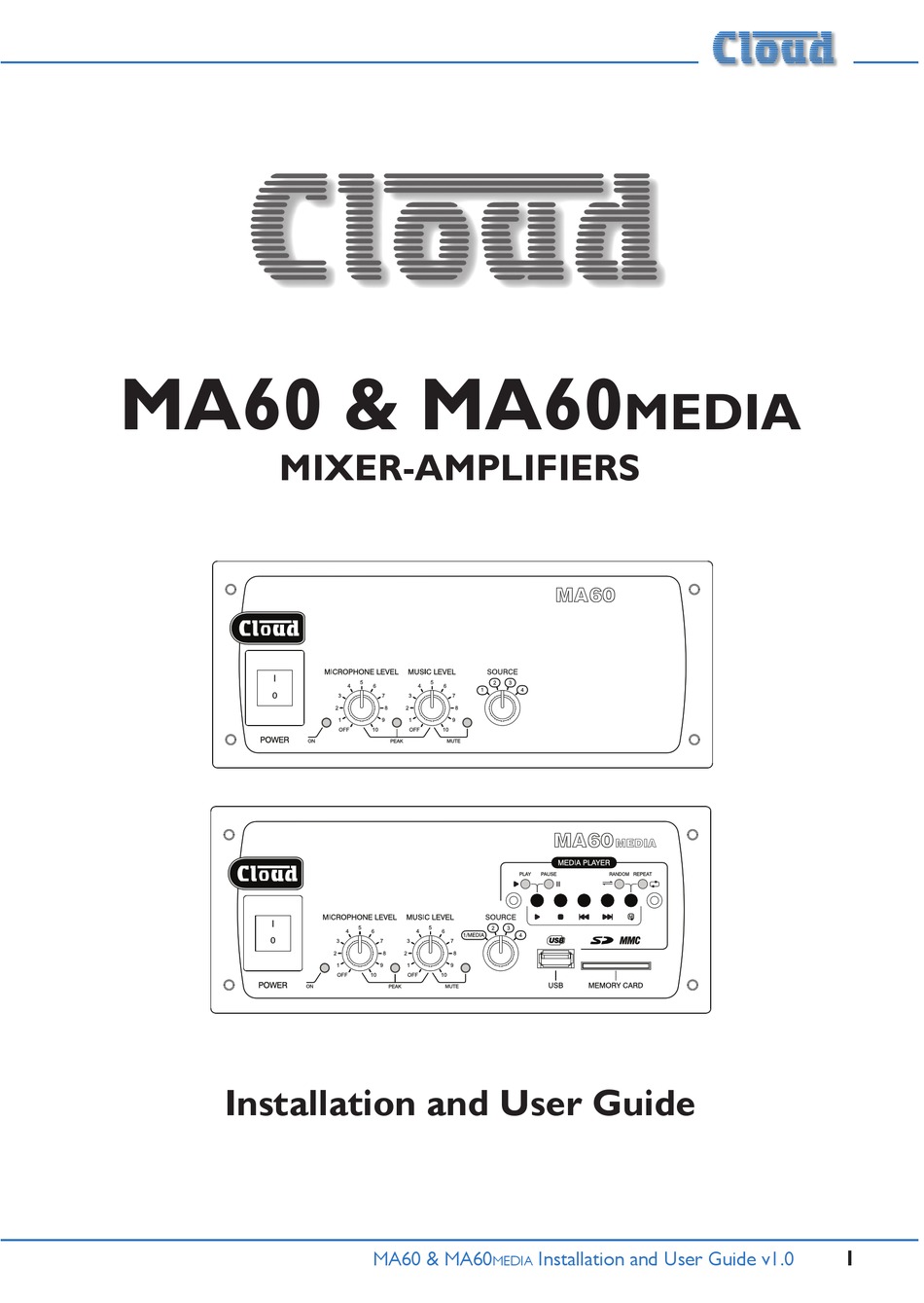

- Page 1 MA60 & MA60 media MIXER-AMPLIFIERS Installation and User Guide MA60 & MA60 Installation and User Guide v1.0 media...
- Page 2 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. MA60 & MA60 Installation and User Guide v1.0 media...
- Page 3 The external wiring connected to these terminals requires installation by an instructed person or the use of pre-made leads or cords. MA60 & MA60 Installation and User Guide v1.0 media...
-
Page 4: Table Of Contents
Safety Considerations and Information ..........7 CAUTION – High Voltages ............... 7 CAUTION - Mains Fuses ..............7 CAUTION – Servicing ............... 7 General Description ............8 MA60 and MA60 main features ..........8 media Applicable Models ..................9 What’s in the Box ..................9 Block diagram ............. - Page 5 Table of internal jumpers and default settings ......31 General Notes ..................32 Multi-zone applications ..............32 EMC considerations ................33 Earthing ....................33 Technical specifications ................. 34 General specifications ................35 MA60 & MA60 Installation and User Guide v1.0 media...
-
Page 6: Safety Information
The product conforms to the following European electrical safety standard. BS EN 60065:2002 (+A2:2010) The MA60 and MA60 mixer-amplifiers have been developed and manufactured media with high quality materials and components, which can be recycled and/or re-used. -
Page 7: Safety Considerations And Information
Note that the failure of the mains fuse may indicate an internal fault. If a replacement fuse fails immediately the power is restored, no further attempt should be made to use the mixer-amplifier, and it should be returned to your Cloud service centre or other qualified person for repair. -
Page 8: General Description
Licensed Premises, Retail, Leisure and many other venues. The units can deliver 60 W (mono) into 4 W loads; a transformer option is available for driving 100 V, 70 V or 50 V-line loudspeaker systems. The MA60 has an integral digital... -
Page 9: Applicable Models
What’s in the Box Please check the shipping carton for damage before opening. If there is damage, please contact your Cloud agent and the shippers. The packing carton should contain the following items: •... -
Page 10: Block Diagram
SOURCE SELECT CONNECTOR PRE-OUT - VE LINE 3 RSL-4/RL-1 OPTIONAL REMOTE FRONT PANEL SOURCE AND LEVEL LINE 4 RELEASE TIME LINE 4 MUSIC SOURCE AND 12s-NO JUMPER PRIORITY LEVEL CONTROLS ON/OFF MA60 & MA60 Installation and User Guide v1.0 media... -
Page 11: Front Panel Description
6. MUTE LED – illuminates when external Music Mute control is active 7. MUSIC SOURCE – rotary switch selecting music source (LINE 1* to LINE 4) The following front panel items are only fitted to the MA60 media 8. USB port – for connection of USB memory device containing audio files 9. -
Page 12: Rear Panel Description
12. MOH/UTILITY MUSIC LEVEL – sets level of music at MOH/UTILITY OUT 13. PRE OUT – balanced line level output for connection of additional external amplifiers, etc. 14. MUSIC MUTE – Emergency control input for muting music source MA60 & MA60 Installation and User Guide v1.0 media... - Page 13 17. EXT. STANDBY – for remote power-down by PIR sensor or other external control equipment 18. IEC mains input 19. Mains fuse The following rear panel item is only fitted to the MA60 media 20. MEDIA/L1 switch – selects Line 1 input to be external source or internal media player MA60 &...
-
Page 14: Installation
19” media rack, rackmount kits (available from Cloud) must be fitted. Two types of rackmount kit are available: one for mounting a single unit, the other for mounting two MA60/ MA60 units side-by-side. See below for mounting instructions. -
Page 15: Rackmounting Two Units
Fit one of the rack ears to the left-hand side of one of the MA60s as shown in the diagram below, using four of the screws provided. Repeat Step 1 for the right-hand side of the other MA60 unit. Remove the two raised-head, hex-socket M4 screws at the right-hand side of the front panel of the first unit, and the corresponding two screws on the left-hand side of the front panel of the second unit. -
Page 16: Ventilation
Ventilation MA60 and MA60 mixer-amplifiers are cooled by natural convection, via vents in media the top and bottom panels. Always allow adequate space around the unit(s) to allow a free flow of air. In 19” rack installations we recommend leaving 1U of rack space above and below each unit. - Page 17 Remote Control of Music Source Select and Level The MA60 and MA60 mixer-amplifiers are compatible with standard Cloud media remote control plates types RSL-4/RSL-4A (music source select and level) and RL-1/ RL-1A (level only). Either type of unit may be connected at the rear 3-pin 5 mm-pitch screw terminal connector , using the wiring shown below.
-
Page 18: Mic Input
By default, the mic input has automatic priority over the music source. It is also compatible with paging microphones with zone selection by contact closure such as the Cloud PM range, including the PM1 single- zone microphone. See “Paging control” on page 19 for more details. - Page 19 (It is recommended that J14 is left attached to one pin of the header in case a different setting is needed in the future.) MA60 & MA60 Installation and User Guide v1.0...
-
Page 20: Outputs
OFF. See “PCB layout diagrams” on page 30 for further information regarding the internal jumpers. Paging via a telephone system The mic input on the MA60/MA60 may be reconfigured to accept an audio input media directly from a compatible telephone system. This permits announcements to be made from some (or any) internal telephone extensions in a building. - Page 21 100/70/50 V-line systems An optional transformer kit (CXL-60T) is available for the MA60/MA60 , to media permit the unit to directly drive 100 V, 70 V or 50 V-line loudspeaker systems. The transformer is rated at 50 W output, and is mounted internally. The outputs are available on a 4-pin 5 mm-pitch screw-terminal connector which occupies the hole in the rear panel normally covered by a blanking plate.
- Page 22 10. Connect the speaker system to the line outputs using the mating connector. Note that only two of the pins will be used; one will always be pin 1 (0 V). MA60 & MA60 Installation and User Guide v1.0 media...
- Page 23 Important - Note that the low-impedance output should not be used once the line output transformer is fitted. Once the transformer is fitted, it is strongly recommended that the MA60/ MA60 ’s 65 Hz high pass filter is set ON by moving internal jumper J13. This is media to minimise distortion due to transformer saturation at low frequencies.
- Page 24 J6. Any of the four line inputs, or the alternative Line 2 MP3 input , may be selected as the fixed MOH music source. See “PCB layout diagrams” on page 30 for further information regarding the internal jumpers. MA60 & MA60 Installation and User Guide v1.0 media...
-
Page 25: Music Mute Input
In some installations (such as licensed premises or retail outlets within a shopping mall), there may be a local authority or fire service requirement to mute the music signals from a fire alarm control panel when an alarm condition arises. The MA60/ MA60 includes a facility to mute the music programme only (i.e., the mic input... -
Page 26: Ext Standby Input
Music Mute command. Activation of the Music Mute is often via a relay mounted close to the MA60/ MA60 and any associated equipment, powered by the fire alarm control panel. -
Page 27: Ma60 Media Digital Media Player
VBR. Sample rates supported are: 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz and 48 kHz Both types of audio file may be present on the memory device; the MA60 will media not differentiate between them in any way. -
Page 28: Normal Mode
This makes it very simple to pre-ordain track playing order; if the tracks are given filenames beginning “01”, “02”, etc., they will be always be played in that order in Normal Mode. MA60 & MA60 Installation and User Guide v1.0 media... -
Page 29: Repeat Mode
Appendix Installation of speaker EQ cards The MA60 and MA60 are compatible with single channel loudspeaker media equalisation modules. EQ modules are available from Cloud Electronics to suit the following Bose and Amina loudspeakers: ® Bose: Panaray MA12 Panaray 402-II, 502B and 502BEX Panaray LT Series: Models 3302, 4402, 9402 and 9702. -
Page 30: Installation Instructions
Replace the top panel. PCB layout diagrams The MA60 and MA60 have two PCBs which are fitted with jumpers, the Main media PCB and the Input PCB. With the top cover removed from the unit, and the rear... -
Page 31: Table Of Internal Jumpers And Default Settings
(REMOVE J11 FOR 12S) J12A&B MA60 INPUT PCB VIEW FROM FRONT NOT TO SCALE - Only primary components shown Table of internal jumpers and default settings JUMPER ON PCB PURPOSE OPTIONS DEFAULT Main Mic input phantom power ON/OFF Main Main... -
Page 32: General Notes
To avoid any problems associated with differences in mains supply earthing, we recommend that all MA60/MA60 s used in a multi-zone application should be media co-located and connected to a common mains supply. -
Page 33: Emc Considerations
HF disturbance such as high power communication transmitters, radar stations and the like, it is suggested that input signal leads be kept as short as possible. Always use balanced interconnections wherever possible. If the MA60/MA60 mixer-amplifier is mounted in a 19” rack, media do not locate the unit in close proximity to a powerful amplifier of any kind, which may radiate a strong magnetic field from the power transformer. -
Page 34: Technical Specifications
Equalisation HF: ±10 dB/5 kHz LF: ±10 dB/100 Hz Dynamic level signal limiter max gain reduction of 20 dB, thermal protection, Protection IV limiting & short circuit protection, switch on delay MA60 & MA60 Installation and User Guide v1.0 media... -
Page 35: General Specifications
Convection cooled, vents top and bottom. Dimensions (mm) 213.0 wide x 88 high (2U) x 278 deep (+ connectors & knobs) 4.65 kg (with CXL-60T transformer) Net weight 3.5 kg (without CXL-60T transformer) MA60 & MA60 Installation and User Guide v1.0 media... - Page 36 Cloud Electronics Limited 140 Staniforth Road Sheffield S9 3HF England Tel: +44 (0)114 244 7051 Fax: +44 (0)114 242 5462 email: info@cloud.co.uk web: www.cloud.co.uk...
