Planet ENW-9801 Installation Manual

PCI Express 10 Gigabit Ethernet
Adapter
Quick Installation Guide Version 2.0

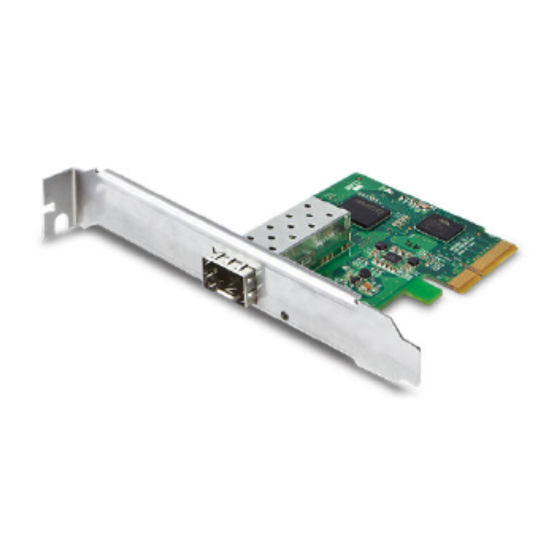

Thank you for purchasing PLANET ENW-9801 PCI
Express 10 Gigabit Ethernet adapter. It supports x4,
x8, x16 PCI Express interfaces. The 10 Gigabit Ethernet
adapter provides a highly cost-effective solution to
upgrading to the 10 Gigabit network with your existing
Ethernet infrastructures.

Operation System Support:

 Windows Server 2008R2 64bits
 Windows Server 2012 64bits
 Windows 7 32 / 64bits
 Windows 8 32 / 64bits
 Linux (2.6x to 3.8.0)
- 1 -

Package Contents

ENW-9801 x 1
Low Profile Bracket x 1
Quick Installation Guide x 1 User's Manual CD x 1
- 2 -

Hardware Installation

Step 1: Please turn off your PC.
Step 2: Remove any metal decorations from your
hands and wrists.
Step 3: Remove the cover from your PC.
Step 4: Locate an empty PCI Express slot and remove
the corresponding back plate. Save the screw
for use in Step 6.
- 3 -
Step 5: Carefully insert the 10 Gigabit Ethernet Adapter
into the chosen slot and press firmly with
proper push to ensure it is fully seated in the
slot.
Step 6: Secure the 10 Gigabit Ethernet Adapter with
the screw you saved in Step 4.
Step 7: Replace the PC cover.
Step 8: Power on your PC and refer to the next section
to install driver.
- 4 -

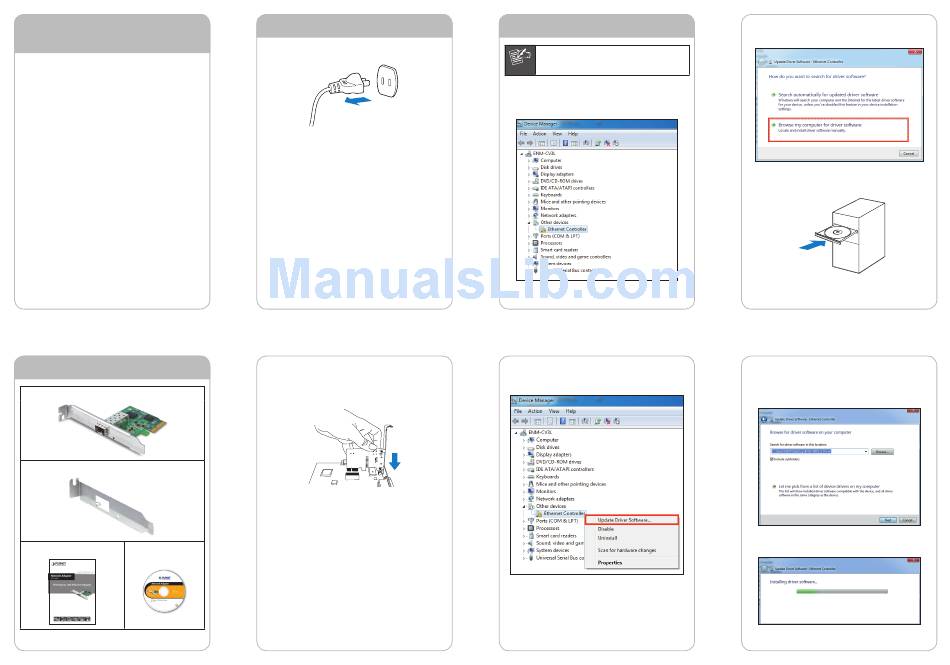

Installation on Windows 7

This operation is under Win7 which it is
similar to Windows Server 2008.
Note
1. After installing the ENW-9801 to your PC and booting
it up, Windows 7 will detect it and you have to install
driver.
- 5 -
2. Please move and right-click the mouse button for
Ethernet Controller item and select "Update Driver
Software".
- 6 -
3. Please select "Browse my computer for driver
software" for the next step.
4. Insert the bundled CD into the CD-ROM driver.
- 7 -
5. Please click "Browse" to specify the driver location
to install. (Assume "E" is your CD-ROM drive, the
driver can be found in E:\DR-ENW-9801v2 Driver).
Click "Next" to continue.
The driver is being installed.
