Bogen UDMS800BP Technical Specifications

UHF Wireless
Microphone Systems
UDMS800BP, UDMS800HH
These UHF Wireless Microphone Systems offer users the
freedom to move around while speaking. System choices
consist of a 800-channel PLL-synthesized UHF Receiver with
either a handheld microphone or lavaliere microphone and
body-pack transmitter. Headset microphone also available.
UBP800
Body-Pack w/Lavaliere Microphone
• Audio mute switch allows convenient audio muting while
leaving the transmitter "ON"
• LED indicator: Unit "ON", and "Low Battery Alert"
• Locking 3.5mm mini-jack provides secure connection for
removable microphone
• Convenient, economical operation with AAA alkaline
or NiMH batteries (2x)
• 2-1/4" W x 3-3/8" H x 1" D; antenna 3-3/4"; 2.8 oz. (without batteries)
• Lavaliere Mic: 4 ft. long cord; 0.6 oz.
UHT800
Handheld Microphone
• Sleek metal housing with internal antenna
for optimum aesthetics and durable long life
•Uni-directional neodymium dynamic cartridge
for optimum sound, maximum feedback rejection,
and minimal handling noise
• Audio mute switch allows convenient audio muting while
leaving the transmitter "ON"
• LED indicator: Unit "ON", and "Low Battery Alert"
• Convenient, economical operation with AA alkaline
or NiMH batteries (2x)
• 9-1/8" long x 2" dia. ; 10 oz. (without batteries)

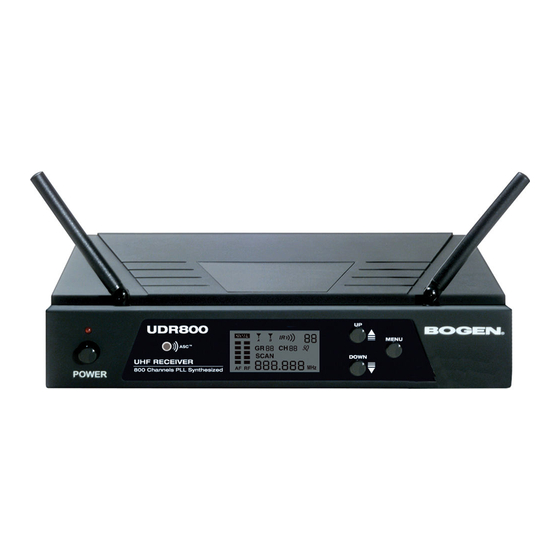

UDR800
800-Channel
PLL-Synthesized UHF Receiver
• Offers 800 user-selectable frequencies in UHF 470-490 MHz band;
120 dB dynamic range; operation up to 500 feet line-of-sight
• DigiTRU Diversity™ for maximum range and dropout protection,
full LED indicators, 1/4" unbalanced and XLR balanced outputs,
Tone Squelch™ for locking out potential interference, noiseless
transmitter ON/OFF switching, & level control for unbalanced output
• Half-rack receiver design with front panel dual antennas,
powered by wall power adapter
• 8" W x 1-5/8" H x 5-1/8" D; antenna 2-3/4"; 1 lb.
(UBP800 Body-Pack
A C C E S S O R I E S
BCHM
Headset
Microphone
Microphone
required)
(for UHT800)
UDR800
UDR800
MC28
RPK89
Clip
Rack Mount
(Single Unit)
UBP800
UDMS800BP
includes:
• UBP800 Body-Pack
& Lavaliere Mic
• UDR800 UHF Receiver
UDMS800HH
includes:
• UHT800 Handheld Mic
• UDR800 UHF Receiver
UHT800
RPK90
Rack Mount
(Double Unit)
