Bogen BCLM1 Instruction Manual

Model
BCLM1
CONDENSER LAVALIER
MICROPHONE
INSTRUCTION MANUAL
Features:

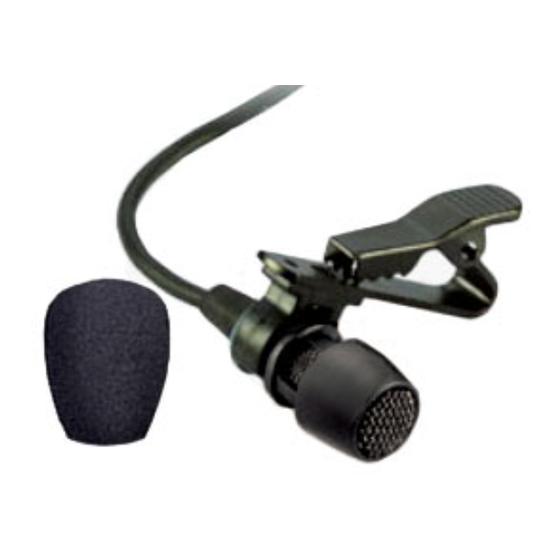

The Bogen BCLM1 Condenser Lavalier Microphone has a wide dynamic range and frequency
response that provides clean, accurate sound, and its unidirectional polar pattern ensures the
best gain before feedback.
User Instruction:
1. Attach the BCLM1 Lavalier Microphone to the proper position
on a user's wardrobe (Fig. 1).
2. Ensure the distance between the sound source and the BCLM1
is within 5" for optimal sound pickup.
3. Slip the windscreen onto the head of the BCLM1 Microphone
to reduce breath/popping noise (Fig. 3).
Specifications:
Frequency Response, Magn dB re 10.00V/Pa
1"
*0dB = 10V/Pa
LESS THAN 5"
Unidirectional
MINI 4P XLR
100 ~ 12,000 Hz
60"
2.2k Ohm
-70 dB* + /- 3 dB
130 dB
Clip, Windscreen
Unidirectional
Frequency Response, Magn dB re 10.00V/Pa
*0dB = 10V/Pa
Frequency Response, Magn dB re 10.00V/Pa
1.85"
1"
LESS THAN 5"
(Fig. 1)
(Fig. 2)
LESS THAN 5"
Unidirectional
MINI 4P XLR
(Fig. 3)
100 ~ 12,000 Hz
2.2k Ohm
-70 dB* + /- 3 dB
130 dB
Clip, Windscreen
1"
www.bogen.com
60"
