  • Page 1: Configuration 5. Station Level/Centrex - 3-Zone - One-Way Paging - Single Amplifier - 25/70V Ac Speakers Setup Drawing

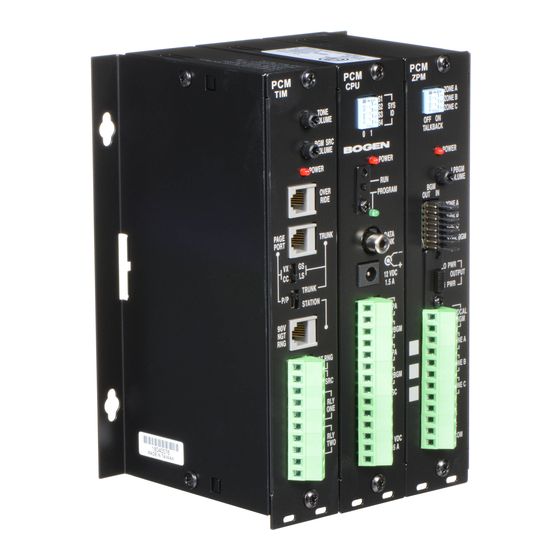

    PCM2000 Configuration Guide Downloaded from: http://www.guardianalarms.net...

  • Page 2: Table Of Contents

    Contents SECTION I - APPLICATON CONFIGURATIONS...4-33 Configuration 1. Page Port Contact Closure - 3-Zone - One-Way Paging - Single Amplifier - 25/70V AC Speakers Setup Drawing...4 Description ...5 Configuration 2. Page Port VOX Circuit - 3-Zone - One-Way Paging - Single Amplifier - 25/70V AC Speakers Setup Drawing...6 Description ...7 Configuration 3.

  • Page 3: Section I: Application Configurations

    SECTION I: APPLICATION CONFIGURATIONS SETUP FOR CONFIGURATION 1: PAGE PORT CONTACT CLOSURE - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS...

  • Page 4: Installation

    STEP 5: Connecting the Paging Amplifier • Locate the terminals on the PCMCPU module labeled PA IN/RT and wire to the TIP and Ring (T & R) input on the Bogen paging amplifi- er (either TPU-Series, GS-Series or Classic Series.) •...

  • Page 5: Configuration 2. Page Port Vox Circuit - 3-Zone - One-Way Paging - Single Amplifier - 25/70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 2: PAGE PORT VOX CIRCUIT - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS...

  • Page 6: Description

    CONFIGURATION 2: PAGE PORT VOX CIRCUIT - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS This configuration is for Page Ports without Contact Closures. A dry audio pair connected to pins 3 & 4 of the TEL LINE jack on the PCMTIM module is used to detect audio and activate the system.

  • Page 7: Configuration 3. Loop Start Trunk - 3-Zone - One-Way Paging - Single Amplifier - 25/70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 3: LOOP START TRUNK - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS...

  • Page 8: Description

    Connect the power supply PCMPS2 to the PCMCPU module to either the power jack 12V DC input or wire it to the 12V DC screw terminals observing polarity. • Connect the Bogen amplifier to the AC power outlet (120V AC 60Hz). • Set the volume on your Bogen amplifier to a 1/2 turn.
  • Page 9 SETUP FOR CONFIGURATION 4: GROUND START TRUNK - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS...

  • Page 10: Description

    Connect the power supply PCMPS2 to the PCMCPU module to either the power jack 12V DC input or wire it to the 12V DC screw terminals observing polarity. • Connect the Bogen amplifier to the AC power outlet (120V AC 60Hz). • Set the volume on your Bogen amplifier to a 1/2 turn.
  • Page 11 SETUP FOR CONFIGURATION 5: STATION LEVEL/CENTREX - 3-ZONE - ONE-WAY PAGING - SINGLE AMPLIFIER - 25/70V AC SPEAKERS...
  • Page 12 Connect the power supply PCMPS2 to the PCMCPU module to either the power jack 12V DC input or wire it to the 12V DC screw terminals observing polarity. • Connect the Bogen amplifier to the AC power outlet (120V AC 60Hz). • Set the volume on your Bogen amplifier to a 1/2 turn.
  • Page 13 SETUP FOR CONFIGURATION 6: EXTENDED PAGING SYSTEM...
  • Page 14 • Locate the terminals on the PCMCPU modules labeled PA IN/RT and wire to the TIP and RING input on the Bogen paging amplifier.At this point, the amplifier is connected in parallel to the master PCMCPU module and the satellite PCMCPU module.
  • Page 15 SETUP FOR CONFIGURATION 7:TWO-WAY TALK BACK PAGING SYSTEM...
  • Page 16 Bogen paging amplifier (either TPU-Series, GS-Series or Classic Series). • Locate the terminals on the PCMTBM module labeled PA IN/RT and wire to the TIP and RING input on the Bogen paging amplifier. STEP 6: Connecting 25/70V AC Speakers •...
  • Page 17 SETUP FOR CONFIGURATION 8:TWO-WAY TALK BACK EXTENDED PAGING SYSTEM...
  • Page 18 Bogen paging amplifier (either TPU-Series, GS-Series or Classic Series). • Locate the terminals on the PCMTBM module labeled PA IN/RT and wire to the TIP and RING input on the Bogen paging amplifier. STEP 6: Connecting 25/70V AC Speakers •...

  • Page 19: Configuration 9. 3-Zone - One-Way Paging - Low-Power System - Dedicated Amplifiers Or Self-Amplified Speakers Setup Drawing

    SETUP FOR CONFIGURATION 9: 3-ZONE - ONE-WAY PAGING - LOW-POWER SYSTEM - DEDICATED AMPLIFIERS OR SELF-AMPLIFIED SPEAKERS...
  • Page 20 CONFIGURATION 9: 3-ZONE - ONE-WAY PAGING - LOW-POWER SYSTEM - DEDICATED AMPLIFIERS OR SELF-AMPLIFIED SPEAKERS Low-Power System is a switch-selectable feature that allows the system designer to use dedicated amplifiers or self-amplified speakers on the zone outputs.The PCMZPM module that is to be used as a low-power module will switch only low-level signals to the zone outputs for use with dedicated amplifiers or self-amplified speakers.

  • Page 21: Configuration 10. 6 Zones - One-Way Paging - Mixed High- And Low-Power Zones - 25/70V Ac Or Self-Amplified Speakers Setup Drawing

    SETUP FOR CONFIGURATION 10: 6 ZONES - ONE-WAY PAGING - MIXED HIGH- AND LOW-POWER ZONES - 25/70V AC OR SELF-AMPLIFIED SPEAKERS...

  • Page 22: Description

    Connect the power supply PCMPS2 to the PCMCPU module to either the power jack 12V DC input or wire it to the 12V DC screw terminals observing polarity. • Connect the Bogen amplifiers to the AC power outlet (120 V AC 60Hz). • Set the volume on your Bogen amplifiers to a 1/2 turn.

  • Page 23: Configuration 11. Microphone Override Setup Drawing

    SETUP FOR CONFIGURATION 11: MICROPHONE OVERRIDE...

  • Page 24: Description

    Do not use the white and green wires from the MBS1000 or DDU250 unless you want to use them instead of the normally open con- tacts on the VAR1. • Connect a 6-pin RJ11 modular cable between the RJ11 modular jack (previously attached to the wall next to the PCM2000) and the Override RJ11 input on the PCMTIM module. •...
  • Page 25 SETUP FOR CONFIGURATION 12: DFT120 & TAMB WIRING DIAGRAM - LOOP START TRUNK, GROUND START TRUNK OR STATION LEVEL...

  • Page 26: Description

    In this configuration, the telephone output is connected to the Bogen Telephone Access Module model TAMB; the TAMB module is connected to the Bogen Digital Feedback Terminator model DFT120; and the DFT120 is connected to the PCM2000 system. The TAMB module is acti- vated by the telephone system and, at the same time, the DFT120 is activated by the TAMB’s normally open contacts.
  • Page 27 SETUP FOR CONFIGURATION 13: EMERGENCY VOICE ANNOUNCEMENT OVERRIDE...
  • Page 28 STEP 3: Connecting Optional Equipment • Attach a 6-pin RJ11 modular jack to the wall next to the PCM2000 unit. • Connect the audio output from the ProHold labeled Line 600 using the supplied RCA cable to the RJ11 modular jack terminals Y (yel- low) and BK (black).

  • Page 29: Setup Drawing Description Configuration 14. Dtmf Microphone Zone Paging Setup Drawing

    SETUP FOR CONFIGURATION 14: DTMF MICROPHONE ZONE PAGING...

  • Page 30: Operation

    This section will describe the configuration for the use of a Shure microphone Model 885TT with DTMF dialing capabilities and the MODULINK five- conductor coil-cord model ALM- 1 . In addition to the PCM2000 system and associated amplifiers, the model numbers and components required for this configuration are: 1- Shure Microphone model 885TT...

  • Page 31: Configuration 15. Single Amplifier Background Music Line-Level Signal Setup Drawing

    STEP 4:Testing the System • Access the PCM2000 system (either use a single 2500-series line telephone or butt set or dial the paging access number from the tele- phone system).You will hear 3 beep tones indicating access to the programming mode.

  • Page 32: Configuration 16. Relay Driver Output Setup Drawing

    CONFIGURATION 16: SUPRESSION DIODES Each PCMZPM module has three relay driver outputs - RD A, RD B, and RD C - one for each speaker zone. When a zone is activated, its relay driver is shorted to RD COM through an open collector transistor.These drivers can be used to activate external relays to provide greater power capacity or to operate external equipment.The power supply for these relays must be 12V DC or less.The total sink current per driver can not exceed 100mA.

  • Page 33: Section Ii - Programming

    1. Remove the switch lock on the PCMCPU module and place the PROGRAM/RUN switch to the PROGRAM position (down).The green LED will illuminate. 2. Access the PCM2000 system (either use a single 2500-line telephone or butt set or dial the paging access number from the telephone sys- tem).

  • Page 34: Feature Codes And Defaults Chart

    Feature Feature Code Privacy Beep Inhibit Enable Pre-announce Tone Inhibit Beep Chime Confirmation Tone Inhibit Enable Emergency O/R Tone Inhibit Enable All-Call Inhibit Enable Dialing Time-out Inhibit Enable Trunk Disconnect Inhibit Enable 1 Amp BGM Inhibit Enable Default Timer VOX Timer Zone Group EM/SC Zone Group...
  • Page 35 Clock Set Clock Sync. Inhibit Enable Time Trigger 1 Zone Group Inhibit Enable 2-Second Tone 3-Second Tone 4-Second Tone 5-Second Tone 6-Second Tone 7-Second Tone 8-Second Tone Chime Time Trigger 2 Zone Group Inhibit Enable 2-Second Tone 3-Second Tone 4-Second Tone 5-Second Tone 6-Second Tone 7-Second Tone...
  • Page 36 Time Trigger 6 Zone Group Inhibit Enable 2-Second Tone 3-Second Tone 4-Second Tone 5-Second Tone 6-Second Tone 7-Second Tone 8-Second Tone Chime Time Trigger 7 Zone Group Inhibit Enable 2-Second Tone 3-Second Tone 4-Second Tone 5-Second Tone 6-Second Tone 7-Second Tone 8-Second Tone Chime Time Trigger 8...

  • Page 37: Sys-Id Switch Settings Chart For Additional Satellite Systems

    SYS-ID SWITCH SETTINGS CHART FOR ADDITIONAL SATELLITE SYSTEMS Zone #’s Master Satellite 10-18 19-27 28-36 37-45 46-54 55-63 64-72 73-81 82-90 91-99 APPENDIX SCREW CLAMP TAB & SLOT Module Assembly LOCKING LOCKING LOCKING SLOT ALIGN CONNECTORS SO LOCKING RIDGE FACES HEADER WALL ALIGN POLARIZING...
  • Page 38 50 Spring Street, Ramsey, NJ 07446 U.S.A. Tel. 201-934-8500 / Fax 201-934-9832/ www.bogen.com...
