UDMS800HH
UDMS800HH
UDMS800HH
WIRELESS MICROPHONE SYSTEM
Handheld Uni-directional
Microphone w/ UHF Receiver
INSTRUCTION MANUAL
Specifications are subject to change without notice.
UDMS800BP
UDMS800BP
UDMS800BP
UDMS800B
WIRELESS MICROPHONE SYSTEM
Body-Pack & Lavaliere
Microphone w/ UHF Receiver
1111 54-2203-01C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UDMS800HH and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen UDMS800HH

Summary of Contents for Bogen UDMS800HH

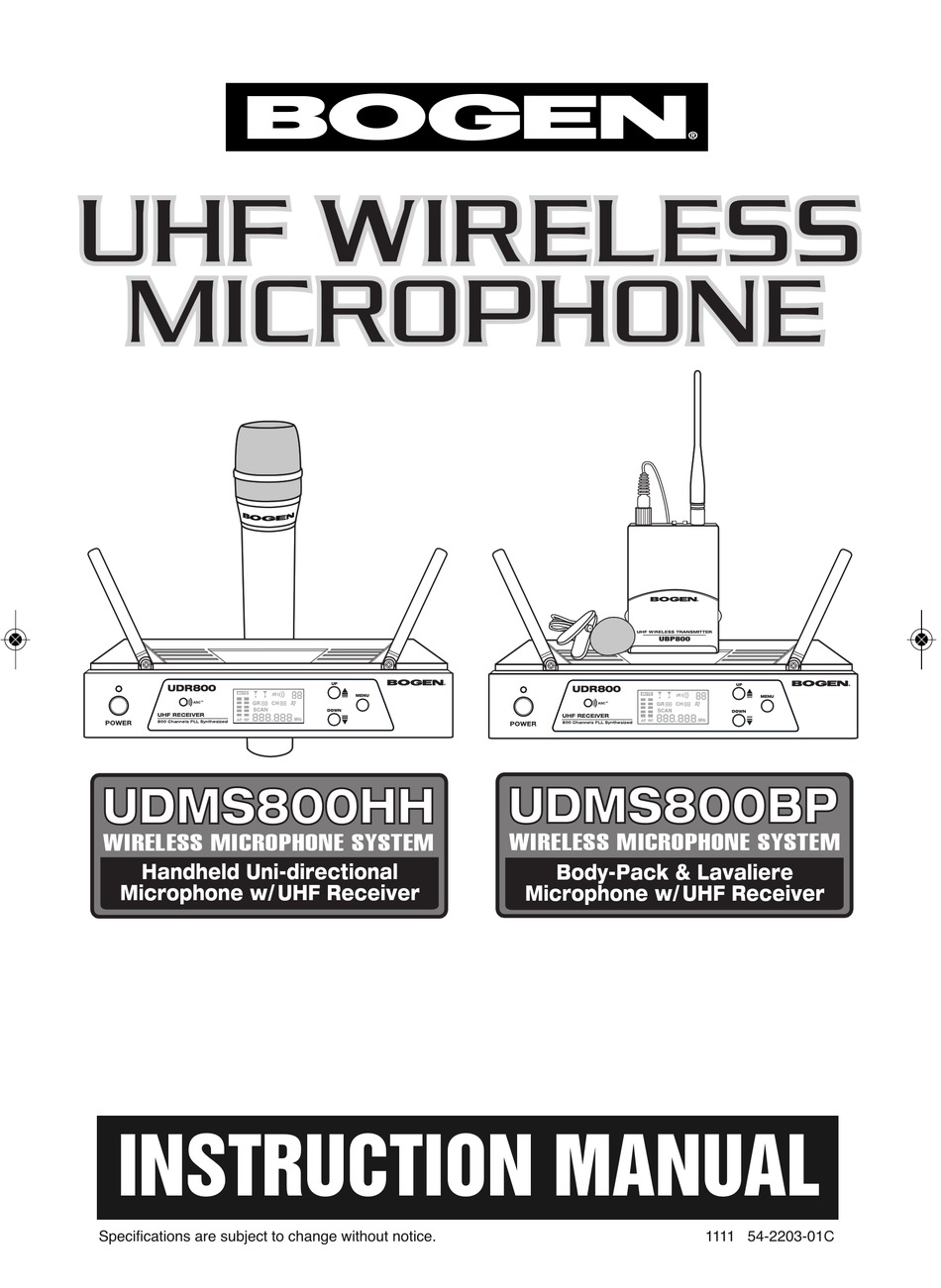

  • Page 1 UDMS800HH UDMS800BP UDMS800BP UDMS800BP UDMS800B UDMS800HH UDMS800HH UDMS800HH WIRELESS MICROPHONE SYSTEM WIRELESS MICROPHONE SYSTEM Handheld Uni-directional Body-Pack & Lavaliere Microphone w/ UHF Receiver Microphone w/ UHF Receiver INSTRUCTION MANUAL Specifications are subject to change without notice. 1111 54-2203-01C...
  • Page 2 This Page Intentionally Left Blank.

  • Page 3: Table Of Contents

    SPECIFICATIONS ..................14 LIMITED WARRANTY ..................15 INTRODUCTION Thank you for purchasing a Bogen UHF PLL Synthesized Microphone System. This system includes high quality professional operating features and is the best performance and price value available in UHF PLL Synthesized wireless systems.

  • Page 4: System Features

    SYSTEM FEATURES UDR800 RECEIVER • Unsurpassed state-of-the-art PLL UHF performance with 120 dB dynamic range and operation, up to 500 ft. (line-of-sight) • 800 user-selectable UHF frequencies, one touch Auto-Scan/Sync open channel automatic selection and sync • ASC™ (Auto-Sync Channels) download feature sends selected Channel information to transmitter via IR sender for easy frequency synchronization •...

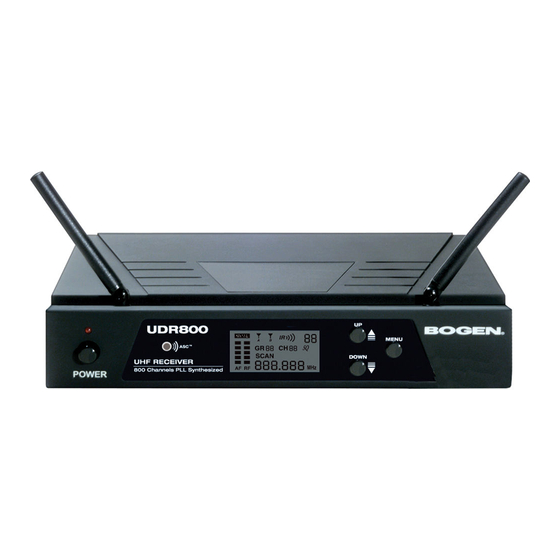

  • Page 5: Udr800 Receiver

    UDR800 RECEIVER 1. Rack Mounting the Receiver There are 2 options available (as accessories) for rack mounting the UDR800 receiver: single or side-by-side with another UDR800 receiver. A. Single Mounting (RPK89): Remove the receiver SIDE MOUNT CLIPS (1) from each side of the receiver (as shown) and slide in the optional wider RACK EARS (2).

  • Page 6: Audio Level And Peak Led Indicator

    UDR800 RECEIVER 5. Audio Level and Peak LED Indicator The UDR800 receiver has a 5-bar AF LCD (18) display that indicates normal level audio signal from the transmitter. Occasional flickering of the fifth AF LCD (peak level) on loud inputs to the transmitter is normal.
  • Page 7 UDR800 RECEIVER REAR VIEW 5. UNBALANCED LINE OUT 10. POWER LED INDICATOR 1/4” JACK 11. FOLDING ANTENNAS 6. DC INPUT JACK 12. ASC/IR LED INDICATOR 7. UNBALANCED OUT 13. UP BUTTON VOLUME CONTROL 14. MENU BUTTON 8. BALANCED MIC OUT 15.

  • Page 8: Uht800 Handheld Microphone Transmitter

    UHT800 HANDHELD MIC TRANSMITTER 1. Microphone Battery Installation Install batteries by unscrewing the BATTERY COMPARTMENT COVER (29) counterclockwise and remove, exposing the BATTERY HOLDER (38). Insert two fresh AA ALKALINE BATTERIES (32), observing the correct polarity, and screw the cover back on to the microphone. Make sure the cover is screwed clockwise completely.
  • Page 9 UHT800 HANDHELD MIC TRANSMITTER UHT800 29. BATTERY COVER 30. MIC BALL/ANTENNA 31. AUDIO INPUT LEVEL 32. TWO AA BATTERIES 33. POWER ON LED 34. LOW BATTERY LED 35. RF POWER SWITCH 36. AUDIO MUTE ON/OFF OFF OFF ON ON 37. IR RECEPTOR SENSOR/ WINDOW 38.

  • Page 10: Ubp800 Body-Pack Microphone Transmitter

    UBP800 BODY-PACK MIC TRANSMITTER 1. UBP800 Body-Pack Battery Installation Open the BATTERY DOOR (47) by pulling on side tabs and swinging the lid open. Insert two fresh AAA Alkaline Batteries into the BATTERY COMPARTMENT (46), observing the correct polarity. Fresh alkaline batteries can last up to 8 hours in use, but in order to ensure optimum performance, it is recommended that the batteries be replaced after 5-6 hours of use.
  • Page 11 UBP800 BODY-PACK MIC TRANSMITTER (Note: Observe care in selecting P.A. volume, transmitter location, and speaker placement so that acoustic feedback (howling and screeching) will be avoided. Please also note the pickup pattern characteristics of the microphone selected. Omni-directional mics pickup sound equally from all directions, and are prone to feedback if not used carefully.

  • Page 12: Selecting Group/Channel, Ir Programming, Multichannel

    SELECTING THE GROUP/CHANNEL, IR PROGRAMMING, AND SIMULTANEOUS MULTICHANNEL OPERATION (Note: The transmitter should be turned ON and ready for the IR communications with the receiver IR receptor for the following process.) (Note: If no button is pressed for a five second period during a selection, the program is terminated and the process needs to be repeated.) (Note: For normal operation, the transmitter should have the same channel as displayed on the receiver.)
  • Page 13 SELECTING THE GROUP/CHANNEL, IR PROGRAMMING, AND SIMULTANEOUS MULTICHANNEL OPERATION ing the UP BUTTON (13) or by pressing the MENU BUTTON (14) twice to IR MENU (IR icon will light up for IR function), then press the UP BUTTON (13) to start IR programming. •...

  • Page 14: Front Panel Lock-Out

    SELECTING THE GROUP/CHANNEL, IR PROGRAMMING, AND SIMULTANEOUS MULTICHANNEL OPERATION quencies). If there is any such interference in your location, select as many channels as you can using these 10 groups and then select additional open channels as needed (depending on number of systems to be operated simultaneously) from Groups 1B to 1F.

  • Page 15: Frequency Plan

    FREQUENCY PLAN BAND 1: UDR800 Frequency Listing for each Group from 11 to 1A (470.000MHz - 489.975MHz) FREQUENCY LISTINGS BAND 1: UDR800 Frequency Listing for each Group from 1B to 1F (470.000MHz - 490.000MHz)

  • Page 16: Specifications

    SPECIFICATIONS OVERALL SYSTEM PERFORMANCE Operating Frequency Range ....470 MHz-490 MHz (U.S.) Freq. Synthesized ..... . . (800 channels switchable) 25 kHz/step PLL System Frequency Stability .

  • Page 17: Limited Warranty

    State to State. Products that are out of warranty will also be repaired by the Bogen Factory Service Department – same address as above or call 201-934-8500. The parts and labor involved in these repairs are warranted for 90 days when repaired by the Bogen Factory Service Department.
  • Page 18 NOTES...
  • Page 19 NOTES...
  • Page 20 50 Spring Street, Ramsey, NJ 07446, U.S.A. Tel. 201-934-8500 • Fax: 201-934-9832 www.bogen.com...
