Bogen DDU250 Specifications

Bogen DDU250 Specifications

Bogen communications microphones specifications sheet

Advertisement

Quick Links

BOGEN MICROPHONES
Models HDU250, HDU150, HDO100, MBS1000A, DDU250, GCU250, GDU150,
MGN19, SCU250, WCU250
Introduction
Bogen's line of microphones come in a variety of types and styles (handheld, desktop, gooseneck, boundary, and overhead hanging) to meet any
and all application needs ranging from paging systems to instrument and vocal reproduction. Each is ruggedly constructed to withstand the
demands of sound installations.
Each microphone provides clear, natural, intelligible sound reproduction with accurate response and dependable performance. Bogen's
microphone models are crafted with professional-grade features, including models with rubberized grips; quiet on/off glide switches; dent-proof
screens; contemporary designs; and a variety of accessories including stands, mounting clips, windscreens, and cables.
Index
Handhelds (HDU250, HDU150, HDO100)..............................................................................................................................................................1-2
Desktops (MBS1000A, DDU250) ..............................................................................................................................................................................3
Goosenecks (GDU250, GCU150, MGN19) ............................................................................................................................................................4-5
Boundary (SCU250) ......................................................................................................................................................................................................6
Overhead (WCU250) ....................................................................................................................................................................................................6
Accessories ......................................................................................................................................................................................................................7
Architect and Engineer Specifications ........................................................................................................................................................................8
Description
The HDU250 is a dynamic microphone
ideal for acoustically-demanding envi-
ronments. It features a heavy zinc die
cast case with a rigid, low noise cable-
mount system and a lockable silent reed
switch. It has an extra low handling
noise,
floating,
shock-mounted
Neodymium capsule.
Features
• Cardioid pickup pattern
• High sensitivity Neodymium capsule
• High output design with excellent gain before feedback
characteristics
• High sound pressure capability without distortion and low
sensitivity to breath/pop noise
• Efficient shock-mount system reduces handling and cable noise
• Rugged, reliable construction
• Integral multi-layer breath/wind filter
• Low-impedance operation
• Lockable, silent on/off reed switch
• Includes mic clip
Frequency Response Graph
HDU250 - Professional Stage
Specifications
MIC Type:
Handheld
Element:
Moving coil dynamic
Polar Pattern:
Cardioid
Impedance:
250-ohm
50 Hz to 18 kHz
Frequency Response:
Sensitivity*:
-72 dB +/- 3dB
S/N Ratio:
>65 dB
Connector:
XLR Male
Switch:
With sliding-type on/off switch
(lockable, silent reed switch)
Dimensions:
7" D x 2" Dia.
13 oz.
Product Weight:
Material:
Zinc die cast
Finish:
Rubberized black finish
* (0dB=1V/ϻBAR 1,000 Hz indicated by open circuit)
Polar Graph
Specifications subject to change without notice.
54-5090-01E 1201
© 2003 Bogen Communications, Inc.

Advertisement

loading
Need help?

Need help?

Do you have a question about the DDU250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bogen DDU250

  • Page 1 Introduction Bogen’s line of microphones come in a variety of types and styles (handheld, desktop, gooseneck, boundary, and overhead hanging) to meet any and all application needs ranging from paging systems to instrument and vocal reproduction. Each is ruggedly constructed to withstand the demands of sound installations.
  • Page 2 HDU150 - Handheld Stage Description The HDU150 is an attractive, dynamic, all- purpose microphone ideally suited for a wide variety of vocal and sound reinforce- ment applications. Features • Cardioid pickup pattern • Crisp, clear sound • Wide dynamic range with high-end sparkle and minimum feedback •...

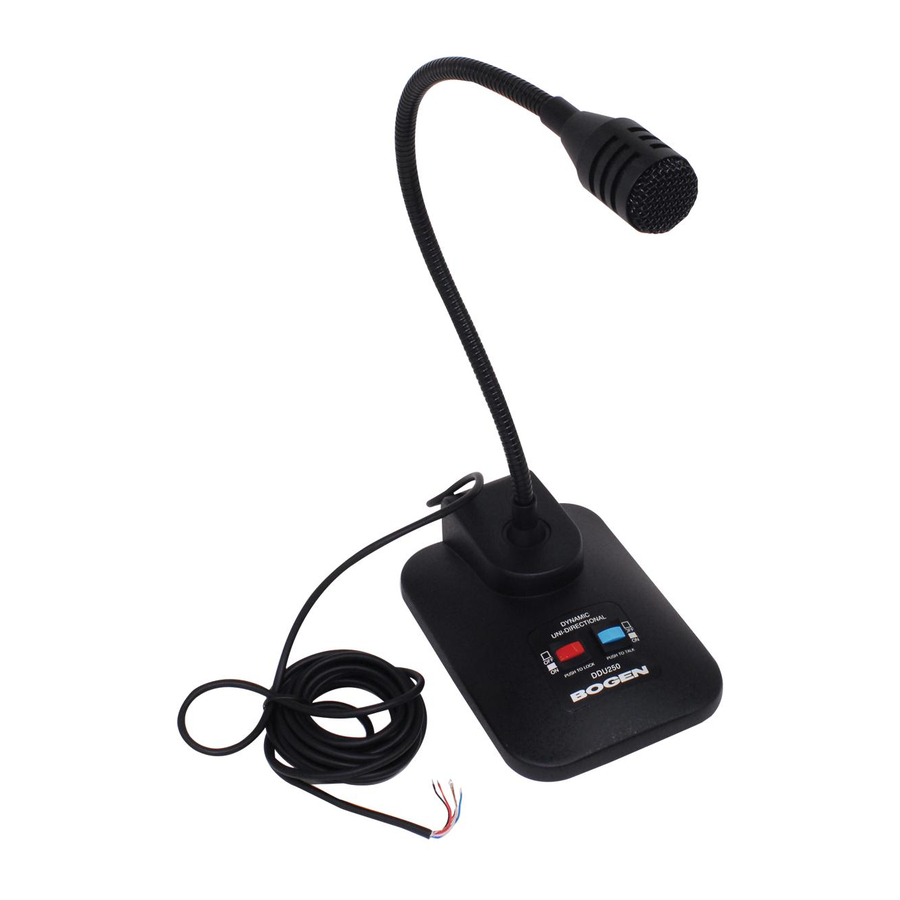

  • Page 3 * (0dB=1V/ϻBAR 1,000 Hz indicated by open circuit) Polar Graph Frequency Response Graph DDU250 - Dynamic Desktop Description The DDU250 is a high-quality, dynamic, gooseneck desktop micro- phone ideal for any podium or PA system. The gooseneck permits the user to adjust the microphone’s angle and height to suit the user’s needs.
  • Page 4 Frequency Response Graph GDU150 - Dynamic Gooseneck Description The GDU150 is a dynamic, gooseneck microphone that features a durable all- metal case with a non-glare black finish. It has a 10" long, fully flexible neck with an integral XLR mounting base.
  • Page 5 MGN19 - Dynamic Gooseneck Description The MGN19 is a push-button acti- vated, dynamic microphone that is ideal for paging and commercial applications. Features • Omni-directional pickup pattern • Push-to-talk switch on MIC housing • Rugged, reliable design for quality, long-term use under the most strenuous handling conditions •...
  • Page 6 SCU250 - Boundary Description The SCU250 is an unobtrusive, surface-mount, boundary, condenser microphone ideal for meeting rooms, conferences, and stage productions where minimum visibility is ideal. It requires an external 9V - 52V DC phantom power supply. Features • Cardioid pickup pattern •...
  • Page 7 • 12 oz. CLIPS MC27 - Handheld Clip • For handheld models • Black, flexible, impact-resistant plastic WINDSCREENS WSGCU250 - Windscreen for GCU250 • Foam windscreen for use with GCU250 microphone MC27 WSGCU250 XLR25 Accessories MOUNTS MSM - Shock-Isolated Microphone Base •...
  • Page 8 " D. Weight shall be 1- x 5- DDU250 - The microphone shall be a Bogen Model DDU250. It shall be a cardioid, dynamic desktop microphone with a frequency response of 100 Hz to 12 kHz and a 500-ohm impedance. The sensitivity shall be -76 dB (+/- 3dB) and the signal-to-noise ratio greater than 65 dB.
