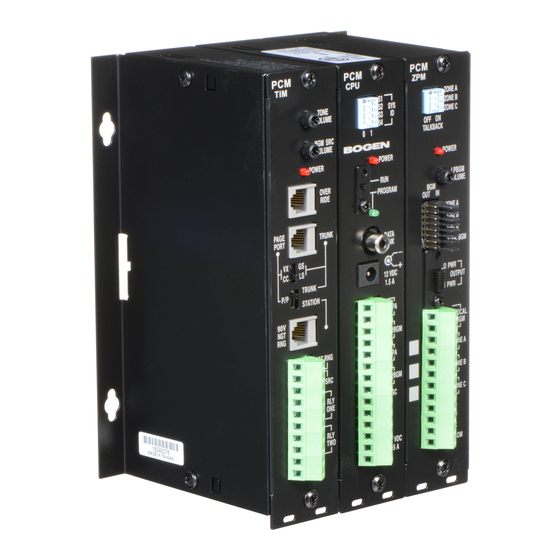

PCM2000
Configuration Guide
© 2012 Bogen Communications, Inc.
All rights reserved.
Specifications subject to change without notice.
54-5019-01C 1209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCM2000 and is the answer not in the manual?

Questions and answers

Related Manuals for Bogen PCM2000

Summary of Contents for Bogen PCM2000

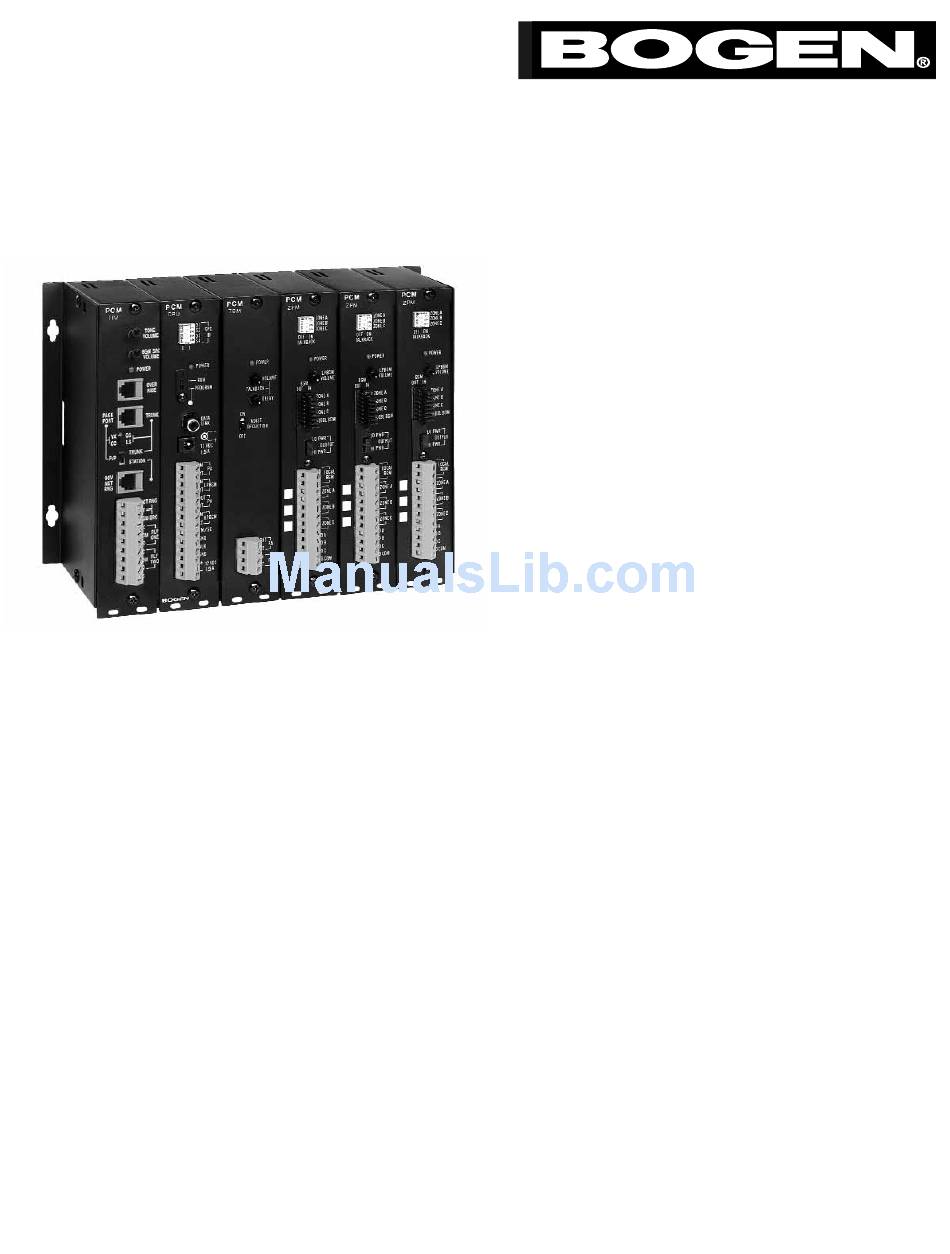

  • Page 1 PCM2000 Configuration Guide © 2012 Bogen Communications, Inc. All rights reserved. Specifications subject to change without notice. 54-5019-01C 1209...

  • Page 3: Table Of Contents

    Contents SECTION I - APPLICATION CONFIGURATIONS ..........................4-31 Configuration 1: Page Port Contact Closure/3-Zone/One-Way Paging/Single Amplifier/25 & 70V AC Speakers Setup Drawing..................................4 Description ....................................5 Configuration 2: Page Port VOX Circuit/3-Zone/One-Way Paging/Single Amplifier/25 & 70V AC Speakers Setup Drawing..................................6 Description ....................................7 Configuration 3: Loop Start Trunk/3-Zone/One-Way Paging/Single Amplifier/25 & 70V AC Speakers Setup Drawing..................................8 Description ....................................9 Configuration 4: Ground Start Trunk /3-Zone/One-Way Paging /Single Amplifier/25 &...

  • Page 4: Section I: Application Configurations

    SECTION I: APPLICATION CONFIGURATIONS SETUP FOR CONFIGURATION 1: PAGE PORT CONTACT CLOSURE / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS...

  • Page 5: Description

    CONFIGURATION 1: PAGE PORT CONTACT CLOSURE / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS In this configuration, the PCM unit responds to a contact closure on pins 2 & 5 of the TRUNK/PAGE PORT jack on the PCMTIM module shorting the +5V source to its ground. When the closure is removed, the page ends. Audio is provided to the system through a separate pair of leads on pins 3 &...

  • Page 6: Configuration 2: Page Port Vox Circuit/3-Zone/One-Way Paging/Single Amplifier/25 & 70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 2: PAGE PORT VOX CIRCUIT / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS...

  • Page 7: Description

    CONFIGURATION 2: PAGE PORT VOX CIRCUIT / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS This configuration is for Page Ports without Contact Closures. A dry audio pair connected to pins 3 & 4 of the TRUNK/PAGE PORT jack on the PCMTIM module is used to detect audio and activate the system. Paging ends when the VOX timer or default timer times out. Pins 1, 2, 5 &...

  • Page 8: Configuration 3: Loop Start Trunk/3-Zone/One-Way Paging/Single Amplifier/25 & 70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 3: LOOP START TRUNK / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS...

  • Page 9: Description

    CONFIGURATION 3: LOOP START TRUNK / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS In this configuration, the PCM unit supplies a 48V talk battery and loop current detection from pins 3 & 4 of the TRUNK/PAGE PORT jack on the PCMTIM module to the loop start trunk in the telephone system. There are two modes of operation for loop start trunk. (1) When the unit detects a loop resistance between TIP and RING, it activates.

  • Page 10: Configuration 4: Ground Start Trunk /3-Zone/One-Way Paging /Single Amplifier/25 & 70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 4: GROUND START TRUNK / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS...

  • Page 11: Description

    CONFIGURATION 4: GROUND START TRUNK / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS In this configuration, the PCM unit supplies a 48V talk battery and loop current detection from pins 3 & 4 of the TRUNK/PAGE PORT jack on the PCMTIM module to the ground start trunk in the telephone system. There are two modes of operation for ground start trunk. (1) When the ground start trunk grounds Ring, the unit responds by closing the connection to Tip, which completes the access proce- dure.

  • Page 12: Configuration 5: Station Level/Centrex/3-Zone/One-Way Paging/Single Amplifier/25 & 70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 5: STATION LEVEL/CENTREX / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS...

  • Page 13: Description

    CONFIGURATION 5: STATION LEVEL/CENTREX / 3-ZONE / ONE-WAY PAGING / SINGLE AMPLIFIER / 25 & 70V AC SPEAKERS In this configuration, the PCM unit responds to a 90V AC 20Hz ringing signal in pins 3 & 4 of the STATION/90V NGT RNG jack on the PCMTIM module and answers after the first full ring. As soon as it answers, the default timer is started. The default timer determines the maximum length of any page.

  • Page 14: Configuration 6: Extended Paging System Setup Drawing

    SETUP FOR CONFIGURATION 6: EXTENDED PAGING SYSTEM...

  • Page 15: Description

    CONFIGURATION 6: EXTENDED PAGING SYSTEM This illustration shows the wiring between a master assembly and a satellite assembly in a PCM system with a satellite assembly for one-way paging. The required setup for one-way basic configuration includes: PCMTIM, PCMCPU, PCMZPM, and the power supply PCMPS2. For PCM systems with satellites (more than 9 zones), the number of modules and power supplies will increase as follows: # ZONES # PCMTIM...

  • Page 16: Configuration 7: Two-Way Talk Back Paging System Setup Drawing

    SETUP FOR CONFIGURATION 7: TWO-WAY TALK BACK PAGING SYSTEM...

  • Page 17: Description

    CONFIGURATION 7: TWO-WAY TALK BACK PAGING SYSTEM This configuration is essentially the same as the one-way paging system described previously. The main difference between the one- way configuration and this configuration is that the centralized high-power amplifier is connected to the PCMTBM module instead of the PCMCPU module.

  • Page 18: Configuration 8. Two-Way Talk Back Extended Paging System Setup Drawing

    SETUP FOR CONFIGURATION 8: TWO-WAY TALK BACK EXTENDED PAGING SYSTEM...

  • Page 19: Description

    CONFIGURATION 8: TWO-WAY TALK BACK EXTENDED PAGING SYSTEM This configuration is essentially the same as the two-way paging system described previously on page 17. The main difference is the addition of a satellite assembly. The required setup includes: PCMTIM - 2 PCMCPU - PCMTBM - 4 PCMZPM - 2 PCMPS2 Note: Talk Back is only available in High-Power Zones with 25 &...

  • Page 20: Configuration 9: 3-Zone/One-Way Paging/Low-Power System/Self-Amplified Speakers Setup Drawing

    SETUP FOR CONFIGURATION 9: 3-ZONE / ONE-WAY PAGING / LOW-POWER SYSTEM / SELF-AMPLIFIED SPEAKERS...

  • Page 21: Description

    CONFIGURATION 9: 3-ZONE / ONE-WAY PAGING / LOW-POWER SYSTEM / SELF-AMPLIFIED SPEAKERS Low-Power System is a switch-selectable feature that allows the system designer to use self-amplified speakers on the zone outputs. The PCMZPM module that is to be used as a low-power module will switch only low-level signals to the zone outputs for use with dedicated amplifiers or self-amplified speakers.

  • Page 22: Configuration 10: 6 Zones/One-Way Paging/Mixed High- & Low-Power Zones/25 & 70V Ac Speakers Setup Drawing

    SETUP FOR CONFIGURATION 10: 6 ZONES / ONE-WAY PAGING / MIXED HIGH- AND LOW-POWER ZONES / 25 & 70V AC SPEAKERS...

  • Page 23: Description

    CONFIGURATION 10: 6 ZONES / ONE-WAY PAGING / MIXED HIGH- AND LOW-POWER ZONES / 25 & 70V AC SPEAKERS High- and Low-Power Mixed System is a non-programmable feature that lets the system designer use a dedicated amplifier or self-am- plified speaker per zone and at the same time use a centralized amplifier for zones requiring less than 250 watts of power*. The PCMZPM module to be used as a low-power module must have all three zones with dedicated amplifiers or self-amplified speakers and have its output switch set to Low-Power.

  • Page 24: Configuration 11: Microphone Override Setup Drawing

    SETUP FOR CONFIGURATION 11: MICROPHONE OVERRIDE...

  • Page 25: Description

    VAR1. • Connect a 6-pin RJ11 modular cable between the RJ11 modular jack (previously attached to the wall next to the PCM2000) and the Override RJ11 input on the PCMTIM module.

  • Page 26: Configuration 12: Dft120 & Tamb2 Wiring Diagram - Ground Start Trunk Or Station Level Setup Drawing

    SETUP FOR CONFIGURATION 12: DFT120 & TAMB2 WIRING DIAGRAM - GROUND START TRUNK OR STATION LEVEL TMER TRNK TIMER IGNORE DETECT 1-RNG IMMED ENABLE CONF START START LOOP STATION MODE TRUNK...

  • Page 27: Description

    Using digital technology, the DFT120 stores the DTMF tones and the paging audio. When the TAMB2 closed contacts are removed from the DFT120, the DFT120 activates the PCM2000 system also using normally open contacts, and plays the page (audio).

  • Page 28: Configuration 13: Emergency Alert Tones Setup Drawing

    SETUP FOR CONFIGURATION 13: EMERGENCY ALERT TONES...

  • Page 29: Description

    Emergency Alert Tones is a non-programmable feature that lets the caller take priority over all paging functions and send an emergency alert tone to all speakers. In addition to the PCM2000 modules, this option requires a Bogen VMIX (8-channel mixer/pre-amplifier), an input/output module RIO1S, and a Tone Generator module TNG1S.

  • Page 30: Configuration 14: Single Amplifier Background Music Line-Level Signal Setup Drawing

    STEP 4: Activating the Background Music • Access the PCM2000 system (either use a single 2500-series line telephone or butt set or dial the paging access number from the telephone system). You will hear 3 beep tones indicating access to the programming mode.

  • Page 31: Configuration 15: Relay Driver Output Setup Drawing

    CONFIGURATION 15: RELAY DRIVER OUTPUT ZONE A ZONE B ZONE C SUPPRESSION DIODES TALKBACK SUPRESSION DIODES POWER LPBGM VOLUME RELAY ZONE A ZONE B ZONE C GLOBL BGM RELAY LO PWR OUTPUT HI PWR RELAY LOCAL ZONE A ZONE B ZONE C RD A RD B RD C...

  • Page 32: Section Ii - Programming

    1. Remove the switch lock on the PCMCPU module and place the PROGRAM/RUN switch to the PROGRAM position (down). The green LED will illuminate. 2. Access the PCM2000 system (either use a single 2500-line telephone or butt set or dial the paging access number from the telephone system).

  • Page 33: Feature Codes And Defaults Chart

    FEATURE CODES AND DEFAULTS Feature Feature Code Additional Data Default Privacy Beep Inhibit Enable Enable Pre-announce Tone Inhibit Beep Chime Chime Confirmation Tone Inhibit Enable Enable Emergency O/R Tone Inhibit Inhibit Enable All-Call Inhibit Enable Enable Dialing Time-out Inhibit Enable Enable Trunk Disconnect Inhibit...
  • Page 34 Feature Feature Code Additional Data Default Clock Set HHMM 00:00 Clock Sync. HHMM (See Note 3 - p. 35) Inhibit Inhibit Enable Time Trigger 1 Zone Group Zone Numbers No Zones Inhibit Inhibit Enable HHMM (See Note 3 - p. 35) 2-Second Tone 3-Second Tone 3-Second Tone...
  • Page 35 Feature Feature Code Additional Data Default Time Trigger 6 Zone Group Zone Numbers No Zones Inhibit Inhibit Enable HHMM (See Note 3 - below) 2-Second Tone 3-Second Tone 3-Second Tone 4-Second Tone 5-Second Tone 6-Second Tone 7-Second Tone 8-Second Tone Chime Time Trigger 7 Zone Group...

  • Page 36: Sys-Id Switch Settings Chart For Additional Satellite Systems

    SYS-ID SWITCH SETTINGS CHART FOR ADDITIONAL SATELLITE SYSTEMS Zone #ʼs Master Satellite 10-18 19-27 28-36 37-45 46-54 55-63 64-72 73-81 82-90 91-99...

  • Page 37: Appendix

    APPENDIX Module Assembly Align polarizing tab in slot Align connectors LOCKING so locking ridge LOCKING faces header wall. LOCKING SLOT ALIGN CONNECTORS SO LOCKING RIDGE FACES 6-pin Connector Ribbon Cable Connector HEADER WALL ALIGN POLARIZING TAB IN SLOT LOCKING SCREW CLAMP TAB &...
