Assembly Tools

Included in your parts box: Helpful Tools:
• Pedals • Scissors
• Quick release skewer • Bicycle grease
• Reflectors (if not already installed) • Phillips-head screwdriver
• Stem • Allen wrenches: 4, 5, & 6mm
• Toolkit (4+5mm combo Allen wrench, • Open-end wrenches: 9, 10, 14, 15, & 17mm
13+15mm combo open-end wrench) or adjustable crescent wrench
• Touch-up paint • Needle-nose pliers
Assembly will take 1 - 2 hours
Note:
When working on your bicycle as instructed by this guide, please refer to the torque values chart in your owner's manual for detailed torque
requirements. Under- or over-tightened components may loosen or break, causing a fall.
Steps in this guide that call for the use of bicycle grease do so in the interest of keeping your bicycle in working condition for as long as possible. Grease
is not absolutely vital to the assembly of this product, but failure to apply it as directed could cause parts to seize over time and irreparably damage the
frame or components.
Because bicycle parts tend to be greasy, it is recommended that you lay down a tarp or sheet to protect your floor if assembling the bike indoors.
It is best to remove the protective packaging during the assembly process only as needed, leaving some intact to protect the bike during assembly.
During assembly it may be helpful to reference the photos on the cover of this guide and on the bicycle box if you are unsure of any steps.
Please take the time to read the battery care and storage section of your manual for useful information on prolonging the life of your battery.

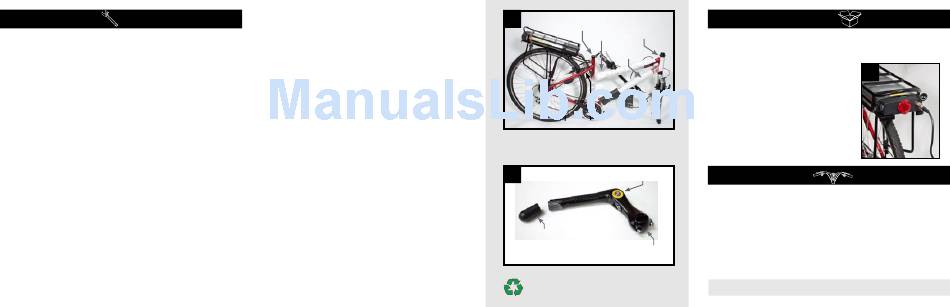

A
Seat Tube
Head tube
Top Tube
Down Tube
Fork
Seatstay
Chainstay
C
Wedge bolt
(top of stem)
Protective cap
(remove and discard)
Faceplate
Please recycle
packaging materials!

Unpacking and Preparation

1.
Carefully remove the bicycle from the box. You should have a friend
help you with this, as the bike is heavy. If you are alone, you can lay the box on
its side and gently slide the bike out.
2. B
begin charging your
At this point you can
battery.
The charger is in a small white box, usually
rubber-banded to the rack or underneath the bike.
Recommend charge time is 4-6 hours. Plug the
charger first into the wall outlet, then into the port on
the battery (photo B).
A solid red or blinking green light on the charger
(depending on model) indicates the battery is charging
properly. A solid green light indicates that the charger
has entered trickle charge mode, and your battery is at
least 80% full. For maximum range, please charge for
the full recommended time period (4-6 hours).

Handlebars and Stem

3.
Cut the zip-ties holding the front wheel to the bike frame
wheel aside for now.
4.
Rotate the fork so the brake faces away from the frame , then rest the bike
upright on its rear wheel and fork , as shown in photo A. When rotating the fork, be
sure the cables run in front of the frame and do not wrap around the fork or head tube.
5.
Find the stem in the parts box Remove the protective
(photo C).
caps from the stem and head tube insert the stem into the bike's
, then
head tube facing away from the frame. Remove the faceplate by removing
the two or four faceplate bolts (depending on model) shown in photo D.
1-800-377-4532
Currie Technologies
Technical and Customer Service
. Set the
