PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS
PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS
COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.
Contact your building or fire officials about restrictions and installation inspection
WarninG:
improper installation, adjustment, alteration,
s e r v i c e
o r
m a i n t e n a n c e
injury, property damage, or loss of life.
refer to this manual. for assistance or
additional information consult an authorized
installer or service agency.
Tested by:
GC60-053
fpi fireplace products international, ltd. 6988 Venture st., delta, Bc, canada V4G 1H4
requirements in your area.
c a n
c a u s e
IMPORTANT: SAVE THESE INSTRUCTIONS

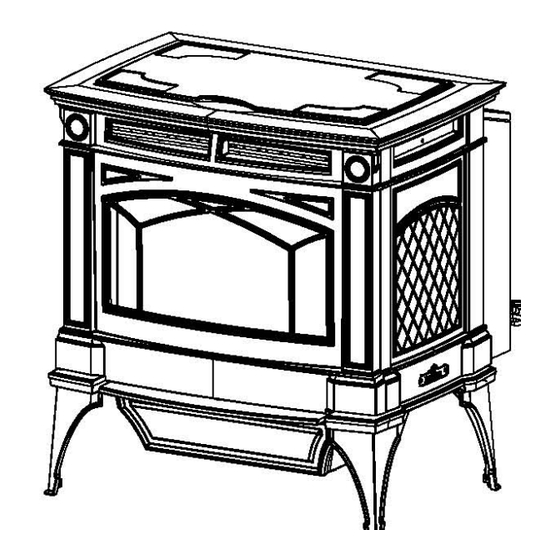

GC60
oWner's Manual
freestanding cast iron
pellet stove
for Your safetY:
Do not store or use gasoline or other flammable
vapours and liquids in the vicinity of this or any other
appliance.
Installation and service must be performed by an
authorized installer or service agency.
06/01/11
Advertisement
Table of Contents
Related Manuals for HAMPTON BAY GC60
Summary of Contents for HAMPTON BAY GC60
- Page 1 GC60 oWner’s Manual freestanding cast iron pellet stove PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. Contact your building or fire officials about restrictions and installation inspection requirements in your area.
- Page 2 Should you have any questions about your product that are not covered in this manual, please contact the HAMPTON DEALER in your area. safety note: If this stove is not properly installed, a house fire may result. For your safety, follow the installation instructions, contact local building, fire officials, or authority having jurisdiction about restrictions and installation inspection requirements in your area.
-
Page 3: Table Of Contents
Operating Instructions................6 Dimensions & Specifications............6 Control Board Functions.............7 Automatic Safety Features of Your Pellet Stove......7 Operating Your Pellet Stove............7 Turning Your Pellet Stove Off............9 Slider/Damper Set-Up..............9 Routine Cleaning and Maintenance............10 Warranty...................13 Installation Data Sheet...............16 Hampton GC60 Cast Pellet Stove Owner’s Manual... -
Page 4: Introduction
Fuel quality is important, please read the following: Your Hampton pellet stove has been designed to burn ¼” (6mm) dia wood pellets and other organic pellet fuels (corn, wheat, barley). DO NOT use this appliance as an incinerator. DO NOT use unsuitable and non recommended fuels, including liquid fuels as this will void any warranties stated in this manual. -
Page 5: Safety Warnings & Recommendations
To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the installation instructions. An Hampton dealer will be happy to assist you in obtaining information with regards to your local building codes and installation restrictions. - Page 6 If this power cord should become damaged, a replacement power cord must be purchased from the manufacturer or a qualified Hampton dealer. Be careful that the electrical cord is not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum power requirement is 504 watts.
-
Page 7: Dimensions & Specifications
Testing Standard Weight (with full hopper) Consumption on High ASTM 1509-04 485 lb (220 Kg) 6.5 lb/hr (2.95 Kg/hr)* *Note: Consumption will vary with the type and quality of pellets / fuel used. Hampton GC60 Cast Pellet Stove Owner’s Manual... -
Page 8: Operating Instructions
C. VACUUM SWITCH: Notifies when the unit has lost vacuum. This can be caused by either a combustion fan/vent failure, or simply the unit’s outer door, pedestal door. It will display a #2 flash code. Hampton GC60 Cast Pellet Stove Owner’s Manual... - Page 9 Once up to temperature, the stove operates the same as in Figure 5: Thermostat Switch MANUAL. When the thermostat contacts open, the stove’s HEAT LEVEL and Fans in AUTO/OFF position. COMBUSTION HEAT FAN TRIM LEVEL Hampton GC60 Cast Pellet Stove Owner’s Manual...
-
Page 10: Turning Your Pellet Stove Off
Fuel quality is a major factor in how the stove will operate. If the fuel has a high moisture content or ash content the fire will be less efficient and has a higher possibility of the fire building up and creating clinkers (hard ash build-up). Hampton GC60 Cast Pellet Stove Owner’s Manual... -
Page 11: Routine Cleaning And Maintenance
10. Set the fire grate in place, it should sit level on the front and back of the burn pot liner. Lock it in with the lever on the burn pot. 11. Close the door Figure 8: GC60 Burn Pot Assembly. Hampton GC60 Cast Pellet Stove Owner’s Manual... - Page 12 Open the bottom of the “T” to dump the ash, then vacuum as much of the ash out of the vent pipe as possible. FRESH AIR INTAKE (Biannually) Inspect periodically to be sure that it is not clogged with any foreign materials. Hampton GC60 Cast Pellet Stove Owner’s Manual...
- Page 13 Insert the glass into the retainer, screw the door to the retainer, and gently tighten nuts. Ensure that edge clearances are maintained. The use of substitute materials is prohibited: #50-2119. Hampton GC60 Cast Pellet Stove Owner’s Manual...
-
Page 14: Warranty
FPI is the manufacturer of the Hampton line of pellet heating products. At FPI, our commitment to the highest level of quality and customer service is the most important thing we do. Each Hampton stove is built on a tradition of using only the finest materials and is backed by our Exclusive Lifetime Limited Warranty to the original purchaser. - Page 15 FPI The use of such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited Warranty, contact your authorized Hampton dealer before installation. 10. FPI will not be responsible for inadequate performance caused by environmental conditions, or use of any fuel other than certified wood pellets.
- Page 16 21. The Limited Warranty does not cover any loss or damage incurred by the use or removal of any component or apparatus to or from the Hampton wood pellet stove or insert without the express written permission of FPI and bearing a FPI label of approval.
-
Page 17: Installation Data Sheet
