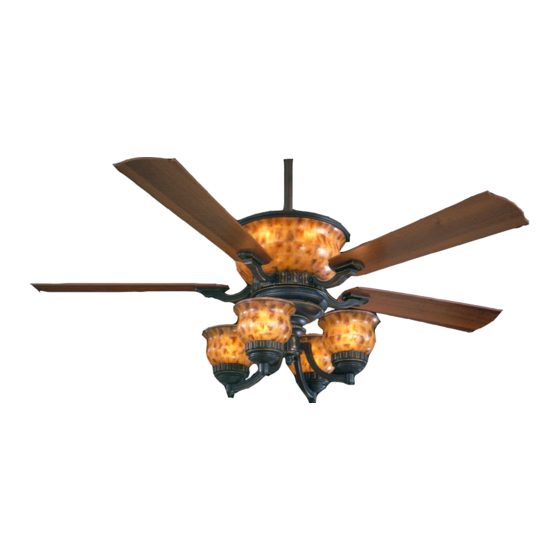

- Page 1 ADARE U.S. Patents: D524,934; D524,936; D525,703; D526,401; D526,406; D527,454; D528,651; D529,168; D536,084; D555,282; D572,813 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
- Page 2 This product is protected by United States Federal and/or State Law, including Patent, Trademark and/or Copyright laws. Manual design and all elements of manual design are protected by U.S. Federal and/or State Law, including Patent, Trademark and/or Copyright laws.
- Page 3 This is a limited warranty. Minka-Aire's only obligation under this limited warranty is to replace or repair, or refund the purchase price, in Minka-Aire's sole discretion without charge to the original owner, of the fan once Minka-Aire confirms that the fan has a defect covered by this limited warranty.
- Page 4 This limited warranty is in lieu of all other express warranties. This limited warranty excludes all incidental and consequential damages, and Minka-Aire shall not under any circumstances be liable for incidental or consequential damages. Some States do not allow the exclusion of or limitation of incidental or consequential damages, so the foregoing limitation or exclusion may not apply to you.
-
Page 5: Table Of Contents
CONTENTS SAFETY RULES..................INSTALLING THE MOUNTING PLATE..........PACKAGE CONTENTS..............INSTALLING THE LIGHT KIT............. INSTALLING THE FAN..............INSTALLING THE GLASS SHADES AND LIGHT BULBS..HANGING THE FAN................. FAN WITHOUT LIGHT KIT..............ELECTRICAL CONNECTIONS............OPERATING THE REMOTE CONTROL/WALL CONTROL..INSTALLING THE WALL TRANSMITTER......... CARE OF YOUR FAN................ -
Page 6: Safety Rules
SAFETY RULES 1. Before you begin installing the fan, shut the power off at the circuit breaker or the fuse box. 2. Be Cautious! Read all instructions and safety information before installing your new fan. Review the accompanying assembly diagrams. 3. - Page 7 ATTENTION: ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. NOTE: The important safeguards and instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur.
-
Page 8: Package Contents
PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: 13b.Wall Plate w/2 mounting screws 14. Receiver with 7 wire nuts Fan blades (5) 15. Extra Wall Plate w/2 Mounting screws 2a. Hanger bracket plate 16. -
Page 9: Installing The Fan
SUPPORT (OPTIONAL) To hanger your fan where there is an existing fixture but no ceiling joist, you may need to HANGER ® install a hanger bar as shown in Fig. 4 (available at your Minka-Aire OPENING dealer.) must be FACING... -
Page 10: Hanging The Fan
HANGING THE FAN WARNING: All of the parts, hardware and components such as the Step 3. Secure hanger bracket to hanger bracket plate using the two hex hanger bracket and hanger ball have been provided for your safety and nuts and washers provided, make sure nuts are securely tighten. (Fig. 7) the proper installation of your new ceiling fan. - Page 11 NOTE: DO NOT INSTALL THE COUPLING COVER OR DECORATIVE SCROLL IF YOU PLAN TO USE THE MINIMUM LENGTH DOWNROD. Step 8. Now lift motor assembly into position and place hanger ball into hanger bracket. Rotate until the check groove has dropped into the registration slot and seats firmly.
- Page 12 DOWNROD CANOPY COUPLING *OMIT COUPLING COVER WHEN THE MINIMUM-LENGTH CANOPY COVER DOWNROD REGISTRATION SET SCREWS SLOT Fig. 12 HITCH PIN LOCK PIN Fig. 11...
-
Page 13: Electrical Connections
ELECTRICAL CONNECTIONS Step 2. Motor to Receiver Electrical Connections: Connect the WARNING: To avoid possible electrical shock be sure electricity is WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" turned off at the main fuse or breaker box before wiring. from the Receiver. - Page 14 Step 3. Receiver to House Supply Wires Electrical Connections: Connect the WHITE wire (Neutral) from the outlet box to the WHITE wire marked "AC in N" from the receiver. Connect the BLACK wire (Hot) from the outlet box to the BLACK wire marked "AC in L" from the receiver.
- Page 15 INPUT AC120V OUTLET BOX WHITE (NEUTRAL) BLACK (HOT) WHITE GREEN OR BARE AC SUPPLY COPPER (GROUND) BLACK ("AC IN L") BLACK WHITE ("AC IN N") RECEIVER BLACK ("TO MOTOR L") WHITE ("TO MOTOR N") ORANGE GROUND (CONNECT TO GROUND- (FOR UPPER LIGHT) GROUND WIRE ON (GREEN) HANGER BRACKE...
-
Page 16: Installing The Wall Transmitter
INSTALLING THE WALL TRANSMITTER WARNING! HOOK UP "IN SERIES" ONLY. DO NOT CONNECT NEUTRAL SUPPLY WIRE OF ELECTRIC CIRCUIT TO THE TRANSMITTER WALL SWITCH, DAMAGE TO THE TRANSMITTER WALL SWITCH AND POSSIBLE FIRE COULD OCCUR. Step 1. Remove the existing wall plate and switch from the wall outlet box. Step 2. -
Page 17: Finishing The Installation
FINISHING THE INSTALLATION Step 1. Tuck connections neatly into ceiling outlet box. OUTLET BOX Step 2. Slide the canopy up to ceiling and over the two screws on hanger bracket. Rotate HANGER canopy clockwise, next, while holding the canopy with one hand, slide the canopy cover over BRACKET the screws and rotate clockwise until tight. -
Page 18: Blade Installation
BLADE INSTALLATION THE FOLLOWING OPERATION MUST BE ACCOMPLISHED BEFORE INSTALLING THE LIGHT KIT. SCREWS FIBER WASHERS Step1. Attach the fan blade to the blade holder using the screws and fiber washers provided. Tighten screws BLADE HOLDER securely. Repeat process for remaining blades.(Fig. 19) BLADE Step2. -
Page 19: Installing The Mounting Plate
INSTALLING THE MOUNTING PLATE Step 1. Remove 1 of 3 screws from the mounting ring and loosen the other 2 screws. (Do not remove) Step 2. Place the key holes on the mounting plate over the 2 screws previously loosened from the mounting ring, turn mounting plate until it locks in place at the narrow section of the key holes. -
Page 20: Installing The Light Kit
INSTALLING THE LIGHT KIT NOTE: Before starting installation, disconnect the power by turning off the circuit breaker or removing the fuse at fuse box. Step 1. Feed the BLACK and WHITE wires from the light kit through the center hole of the switch cup. Thread the switch cup to the nipple on the light kit. - Page 21 MOUNTING PLATE LOCK WASHER CONNECTORS SWITCH CUP SCREWS LIGHT KIT LIGHT KIT Fig. 22 Fig. 23...
-
Page 22: Installing The Glass Shades And Light Bulbs
INSTALLING THE GLASS SHADES & LIGHT BULBS BULBS ATTENTION ATTENTION: The Energy Policy Act of 2005 requires this fan to be equipped with a 190 watt limiting device. If lamping exceeds 190 watts, the ceiling fan's light kit will shut off automatically. LOCK RING Step 1. -
Page 23: Fan Without Light Kit
FAN WITHOUT LIGHT KIT Step 1. Install the decorative nut to the switch cup as shown in Fig. 25. Step 2. Place the switch cup close to the mounting plate, align the plastic connectors from switch cup and the fan and firmly snap the two connectors. Secure the switch cup to the mounting plate using the four screws provided. -
Page 24: Operating The Remote Control/Wall Control
OPERATING THE REMOTE CONTROL/WALL CONTROL Remote Control only: Install a A23 12 volt battery (included). To prevent damage to transmitter remove the battery if not used for long periods of time. Restore Power to Ceiling Fan. D. OFF-ON Slide Button (Wall Control Fans Only) instructions apply to ceiling fans that feature a DOWN This button turns the power Off and On to the Fan and light (... - Page 25 Speed settings for warm or cold weather depend on factors such as room size, ceiling height and number of fans. NOTE: to change the direction of the rotation of the blades the fan must be in operation mode. Warm Weather (forward) A DOWNWARD airflow creates a cooling effect as shown in Figure 26.
-
Page 26: Care Of Your Fan
CARE OF YOUR FAN 4. Use a lint free lightly damp cloth or duster to remove dust from Here are some suggestions to help maintain your fan. the blades. 1. Because of the fan's natural movement some connections may become 5. -
Page 27: Troubleshooting
TROUBLESHOOTING SYMPTOM SYMPTOM Fan will not start Fan Sounds Noisy SOLUTION SOLUTION Check to make sure the wall switch is turned on. Allow a 24-hour "break in" period. Most noises associated with a new fan will go away during this time. Check circuit fuses or breakers. - Page 28 SYMPTOM SYMPTOM Fan Wobble Lights shut off and will not come back on. SOLUTION SOLUTION NOTE: All blade sets are grouped by weight. Because wood and This unit is equipped with a wattage limiting device. Lamping in plastic blades vary in density, the fan may wobble even though excess of 190 watts will disable your ceiling fan’s light kit.
- Page 29 SYMPTOM Frequency Interference SOLUTION Turn the power off to your ceiling fan. Please use a small size tool to change the frequency settings on the control system. Return power to the unit. Note: After the AC power is on, do not press any other button on the transmitter before pressing the "Stop" button, doing so will cause the procedure to fail.
-
Page 30: Specifications
SPECIFICATIONS These are typical readings. Your actual fan may vary. Fan Size Speed Volts Amps Watts RPM CFM N.W. G.W. C.F. They do not include amps and wattage used by the 0.38 3800 light(s). 23.8 20.52 5.07' 60" Medium Medium 0.54 4900 0.61...
