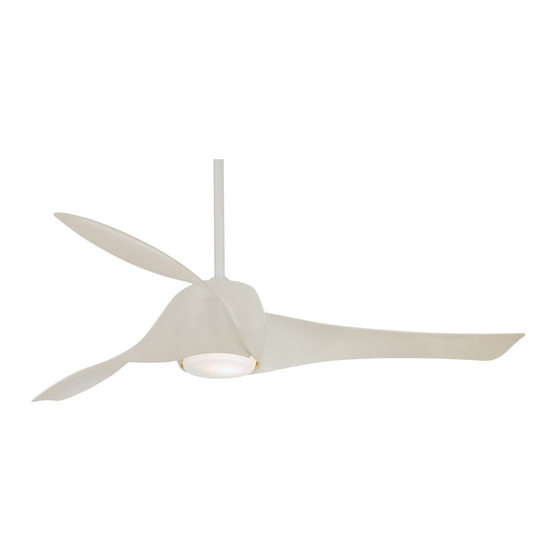

Minka-Aire Artemis Instruction Manual

Minka-Aire Artemis Instruction Manual

George kovacs design
Hide thumbs Also See for Artemis:

Advertisement

TM
ARTEMIS
A
by
U.S. Patents: D535,011; D535,015; D535,387; D535,388; D536,083; 7,481,626
INSTRUCTION MANUAL WARRANTY CERTIFICATE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Artemis and is the answer not in the manual?

Questions and answers

Glenn Becker
January 23, 2025

How can I change the frequency between the **** and the remote

1 comments:
Mr. Anderson
February 10, 2025

To change the frequency between the Minka-Aire Artemis fan and the remote, follow these steps:

1. Check Factory Preset Frequency: The receiver and transmitter frequency is preset at the factory.
2. Identify Frequency Interference: If you experience interference from other remote units, you need to change the frequency.
3. Refer to the Troubleshooting Section: The instruction manual has a "frequency interference" troubleshooting section that provides steps to change the frequency.
4. Follow the Instructions: Locate the steps in the manual and adjust the frequency settings accordingly.

For detailed steps, refer to the troubleshooting section of the instruction manual.

This answer is automatically generated

Summary of Contents for Minka-Aire Artemis

  • Page 1 ARTEMIS U.S. Patents: D535,011; D535,015; D535,387; D535,388; D536,083; 7,481,626 INSTRUCTION MANUAL WARRANTY CERTIFICATE...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS...................... 1 IMPORTANT NOTES......................2 PACKAGE CONTENTS......................3 TOOLS REQUIRED......................4 INSTALLING THE MOUNTING BRACKET................4 HANGING THE FAN......................5 ELECTRICAL WIRING DIAGRAM..................7 ELECTRICAL CONNECTIONS.................... 8 FINISHING THE INSTALLATION..................10 BLADE INSTALLATION......................10 INSTALLING THE LIGHT KIT MOUNTING PLATE..............11 INSTALLING THE LIGHT PLATE...................
  • Page 3: Safety Precautions

    Congratulations on purchasing your new Artemis ceiling fan by Minka Aire. This is an extremely high quality product and we are sure that you will be very happy with your purchase. Despite thorough quality control and testing sometimes issues can arise. We want you to be thoroughly happy with your product and ownership experience.
  • Page 4: Important Notes

    IMPORTANT NOTES FAN CONTROL Your warranty will be void if a solid-state dimmer type fan controller or other brand wall controller is used. ONLY use the wall controller supplied. With these controllers there is a strong possibility that the ceiling fan motor will produce an unpleasant loud humming noise.
  • Page 5: Package Contents

    PACKAGE CONTENTS Unpack your fan and check the contents. You should have the following items: LI G HT Fan blades x 3 #10 x 38 mm Wood screws x 2 Hanger bracket x 1 #8 x 19 mm Machine screws x 2 Canopy x 1 Lock washers x 2 Canopy cover x 1...
  • Page 6: Tools Required

    TOOLS REQUIRED Tools Required: Phillips / Flat head screw driver Pair of pliers Adjustable Spanner Step ladder Wire cutter Wiring, supply cable as required by AS/NZS 3000 wiring code. INSTALLING THE MOUNTING BRACKET The ceiling fan must be installed in a location so that the blades are at least 2.1 meters above the floor, and 30cm spacing from the tip of the blade to the nearest objects or walls.
  • Page 7: Hanging The Fan

    The use of other parts, hardware or components not supplied by Minka Aire® with the fan will void the Minka Aire® Warranty. Loosen the screw in the terminal block and remove the terminal block for later use. Secure the hanger bracket to the ceiling joist or structure using the screws included.
  • Page 8 Carefully feed fan wires up through the downrod, then thread the rod into the coupling. Line up the holes and replace lock pin and hitch pin. Tighten set screws. DOWNROD SUPPLY WIRES SET SCREWS Fig. 5 LOCK PIN HITCH PIN Slip coupling cover, canopy cover and canopy onto downrod.
  • Page 9: Electrical Wiring Diagram

    Now lift motor assembly into position and place hanger ball into hanger bracket. Rotate until the check groove has dropped into the registration slot and seats firmly. Rod should not rotate if this is done correctly. REGISTRATION SLOT Fig. 7 ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY , ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENCED ELECTRICIAN...
  • Page 10: Electrical Connections

    ELECTRICAL CONNECTIONS Make wiring connection as following: SUPPLY CIRCUIT Household Household Neutral Wire Suppry Wire Light Live (to wall switch) Household Ground Wire Terminal block Female plug Male plug (from fan) Fig. 10 BROWN BLUE BLUE Light switch BROWN GROUND GREEN BLACK Rotary...
  • Page 11 FAN (LIVE) Speed 1 Speed 2 Speed 3 LIVE (SUPPLY 240VAC) C1>C2 C1 value is normally CONTROLLER greater then C2 CAPACITOR Fig. 12 Carefully tuck the wire connections inside the outlet box or wall cavity if not using an outlet box. Use the screws provided to secure the wall switch and wall plate to the outlet box or wall switch frame.
  • Page 12: Finishing The Installation

    FINISHING THE INSTALLATION 1. Remove 1 of 2 screws from the bottom of the hanger bracket and loosen the other one a half turn from the screw head. 2. Slide the canopy up to the hanger bracket and place the key hole on the canopy over the screw on the hanger bracket, turn canopy until it locks in place at the narrow section of the key holes.
  • Page 13: Installing The Light Kit Mounting Plate

    INSTALLING THE LIGHT KIT MOUNTING PLATE 1. Remove 3 screws from the mounting ring. 2. Place the light kit mounting plate to the mounting ring, secure by tightening the 3 screws previously removed. LIGHT KIT MOUNTING RING MOUNTING PLATE SCREWS Fig.
  • Page 14: Installing The Light Bulb & Glass Shade

    INSTALLING THE LIGHT GLOBE & GLASS SHADE WARNING: Shut off the power supply before removing or replacing the globe. Care should be taken when handling the halogen globe and it should not be touched with bare hands. Oil residue will shorten the life of the halogen globe.
  • Page 15 REVERSING SWITCH Your ceiling can operate either in fan mode or reverse fan mode. NOTE: to change the direction of the rotation of the blades the fan must not be operating. The Reverse switch is located on the top of the motor housing. Slide the switch to the left for warm weather operation.
  • Page 16: Balancing / Wobblying Trouble Shooting

    BALANCING / WOBBLING TROUBLE SHOOTING Please note that all ceiling fans are not the same, even in the same model—some may move more or less than others. Movement of a couple of centimetres is quite acceptable and does not suggest the fan will fall down. Even though all blades are weighted and grouped by weight, it is impossible to eliminate wobble altogether and should not be considered a problem.
  • Page 17: Warranty Service

    WARRANTY SERVICE The manufacturer warranty covers actual faults that may develop, but NOT minor complaints, e.g. noise from motor run—ALL ELECTRIC MOTORS ARE AUDIBLE TO SOME EXTENT. WOBBLE Ceiling fans tend to move during operation due to the fact that they are not generally rigidly mounted—if they were, they could generate excessive ceiling vibration and stress on their mountings.
  • Page 18: Ripple Control

    RIPPLE CONTROL (abstract from Hunter Pacific International) Throughout Australia, but in particular Sydney and other parts of NSW and Queensland, electricity distributors use a remote control and switching system that is commonly called ripple control. Ripple control has existed for many years and is used for controlling demand and implementing different customer tariffs. Our electricity supply is 240 Volts AC 50 Hertz.
  • Page 19: Trouble-Shooting Checklist

    (Optional light kit ONLY) WARNING: THE CEILING FAN MUST BE SWITCHED OFF, BEFORE ANY TROUBLESHOOTING IS PERFORMED. SPECIFICATION Rated power Rated power lamp (for FAN Models Rated Voltage Lamp type (motor) models with light only) Artemis F803 220 - 240 VAC MAX. 80W...
  • Page 20: Warranty Conditions

    WARRANTY CONDITIONS This product is guaranteed against electrical defects in material or manufacturing workmanship for faults when under normal domestic/residential conditions for 24 months from the date of purchase. This warranty covers parts and labour costs for the motor subject to the following conditions: 1.
  • Page 21 6. The warranty applies to actual faults which may develop. Minor running noises are not covered. All electrical motors have some audible noise. Allow at least eight hours of operation to allow the bearings to properly seat. The fan, especially when set on low, may feel warm to touch – this is not a fault. If excessive heat is generated a service call may be required.
  • Page 22: Ceiling Fan Warranty Detail

    CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 In the event of service being required, please call the Lucci Fan Warranty Hotline on 1800 602 243 between 9am & 5pm (EST) Monday to Friday. Please make sure you have all the ceiling fan details filled out at the end of the manual before making the call.
  • Page 23 CEILING FAN WARRANTY DETAIL LUCCI WARRANTY HOTLINE- 1800 602 243 Retain AND Fill in this form and keep it for your personal records and warranty purposes NAME ADDRESS POSTCODE MODEL NUMBER PO NUMBER or DATECODE DATE OF PURCHASE STORE PURCHASED FROM INSTALLING LICENSED ELECTRICAN PHONE INSTALL DATE...
