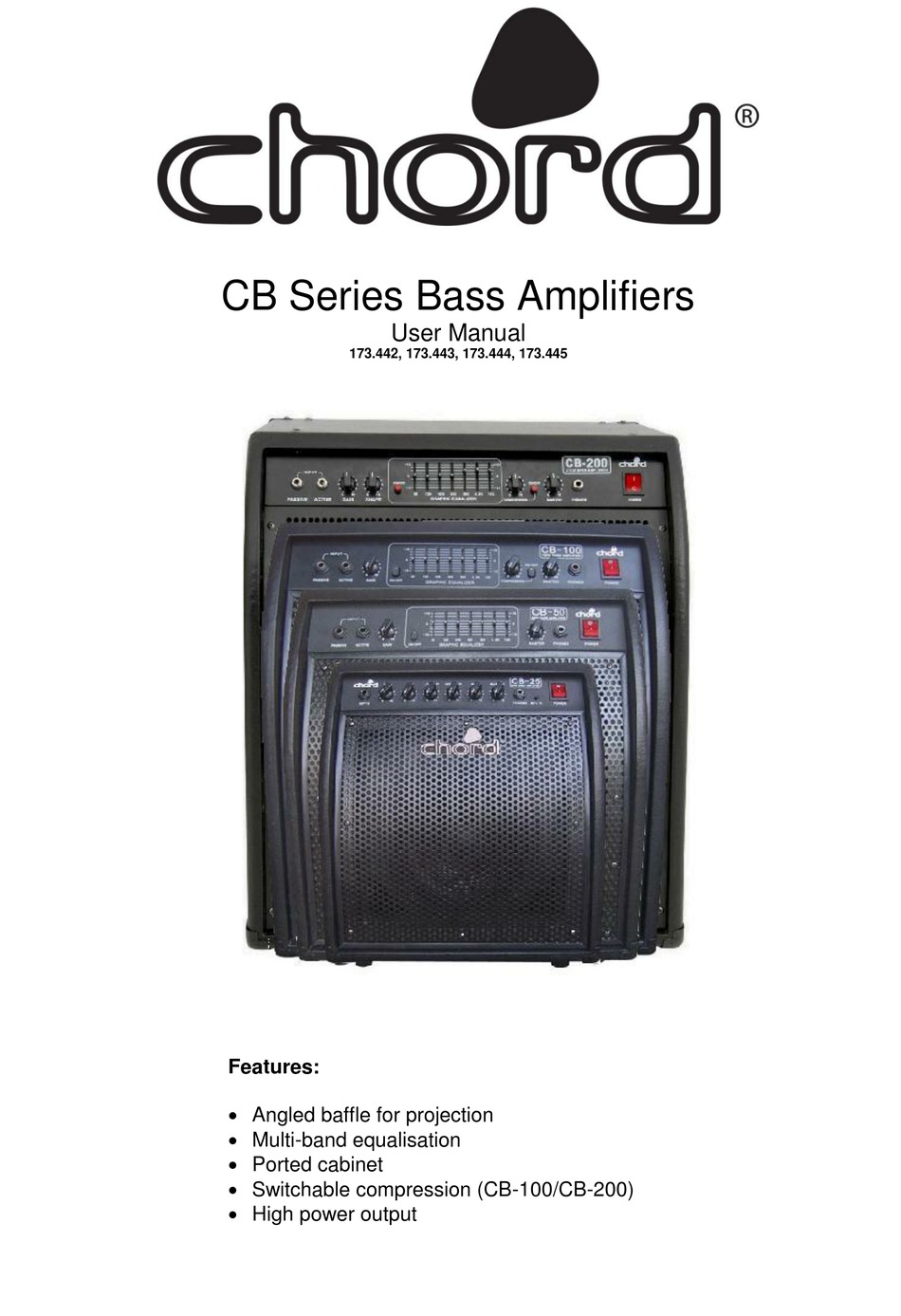

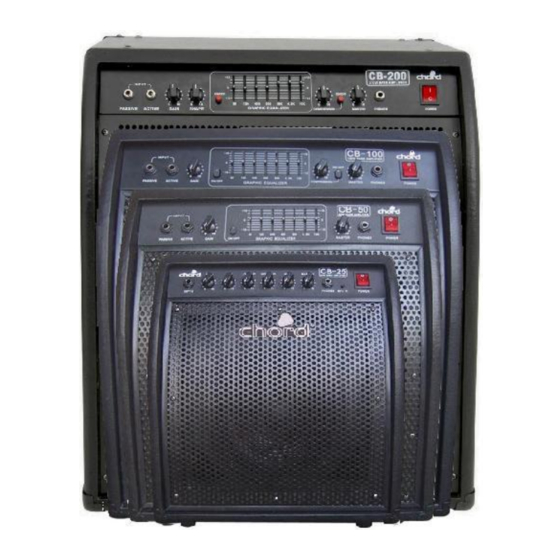

- Page 1 CB Series Bass Amplifiers User Manual 173.442, 173.443, 173.444, 173.445 Features: Angled baffle for projection Multi-band equalisation Ported cabinet Switchable compression (CB-100/CB-200) High power output...
-
Page 2: Front Panel
Introduction Thank you for choosing our CB series bass amplifier. Please read this manual prior to use to avoid damage to the item. The CB range is specifically designed to give the bass player a powerful, dependable amplifier with enough useful features to suit a wide variety of situations from rehearsal to stage. -
Page 3: Rear Panel
Rear Panel 10) Mains inlet – IEC with fuse holder (ensure correct rating when replacing fuse) 11) Speaker connections – Internal and external speaker 6.6mm jack outputs (4Ω min) 12) Balanced Out – Direct Inject output for mixer or recording device (XLRM balanced) 13) Send &... - Page 4 Check that Gain, EQ, Master and bass guitar controls are not turned down Output very quiet Make sure passive bass is not plugged into Active input Unplug effects from Send/Return loop to check if they are cutting signal level © Chord 2011...
