Chord Chordette SCAMP Instruction Manual

Instruction Manual

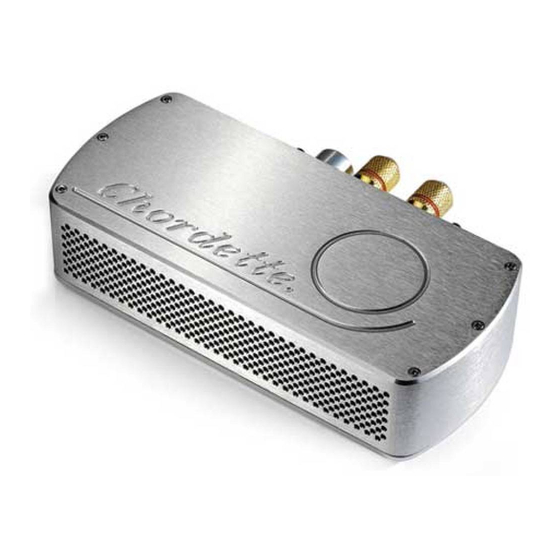

Chordette
Thank you for purchasing the Chordette Scamp. In order to get the most from your
product please take a few moments to read these instructions.

Connections

The Scamp can be connected to an analogue source via the RCA phono connectors
or to a computer via the USB connection. In these cases the built in volume control can
be used to adjust the volume. The Scamp can also be connected to a preamplifier
such as the Chordette Prime via the RCA phono connectors but in this case the Scamp
Gain Control should be set to maximum. The speakers connect to the gold plated
binding posts red for positive and black for negative. There is a 12V power output
socket that can be used to power other items in the Chordette range from the one
Scamp power supply. The high current Scamp power supply should be connected to
the 4 pin power connector last, once all other connections are made.

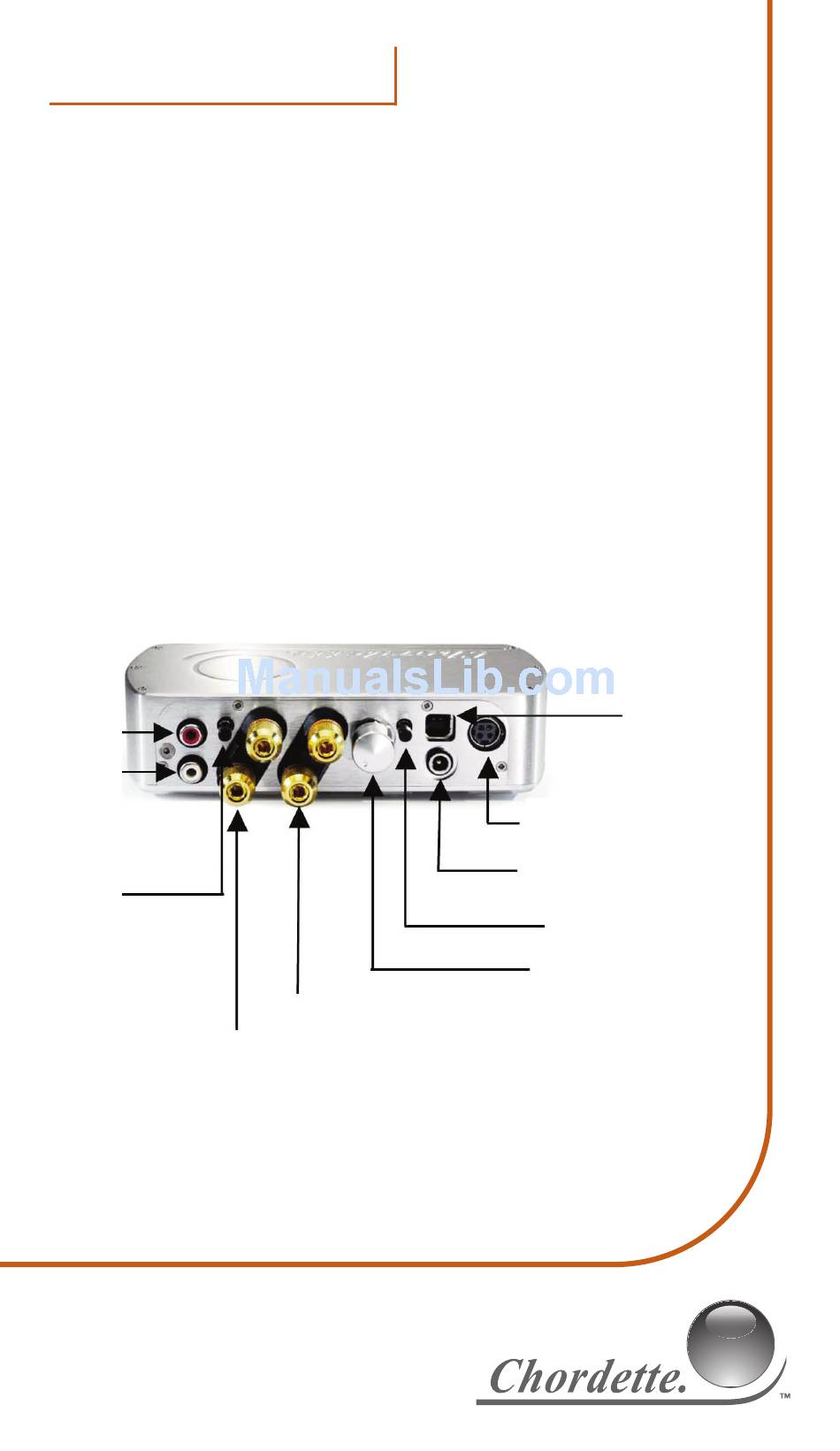

Right input
Left input
Bridging Switch

Input Selection

The input switch allows you to change between the analogue RCA phono input
(switch out) and the USB input (switch in). Set this switch according to which input you
would like to listen to.
Left speaker output
Right speaker output
SCAMP
Stereo Power Amplifier
12V DC 8A power input.
Connect to the Scamp
power supply
12V DC power output connector
(Use to power other items in Chordette range)
Input select switch
Gain control
USB Audio input
Connect to a computer
