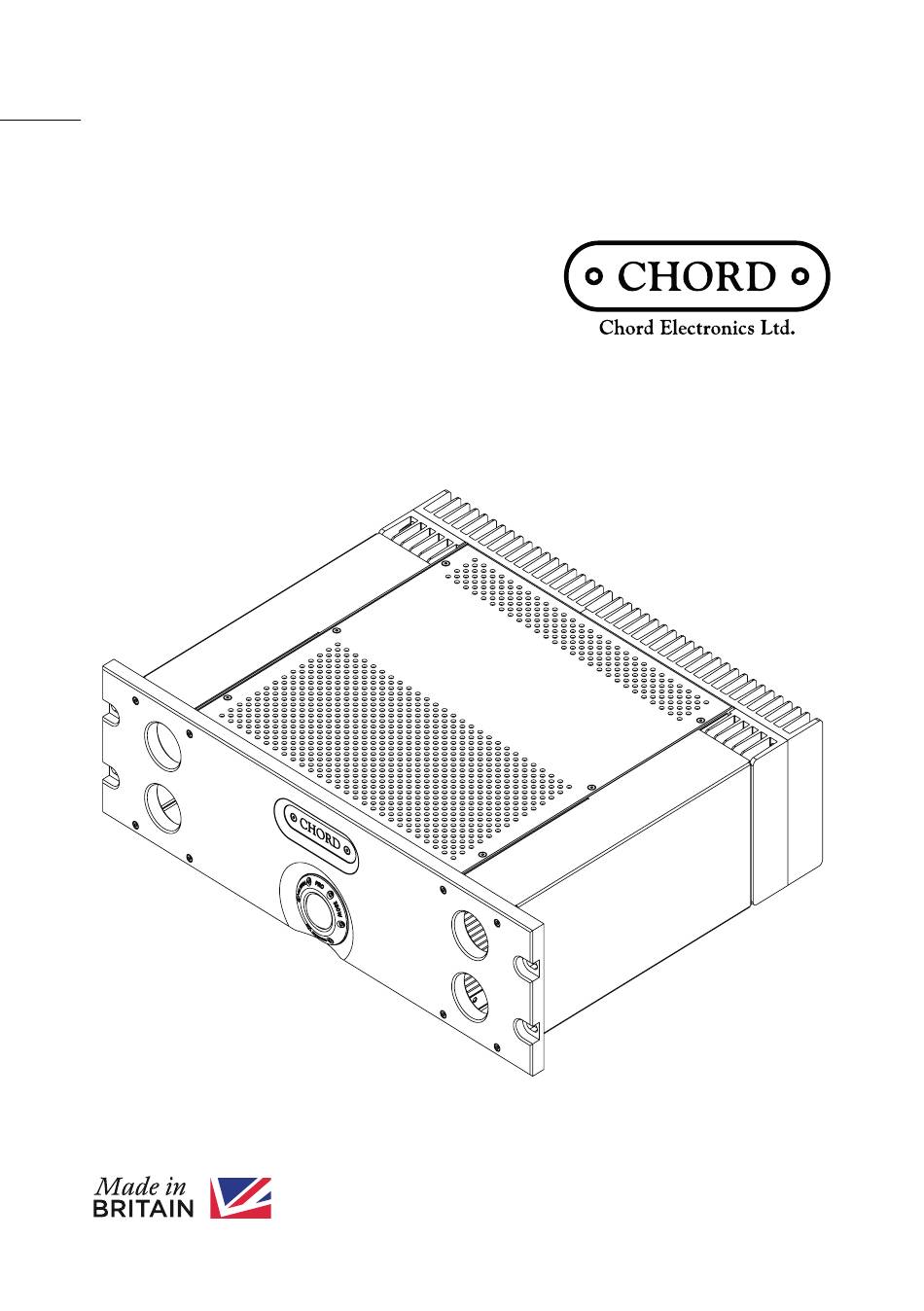

- Page 1 Chord Electronics The Pumphouse, Farleigh Lane, East Farleigh, Kent, Product Communication | English ME16 9NB. Great Britain. +44 (0) 1622 721 444 info@chordelectronics.co.uk chordelectronics.co.uk ULTIMA Pro Mono 1000W Manual...
-
Page 2: Table Of Contents
Chord Electronics ULTIMA Pro Mono | User manual Contents Introduction Support and warranty Connections and controls Operation Technical specifications... -
Page 3: Introduction

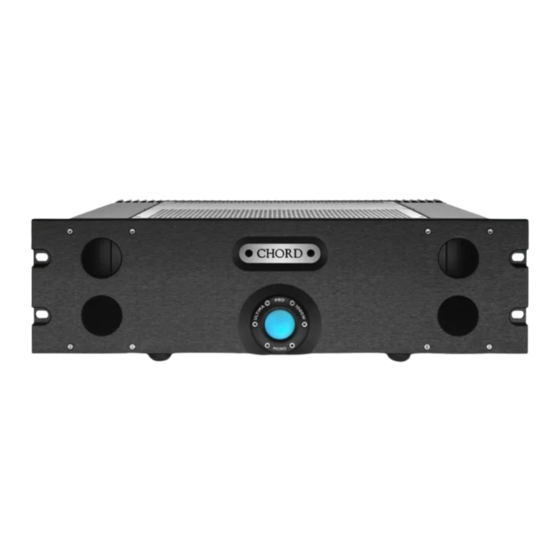

Chord Electronics ULTIMA Pro Mono | User manual 2 Introduction The ULTIMA PRO MONO is a British-made high-performance, no-compromise mono power amplifier, with effortless power reserves. With all-new ultra-low-noise circuit topology finessed over three decades, the ULTIMA PRO is a thoroughly modern amplifier with time-proven fit-and-forget performance and reliability. -
Page 4: Support And Warranty
At the point of sale, Chord Electronics Ltd. provides the ULTIMA pro mono with a comprehensive five- year warranty, which covers defects in materials and workmanship through fair usage. The warranty is transferable with proof of purchase, however, the warranty on ex-demonstration units... -
Page 5: Connections And Controls
Chord Electronics ULTIMA Pro Mono | User manual Connections and controls Rear and front panels 2 x sets of speaker outputs Pair of RJ45 network sockes (for 15a IEC AC inlet future upgrades) Grounding post Negative phase input Positive phase input Power button *If you’re using ULTIMA Pro in a rackmountable system, the feet are removable for ease of use, unscrew... -
Page 6: Operation
Chord Electronics ULTIMA Pro Mono | User manual 5 Operation WARNING: Always set the volume to zero before switching on/playback and before connecting/ removing headphones/speakers. Power on/off To power on ULTIMA Pro mono press the large power button once until you feel a click. The power button will now change to a green colour whilst it begins its initial safety checks. - Page 7 Chord Electronics ULTIMA Pro Mono | User manual Below is a useful guide which you can print out to use with the unit. Only wire speaker between red and black speaker terminals. If amplifier enters protection mode, please unplug mains cable, leave for 30 seconds, and...
-
Page 8: Technical Specifications
Chord Electronics ULTIMA Pro Mono | User manual 6 Technical specifications Dimensions 483 mm (W) x 176 mm (H) x 377 mm (D) (1 ½ Rack mount) Frequency response 5 Hz - 180 kHz (0.0 to 0.15 / +0.0 to - 2.9 dB) Output power (RMS) 1000W <1% THD 4Ω...
