Chord Hugo2 User Manual

05
Remote control function
Power
USB
USB COAX1 COAX2
Source Select
Optical
OPT BT Mute
Source Select
Bluetooth
Vol +
Source Select
Crossfeed
Vol -
Select
Filter Select
X-PHD DIM
FILT
Light Dim
Hugo 2's IR sensor is located within the viewing
glass, for optimal performance please do not
obstruct this area.
06
Care instructions
Please only use a dry
cloth to clean your
Hugo 2
Protect your Hugo 2
with an official
Chord Electronics
leather case (sold
separately)
Never directly spray
liquids, including
cleaners, onto Hugo 2
Do not allow Hugo 2 to
3
come into contact with
liquid
3 year limited warranty on hardware
Never poke objects into
18
the exposed connectors
apart from the designated
connectors
18 month limited warranty on internal batteries
07
Important information
USB Compatibility:
Windows PC (Driver on
Chord site), Mac OS X,
Linux, iOS devices and
Android
Coax 1
Source Select
Bluetooth:
Select Bluetooth Input
Coax 2
(Blue) and pair with
Source Select
device using
(Pairing code: 0000)
Mute
Crossfeed:
Gives a more-speaker-
like presentation with
Volume Control
three-stage DSP
spatial effect
08
Specifications
Requires
2x AAA
batteries
Never drop or expose Hugo
To activate your
2 to mechanical shock
warranty you must
register your
product at: chorde-
No user serviceable parts,
lectronics.co.uk/
do not disassemble Hugo
register-product
2. Doing so will void your
warranty. Please contact
your original dealer in the
event of a fault
5°C 40°C
41°F 104°F
Only operate within the
specified temperatures
WARRANTY
WARRANTY
@chordAudio
Line level mode: Charging:
WARNING! 5V 2-amp USB power
Line level supply is required
mode will set to effectively charge
maximum volume on Hugo 2. Any device
all outputs including not capable of
headphones. Please delivering this current
disconnect before will increase charge
continuing. To activate, time and will decrease
press and hold the the play/charge length
Crossfeed (X-PHD)
and Input buttons WARNING!
when turning the unit If the batteries
on. To deactivate, are fully
switch the unit off depleted the unit will
and confirm that the not switch on. Please
volume has reduced connect to a charger
using the colour chart and wait 30mins
supplied within this
manual
Frequency response: 20Hz – 20kHz +/- 0.2dB
Total Harmonic Distortion: <0.0001% 1kHz 3V
RMS 300 ohms
THD and noise at 3V RMS Ref 5.3V: 120dB @
1kHz 300 ohms A Wt
Noise 2.6 uV A Wt: no measurable noise floor
modulation
Signal to noise ratio: 126dB A-weighted
Channel separation: 135dB @ 1kHz 300 ohms
Maximum output level (to clipping at 1% distor-
tion): 94 mW 300 ohms; 740 mW 33 ohms; 1050
mW (8)
Output impedance: 25 milliohms (0.025 ohms)
®
Made in England
/chordelectronics /chordelectronics
www.chordelectronics.co.uk

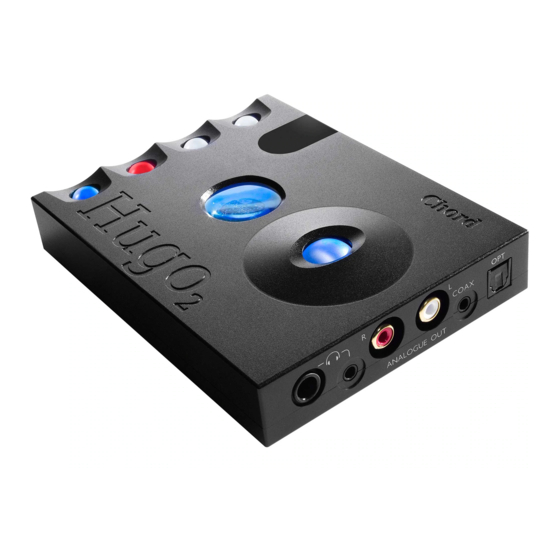

User Manual
Hugo
2
Digital To Analogue
Converter and
Headphone
Amplifier
