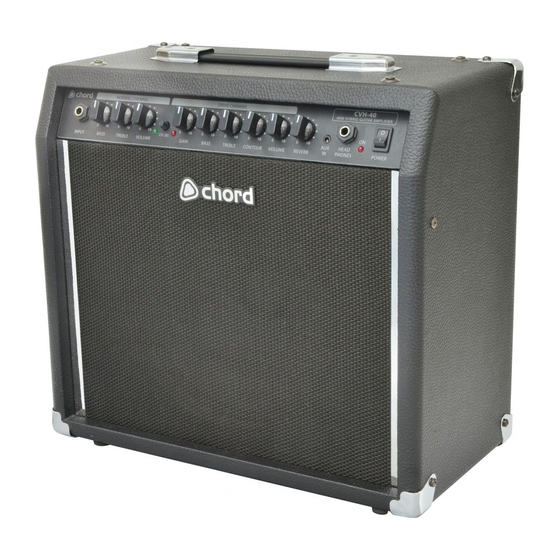

Chord CVH-40 User Manual

Introduction
Thank you for choosing the Chord CVH series valve hybrid guitar amplifier to provide you with power and
flexibility to create your ideal guitar tone. CVH amplifiers hybrid circuitry and features enable you to tailor your
sound to suit a wide range of musical styles. Please read this manual to get the best from your amplifier and
avoid damage through misuse.
1. Guitar input (6.3mm mono jack)
2. Normal channel BASS EQ control
3. Normal channel MIDDLE EQ control (CVH-80)
4. Normal channel TREBLE EQ control
5. Normal channel VOLUME control
6. CHANNEL select switch (footswitch optional)
7. Drivel channel GAIN control
8. Drive channel BOOST switch (CVH-80)
9. Drive channel BASS EQ control
10. Drive channel TREBLE EQ control
11. Drive channel CONTOUR control
12. Drive channel VOLUME control
CVH-40, CVH-80
Valve Hybrid Amplifiers
Item ref: 173.090, 173.091
13. REVERB depth control
14. MASTER volume control (CVH-80)
15. AUX IN 3.5mm jack line input
16. HEADPHONES out 6.3mm jack (mutes speaker)
17. Power on indicator
18. POWER switch
19. IEC mains inlet
20. EXTERNAL SPEAKER output (CVH-80)
21. LINE OUT (CVH-80)
22. EFFECT RETURN input from effects loop
23. EFFECT SEND output to effects loop
24. FOOTSWITCH mono/stereo jack
