Chord Limited
Mojo
Dac Headphone Amplifier
OPERATING INSTRUCTIONS
- ! -
1

Advertisement

Table of Contents
loading

Related Manuals for Chord Mojo

Summary of Contents for Chord Mojo

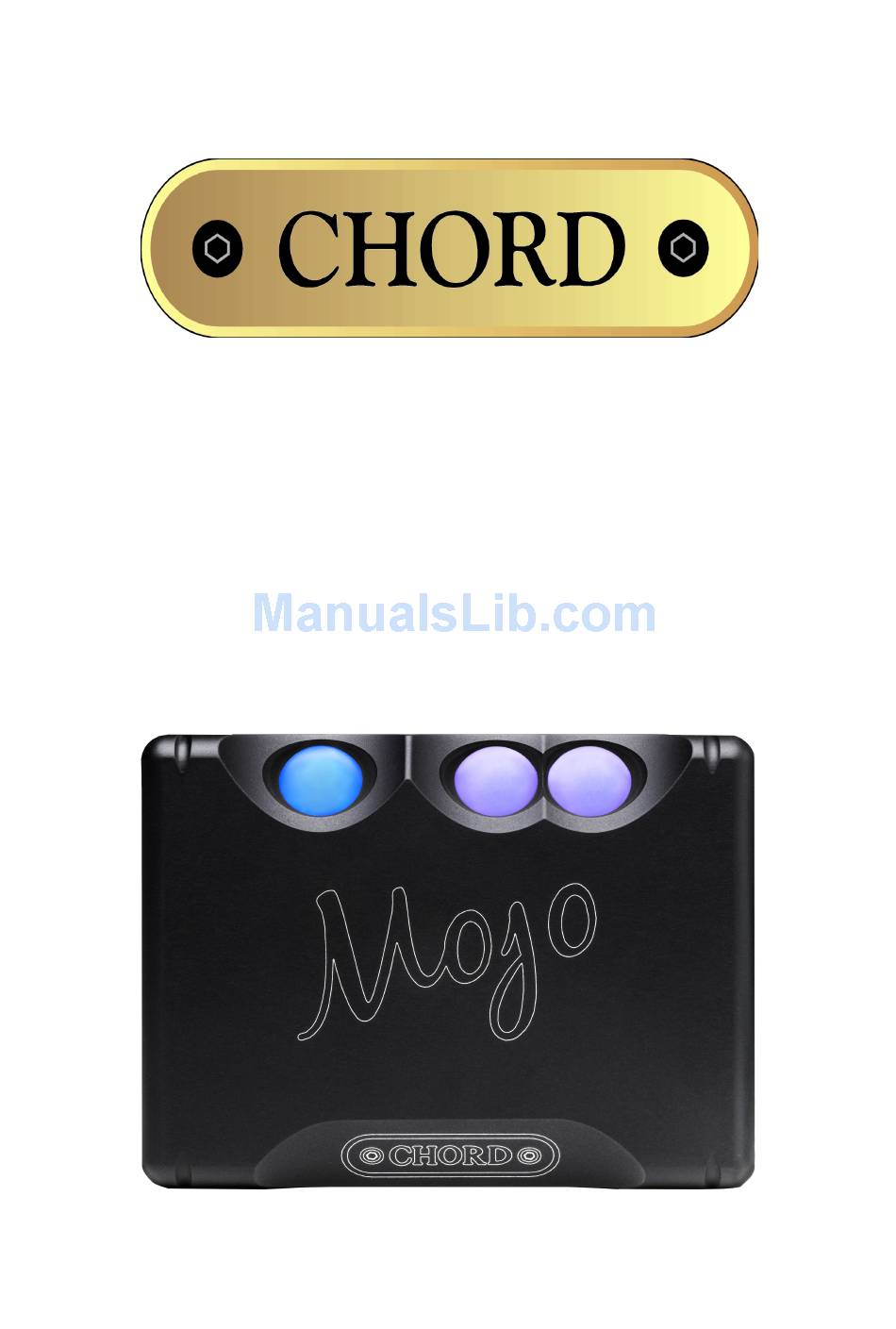

  • Page 1 Chord Limited Mojo Dac Headphone Amplifier OPERATING INSTRUCTIONS - ! -...

  • Page 2: Cleaning

    Never spray directly onto the converter and never use abrasive cleaning, use only a lint free soft cloth. There are no user serviceable parts in Mojo. It should be serviced only by Chord Electronics Limited or their expressly approved service agents.

  • Page 3: Charging

    Mojo Operating Instructions Charging: Mojo can be charged from any 1 Amp USB port using the cable supplied or any other USB A to micro USB B type cable. Just plug the cable into the connector with the battery symbol.

  • Page 4: Brigthness Setting/Line Level Mode

    Memory Mojo has a memory function that will store the volume level and brightness settings even after the unit is switched off.

  • Page 5: Configuring Sound Settings On Windows Pc

    To support high sample rates (96Khz and above) the USB socket on the computer must be USB 2.0 or above. Once connected insert the other end of the cable into the USB audio socket on Mojo. If using a Microsoft computer and the driver hasn’t been installed on your computer, an automatic driver installation wizard may appear.

  • Page 6: Android Device/Apple Ipad/Iphone Operation

    Android Device Operation To use Mojo with an Android device you will need an ‘on the go’ cable ( OTG ). This is a special cable that tells the Android device to run in host mode and enable USB audio. Some devices with newer Android operating system ( 5 and above ) will then play all audio into Mojo.
  • Page 7 De-emphasis coding Mojo will automatically detect when a pre-emphasized recording is being played, and will set the correct de-emphasis filters in the converter section. DSD decoding DSD playback is supported using the DoP Standard 1.0 with 0xFA / 0x05 markers. Please see the playback software manual for more details on configuring DSD support.

  • Page 8: Product Specification

    Product Specification HARMONIC DISTORTION < -103dB SIGNAL TO NOISE RATIO >120dB CHANNEL SEPARATION >125dB @ 1KHz DYNAMIC RANGE 122dB DIGITAL INPUTS 1 x 75Ω SPDIF 3.5mm 44.1KHz - 384KHz 1 x Plastic fibre optic ( TOSlink ) 44KHz - 192KHz, 1 x USB 44KHz –...
