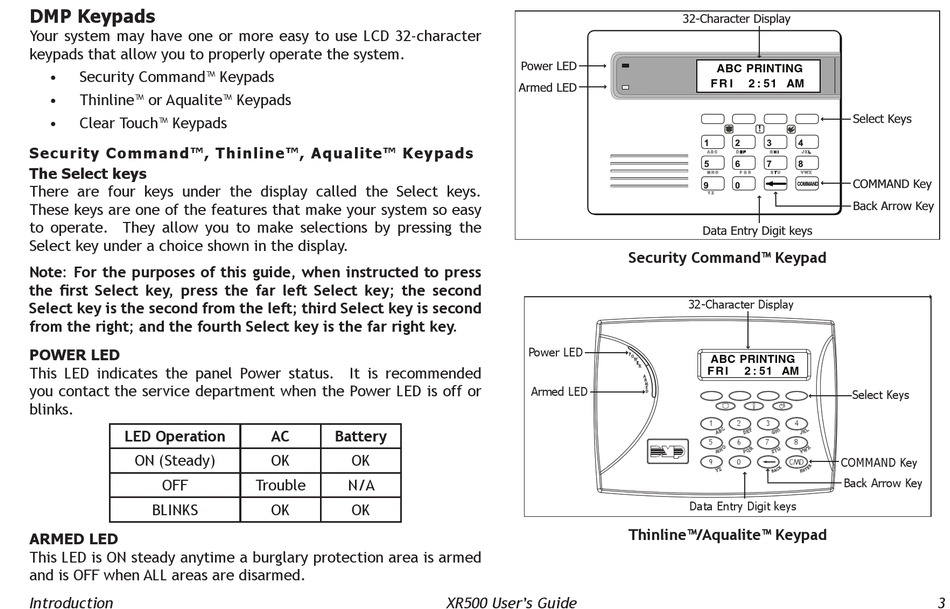

DMP Keypads

Your system may have one or more easy to use LCD 32-character
keypads that allow you to properly operate the system.
• Security Command™ Keypads
• Thinline™ or Aqualite™ Keypads
• Clear Touch™ Keypads
Security Command™, Thinline™, Aqualite™ Keypads
The Select keys
There are four keys under the display called the Select keys.
These keys are one of the features that make your system so easy
to operate. They allow you to make selections by pressing the
Select key under a choice shown in the display.
Note: For the purposes of this guide, when instructed to press
the first Select key, press the far left Select key; the second
Select key is the second from the left; third Select key is second
from the right; and the fourth Select key is the far right key.
POWER LED
This LED indicates the panel Power status. It is recommended
you contact the service department when the Power LED is off or
blinks.
LED Operation
ON (Steady)
OFF
BLINKS
ARMED LED
This LED is ON steady anytime a burglary protection area is armed
and is OFF when ALL areas are disarmed.
Introduction
AC Battery
OK OK
Trouble N/A
OK OK
���������
���������
Power LED
Armed LED
XR500 User's Guide
��������������������
������������
�
� � ���� � � � �������
� � � � �
�
� � � �
� � � � � � � � �� � �� � � �
� � �
�
� � � � � � � � � � ��
�������
� �
� �
����������������������
Security Command™ Keypad
32-Character Display
ABC PRINTING
F R I 2 : 51 AM
1 2 3 4
5 6 7 8
9 0 CMD
Data Entry Digit keys
Thinline™/Aqualite™ Keypad
�����������
�����������
��������������
Select Keys
COMMAND Key
Back Arrow Key
3
