Super Circuits CCR-1 Quick Start Manual

CCR-1 Covert Camera System
Quick Start Guide

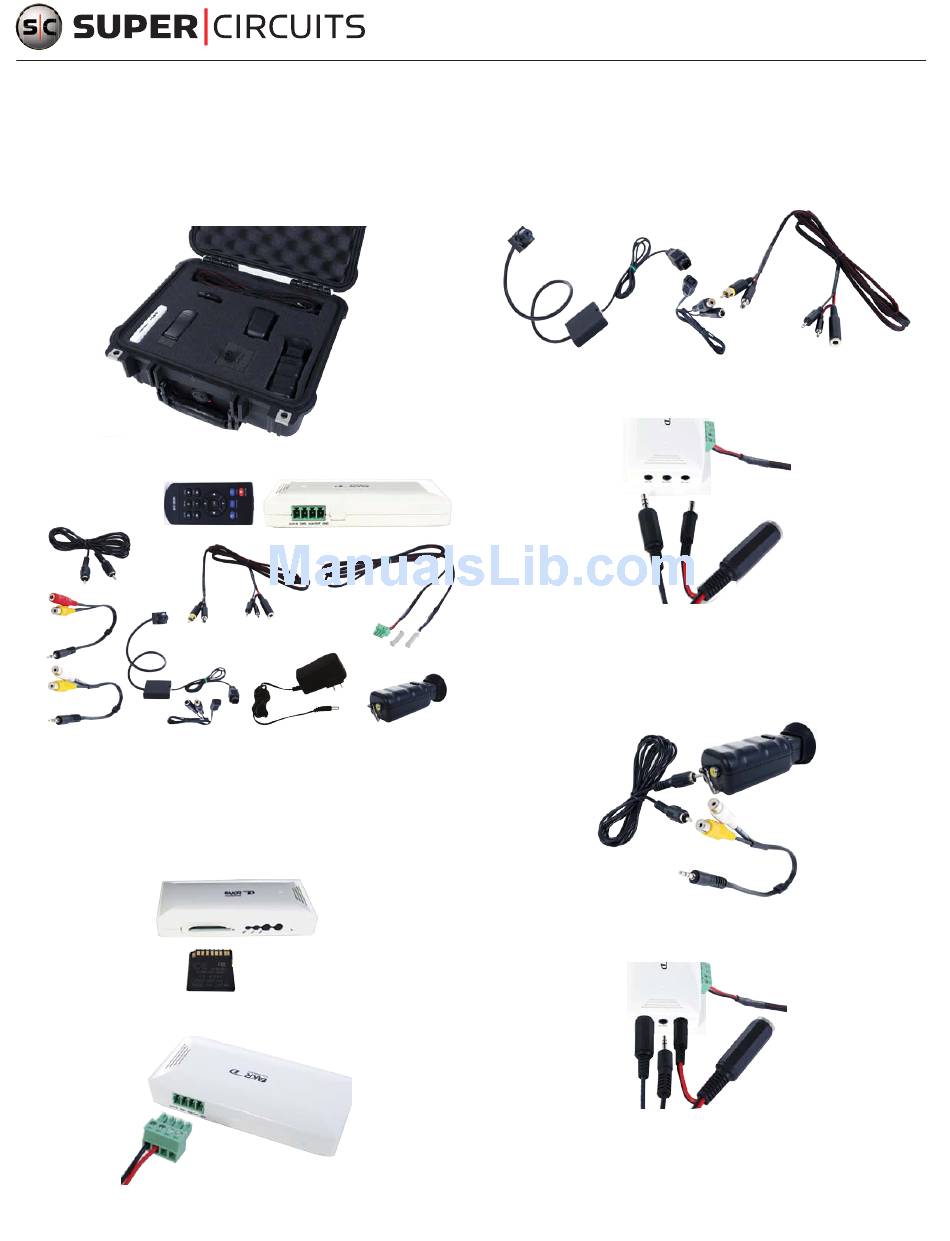

The CCR-1 kit includes a snake camera, alarm (reed) switch and magnet, DVR, a
MON-1 setup monitor, and associated cables and accessories.
DVR Remote Control
RCA Male to
RCA Male Cable
Video - In
Cable
Audio - Video
Out
Cable
Snake Camera
and Adapter
CCR-1 System Major Components

Step 1. Connections

insert an SD card into the DVR.
•
Connect the alarm switch cable to the DVR.
•
www.supercircuits.com
1
DVR
Alarm
Switch
Video - Power
Cable
Cable Harness
Power Adapter
Mount the alarm switch in an appropriate location. Position the magnet close to
•
the switch.
Connect the Snake camera adapter cable to the camera drop cable, and to the
•
RCA male video – power end of the video – power cable harness as shown
below.
Connect the other end of the video – power cable harness to the mating AV IN
and DC 12V ports on the DVR.
Install 3 AAA batteries in the MON-1 setup monitor.
•
Connect one end of the RCA male to RCA male cable to the video in port on
the MON-1 setup monitor, then connect the other end of the cable to the video
(yellow RCA female) connector of the Audio - Video Out cable.
MON-1
Setup
Monitor
Connect the other end of the Audio - Video Out cable into the AV OUT connector
on the DVR.
Continue ➥
CCR-1_QuickStart
