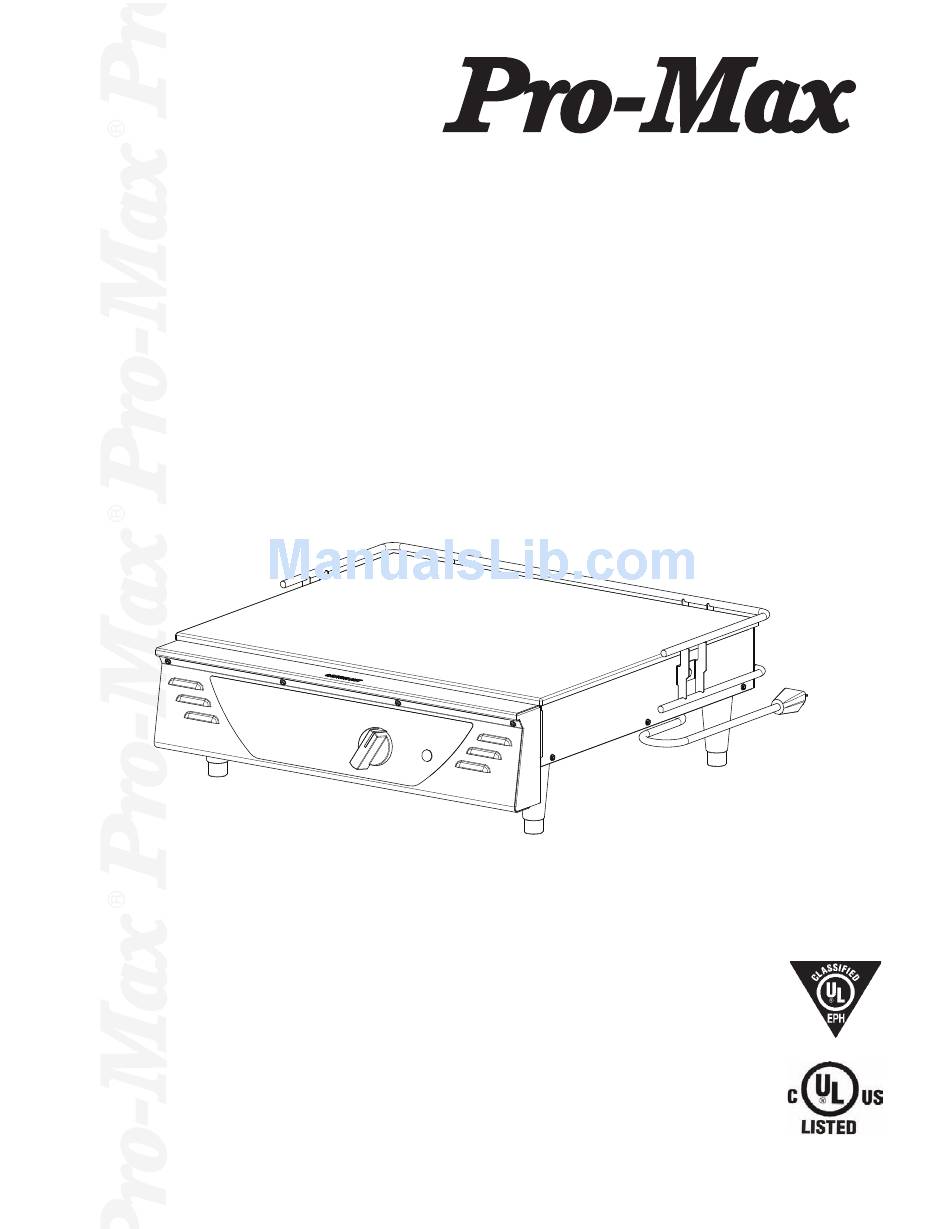

- Page 1 ® TORTILLA GRILL MODEL TG1 & TG2 Installation and Operation Instructions 2M-Z10809 Rev. C 1/20/10 IL1374 TG-20V...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. - Page 3 Tortilla Grill Specifications Model TG1 Model TG2 IL1375 Approxomate Description Dimensions Electrical Specifications Weight Platen Size Width Depth Height Shipping Model No W x D Inches Voltage Wattage Amps NEMA# Inches Inches Inches lbs. (kg) (cm) (cm) (cm) (cm) TG-20V 25.9...
-
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the CAUTION general public in food service locations. -
Page 5: Operating Procedure
OPERATING PROCEDURE Turn temperature control knob from "off" position to the desired temperature. This will automatically heat the griddle to the temperature the control knob is set. The thermostat will shut off automatically when the desired temperature is reached, and the pilot light will remain on until until the unit is turned off. - Page 6 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
- Page 9 Nameplate MODEL TG1 Tortilla Grill Assembly STAR MANUFACTURING INTERNATIONAL, INC. SK2302 Rev. A 6/03/08...
-
Page 10: Parts List
STRAIN RELIEF 2K-Z0714 SHORTY-BUSHING 2T-Z5958 THERMOSTAT D6-Z10669 CONTROL PANEL FRONT 2C-1487 6-32 x 1/4 PHILLIPS ROUND HEAD MACHINE SCREW 2M-Z10494 CONTROL LABEL TG1 2J-Y6690 INDICATOR LIGHT RED 2R-Z1298 TEMPERATURE KNOB 2C-Z6925 SCREW #8X.5 HEX SS SELFTAP 2C-z7165 #8-32 KEP NUT D6-Z10498... - Page 11 11 10 27 10 11 MODEL TG2 STAR MANUFACTURING INTERNATIONAL, INC. Tortilla Grill Assembly SK2303 Rev. A 6/03/08...
- Page 12 PARTS LIST January 20, 200, Rev. C TORTILLA GRILL MODEL Number Part Number Description and Model Designation Number Unit 2F-Z8593 PLATEN 40 X 25 D6-FG0012 THERMOSTAT BULB TUBE ASSY 2C-1492 SCREW 8-32X1/4 RHP STL NP 2N-Z8575 ELEMENT 825W/208V D6-Z8731 BRACKET-ELEMENT 2C-Z8723 SCREW 8-32 X .5 HWHD STNP 2H-Z8584...
