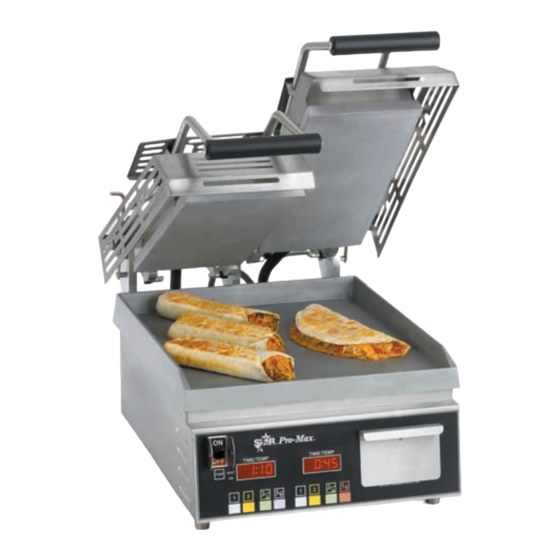

- Page 1 ® SPLIT LID TABLE TOP TWO SIDED GRILL MODEL GR14SPTK-CN (9D-GR14SPTK-CN) Installation and Operation Instructions 2M-Z11270 Rev. E 9/30/11...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Specifications
Inches NEMA Shipping Installed Model No Grill Surface (cm) (cm) Inches (cm) (cm) Voltage Wattage Amps Plug lbs. (kg) lbs. (kg) 23 1/8" 14 1/4" 31 5/8" GR14SPTK-CN Aluminum 16" (40.6) 2,300 CH2-16P 81 (37.8) 68 (30.9) (58.7) (36.3) (80.3) -
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and ex- perienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... - Page 5 PRESET TIME AND TEMPERATURE If adjustments are required, please refer to the time or temperature programming section in this manual. °F/°C CONVERSION To change the temperature display from °F to °C or from °C to °F, hold the TEMP button while the unit is turned off.
- Page 6 To Program Time and Temperature: . Press and hold "TEMP" (actual temperature displays). . While holding "TEMP," press and hold any program button on the Left one second, the LED above the program number light and the display reads "_ _ _ _." Enter the four-digit security code sequence, 4, 3, 2, 1.
-
Page 7: Monthly Inspection
MONTHLY INSPECTION Check all bolts/screws and tighten if necessary. CLEANING (NON-CHROME SURFACES) Begin cleaning procedure by using the operating procedures within your organization, or follow the steps below: . If particles adhere to the cooking surface during the day, scrape them off with a spatula. NOTE: It is best not to let food residue onto the grill, as food build-up on the grill will increase sticking and smoking. - Page 8 If this procedure is not followed, it may affect the warranty status of the unit. LIMITED EQUIPMENT WARRANTY FOR THE GR14SPTK-CN (9D-GR14SPTK-CN) All workmanship and material in Star products have a one (1) year limited warranty on parts & labor. Such warranty is limited to the original purchaser only and shall be effective from the date the equipment is placed in service.
- Page 9 WITH THE BOTTOM PLATE REMOVED. THE TOP DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT. WIRE DIAGRAM, 230V, 2300 WATT SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE MODEL: GR14SPTK-CN STAR MANUFACTURING INTERNATIONAL INC. SK2350 Rev - 2/12/08...
- Page 10 铭牌 Nameplate 有些部件只供图示， 有时不一定需要。 SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE 型号GR14SPTK-CN STAR MANUFACTURING INTERNATIONAL, INC. MODEL - GR14SPTK-CN SK2333 REV. A 12/04/08...
-
Page 11: Parts List
PARTS LIST September 0, 0, Rev. E GRSPTK-CN Split Lid Table Top Grill MODEL Part Number Number Description 名称 2A-Z6484 PLATE (COUNTER BALANCE MOUNT) 开启平衡装配板 D9-GR0150 GREASE CABINET ASSEMBLY 接油盘柜组装件 D9-GR0425 BODY ASSEMBLY 机身 D9-GR0177 BURN GUARD ASSEMBLY - LEFT 热防护板... - Page 12 PARTS LIST September 0, 0, Rev. E GRSPTK-CN Split Lid Table Top Grill MODEL Part Number Number Description 名称 D9-Z11677 INSULATION BAFFLE 隔热棉挡板组装件 D9-Z3826 INSULATION - BAFFLE 隔热棉-挡板 2A-Z6604 SPACER - INSULATION PLATE 挡圈-隔热棉挡板 2C-08-07-0285 SCREW 10-24X3/4X3/8 TYPE 2 HEX DBL END STL 不锈钢六角双头牙螺丝10-24X3/4X3/8 2C-Z2992 BOLT 1/4-20X1 PHP STL NP...
