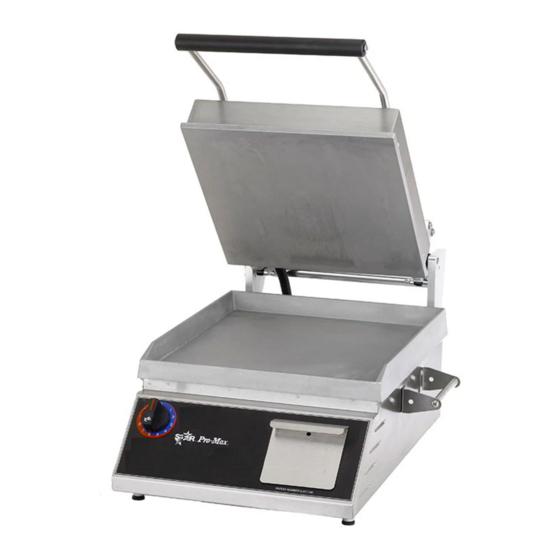

Pro-Max CG10 Installation And Operation Instructions Manual

Two-sided grills
Hide thumbs Also See for CG10:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Instructions and Operating Manual
Enlarged version
®

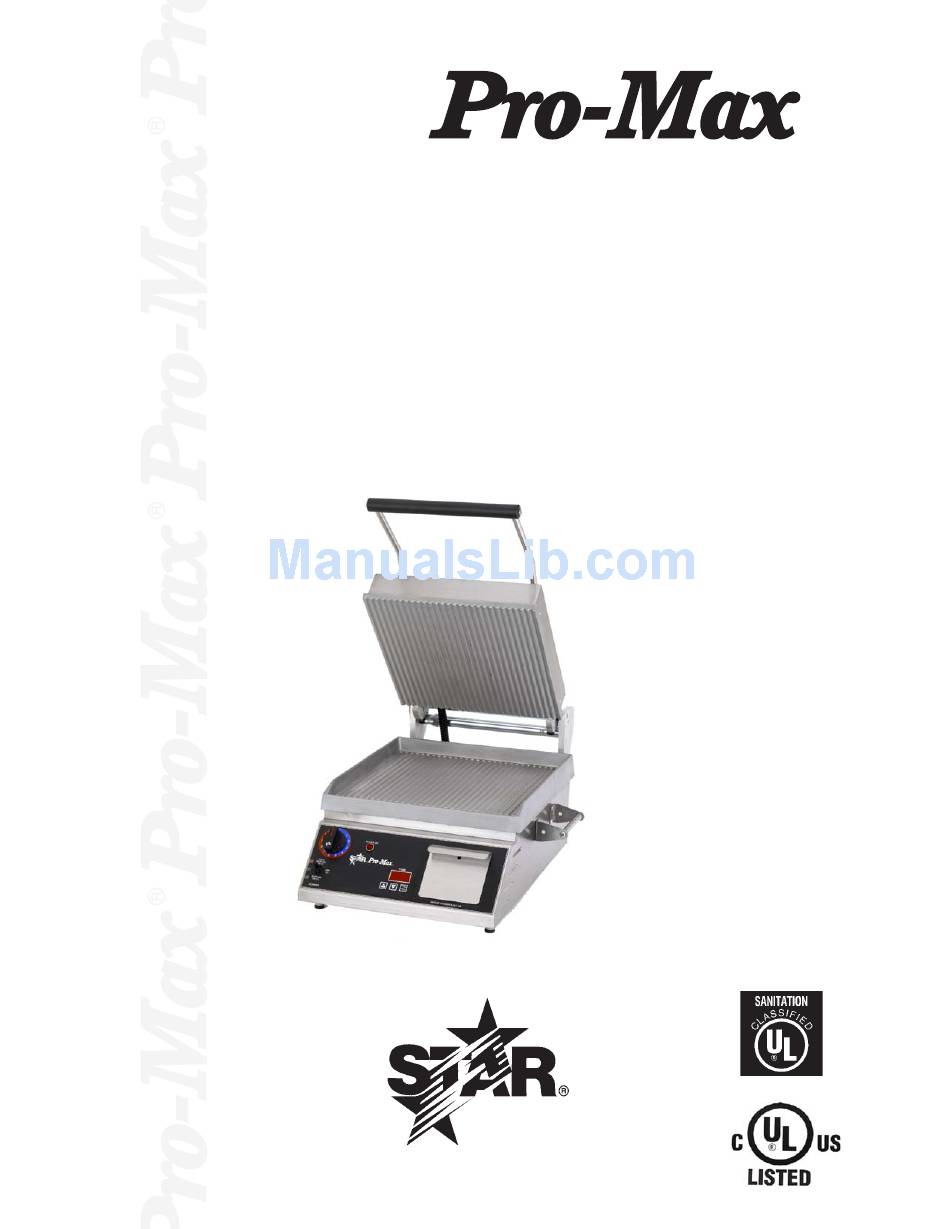

TWO-SIDED
GRILLS
MODEL
CG10, GR10
CG14 & GR14
Installation and
Operation
Instructions
2M-Z2906 Rev. O 7/23/2010
14 x 14 Grooved Grill


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CG10 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro-Max CG10

Summary of Contents for Pro-Max CG10

  • Page 1 ® TWO-SIDED GRILLS MODEL CG10, GR10 CG14 & GR14 Installation and Operation Instructions 2M-Z2906 Rev. O 7/23/2010 14 x 14 Grooved Grill...

  • Page 2: Safety Symbol

    SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual ac- companying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability.

  • Page 3: Product Identification

    PRODUCT IDENTIFICATION Star Manufacturing International, Inc. Two Sided Grills Models: GR10-120V- Smooth Top and Bottom Platens Aluminum, without Timer GR10-120VC-Smooth Top and Bottom Platens Aluminum, without Timer Canadian GR10T-120V- Smooth Top and Bottom Platens Aluminum, with Timer GR10T-120VC-Smooth Top and Bottom Platens Aluminum with Timer Canadian GR10-240V- Smooth Top and Bottom Platens Aluminum, without Timer GR10T-240- Smooth Top and Bottom Platens Aluminum, with Timer GR10I-120V- Smooth Top and Bottom Platens Cast Iron, without Timer...
  • Page 4 PRODUCT IDENTIFICATION - Continued Star Manufacturing International, Inc. Two Sided Grills Models: CG14T-120V- Aluminum Grooved Top and Bottom Platens, with Timer CG14T-120VC-Aluminum Grooved Top and Bottom Platens, with Timer Canadian CG14-240V- Aluminum Grooved Top and Bottom Platens, no Timer CG14T-240V-Aluminum Grooved Top and Bottom Platens, with Timer GR14-240V- Aluminum Smooth Top and Bottom Platens, without Timer GR14T-240V- Aluminum Smooth Top and Bottom Platens, with Timer GR14-120V- Aluminum Smooth Top and Bottom Platens, wihtout Timer...

  • Page 5: General Installation Data

    GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. Before using your new equipment, read and understand all the instructions &...

  • Page 6: Electrical Specifications

    ELECTRICAL SPECIFICATIONS Model No. Volts Rated Wattage Amps NEMA Plug GR 10 1800 5-15P GR 10 1800 6-15P GR 10I 1800 5-15P GR 10I 1800 6-15P CG 10I 1800 5-15P CG 10I 1800 6-15P Note: For Canada, 120 volt units listed above have NEMA 5-20P plug. Model No.

  • Page 7: Knob Setting

    KNOB SETTING Knob Position Approx. Temp 175°F / 79°C 200°F / 93°C 250°F / 121°C 300°F / 148°C 350°F / 176°C 400°F / 204°C 450°F / 232°C 500°F / 260°C 550°F / 287°C ON/OFF ROCKER SWITCH (TIMER MODELS ONLY) The switch turns the unit on and off. The switch has three positions: With the switch in this position, both top and bottom platens will heat.
  • Page 8 CLEANING (NON CHROME SURFACES) Begin cleaning procedure by using the operating procedures within your organization, or follow the steps below: 1. If particles adhere to the cooking surface during the day, scrape them off with a spatula. NOTE: It is best not to let food cook onto the grill, as food build-up on the grill will increase sticking and smoking.

  • Page 9: Operation Troubleshooting

    1. Improperly installed. 2. Incorrect voltage applied to electric Pro-Max units allowing the surface to overheat and discolor. 3. The misuse of any instrument or tool which scratches or makes indentations in the surface which could cause the surface to peel, flake, or chip off.
  • Page 10 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same.
  • Page 14 TOP ELEMENT 15 AMP PLUG NEMA 5-15P ON ALL 120V UNITS. NEMA 6-15P ON 240V, 1,800 WATT UNITS. 20 AMP PLUG NEMA 6-20P ON 240V, 3,600 WATT UNITS. GREEN INLET IEC 320 16A WHITE BLACK TERMINAL BLOCK TRANSFORMER 230V UNITS BOTTOM ELEMENT THERMOSTAT INDICATOR LIGHT...
  • Page 15 Hinge Mech. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR INTERNATIONAL HOLDINGS, INC. COMPANY MODEL GR10I,CG10I, SK2455 REV.

  • Page 16: Parts List

    PARTS LIST July 23, 2010, Rev. O 10' TWO SIDED GRILLS MODEL Fig No Part No Description Application 2C-Z2992 SCREW, HANDLE 2V-Z2990 HANDLE - 10” 2B-Z2988 ARM - 10” 2C-08-07-0040 2C-08-07-0262 WASHER 2C-Z2992 SCREW, ARM TO BRACKET D9-Z2038 HOUSING-TOP-10” 2C-Z3200 PIN - TOP HOUSING 2C-Z2855 RETAINER RING...
  • Page 17 PARTS LIST July 23, 2010, Rev. O 10' TWO SIDED GRILLS MODEL Fig No Part No Description Application D9-Z3071 BRACKET-HANDLE 2V-Z3072 HANDLE - SIDE D9-GR0034 GREASE CABINET ASSY. All Models D9-GR0517 GREASE DRAWER ASSY D9-Z2711 D9-Z12973 BASE BOTTOM - 10” 120VC MODELS D9-GR0246 230V MODELS...
  • Page 18 PARTS LIST July 23, 2010, Rev. O 14' TWO SIDED GRILLS MODEL Fig. No Part No Description Application 2C-Z2992 SCREW, HANDLE CG142TB, CG14B, CG14E, CG14IB, CG14IGTB, CG14ITB, 2V-Z11395 HANDLE CG14ITGTB240, CG14ITLB, CG14ITSC, CG14TB, GR14B, GR14E, GR14IB, GR14ITB, GR14SNB, GR14TB 2V-Z2989 HANDLE - 14”...
  • Page 19 PARTS LIST July 23, 2010, Rev. O 14' TWO SIDED GRILLS MODEL Fig. No Part No Description Application 2E-Z2894 TERMINAL BLOCK D9-GR0054 REAR LINER ASSY. - 14”/BOT CG14, GR14, CG14T, GR14T D9-GR0080 REAR LINER ASSY. - 14”/REAR CG14I, GR14I, CG14IGT, CG14IT, GR14IT, CG14ITGT D9-GR0201 REAR LINER ASSY.
  • Page 20 PARTS LIST July 23, 2010, Rev. O 14' TWO SIDED GRILLS MODEL Fig. No Part No Description Application D9-Z8082 BTM ELEMENT RET. PLATE 14” 2N-Z1981 BTM ELMNT, HEATING, 1000W/120 CG14, CG14T, GR14, GR14T, CG14IT-120V 2N-Z2022 BTM ELMNT, HEATING, 1000W/240 CG14, CG14T, GR14, GR14T D9-GR0534 BTM ELMNT ASSY, 1000W/240 GR14E-240V...
