Summary of Contents for Pro-Max CG28 SERIES

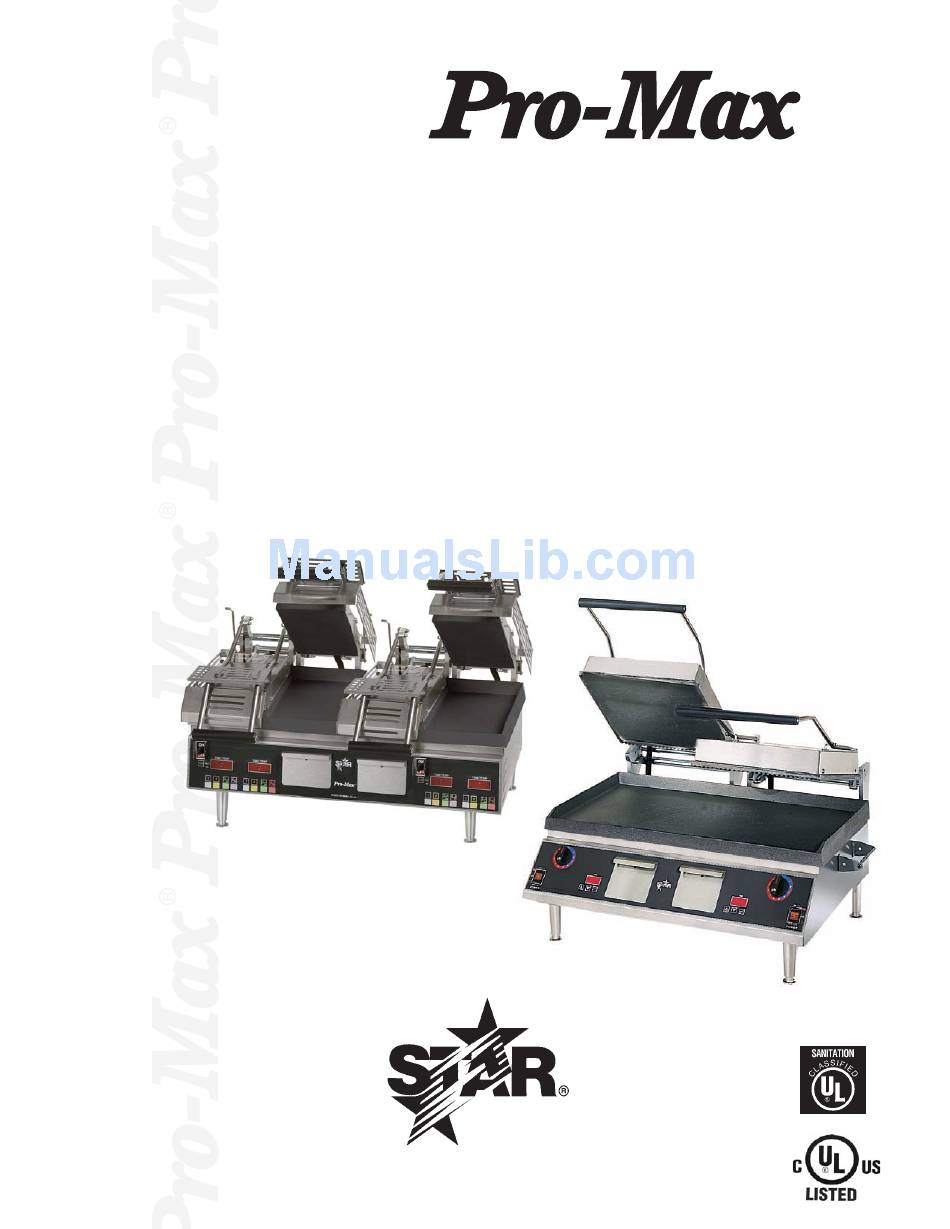

- Page 1 ® TWO-SIDED GRILLS MODEL CG28, GR28 SERIES Installation and Operation Instructions 2M-Z9667 Rev. E 1/17/2013 GR28SPTI GR28IT...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: Product Identification
PRODUCT IDENTIFICATION Star Manufacturing International, Inc. Two Sided Grills Models: GR28I-240V-Smooth Iron Platens without Timers GR28I-240VC-Smooth Iron Platens without Timers, Canadian GR28IT-240V-Smooth Iron Platens with 2 Timers GR28IT-240VC-Smooth Iron Platens with 2 Timers, Canadian GR28ITGS-240V-Iron Platens, 1 Grooved & 1 Smooth Top, Smooth Bottom with 2 Timers GR28ITGS-240VC-Iron Platens, 1 Grooved &... -
Page 4: Ventilation And Clearances
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... -
Page 5: Manual Control Operation
Initial Start Up Level unit using the adjustable feet under the unit (approximately 1/2" adjustment). Before using the unit for the first time, clean and heat for approximately 30 minutes. The grill may emit a small amount of smoke as the cooking surfaces reach 300-350°F. Do not be alarmed, as the smoke is caused by oils associated with the manufacturing process and will stop when the grill reaches 400°F. -
Page 6: Monthly Lubrication/Inspection
Daily Operation Always allow 30 minutes of preheat time before loading the unit with product. Failure to allow sufficient preheat time will result in unsatisfactory cooking of the first load. Check the power cord to insure that it is plugged into a proper outlet. Check that the switch and thermostat control are turned on. -
Page 7: Operation Troubleshooting
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON THE TABLE/ COUNTER. KEEP AWAY FROM RUNNING WATER. CAUTION DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP. DO NOT USE ICE ON THE COOKING SURFACE! BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS UNPLUGGED AND IS NOT TOO HOT. -
Page 8: Electronic Control Operation
ELECTRONIC CONTROL OPERATION Preset Times And Temperatures If adjustments are required, please refer to the time or temperature programming section in this manual. °F/°C CONVERSION To change the temperature display from °F to °C or from °C to °F, hold the TEMP button while the unit is turned off. - Page 9 Right Side (Timer only): 1. To change the time on right, press and hold the TEMP button, then press and hold any program button on the right for one second. The LED above the program button will light and the right display will read "_ _ _ _." Enter the four-digit security code sequence: 4, 3, 2, 1.
- Page 10 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit.
- Page 14 See Detail for “B-Style” SPTI Counter Balance Shown SPTI MODELS ONLY HOUSING ARM CONNECTION Earlier Version Version Part of Item 26 SPTI This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE OR...
-
Page 15: Parts List
PARTS LIST January 17, 2013, Rev. E GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI MODEL Number Part Description Model Number Unit Number D9-GR0324 TOP CENTER BURN GUARD ASSY SPTI, IEA D9-GR-0189 TOP ENDS BURN GUARD ASSY SPTI, IEA D9-GR0335 BURN GUARD ASSY LEFT SPTI, IEA D9-GR0334 BURN GUARD ASSY RIGHT... -
Page 16: Manual Control
MANUAL CONTROL ELECTRONIC CONTROL This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE OR STAR MANUFACTURING INTERNATIONAL INC. - Page 17 PARTS LIST January 17, 2013, Rev. E GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI MODEL Number Part Description Model Number Number Unit PS-GR0365 KIT, 2F-Z1962 BOTTOM CASTING - SMOOTH GR28I, GR28IT, CG28IGT, CG28ITGT, GR28ITGS PS-GR0366 KIT, 2F-Z1963 BOTTOM CASTING - GROOVED CG28I, CG28IT 2C-08-07-0117 SCREW 10-24X3/4 FZA...
- Page 18 PARTS LIST January 17, 2013, Rev. E GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI MODEL Number Part Description Model Number Number Unit 2M-Z3045 OVERLAY w/TIMER, Rocker Switch CG/GR28IT 2M-Z7431 OVERLAY w/TIMER, Toggle Switch CG/GR28IT 2M-Z3088 OVERLAY w/PILOT LIGHT CG/GR28I 2M-Z9107 OVERLAY w/TIMER SPTI 2K-Z1971 SPACER...
- Page 19 Top Housing MODEL: SG HINGE MECHANISM PS-GR0536, PS-GR0537, PS-GR0538 PS-GR0560, PS-GR0561 STAR MANUFACTURING INTERNATIONAL, INC. SK2507 Rev. D 1/15/14...
- Page 20 PARTS LIST September 23, 2013 HINGE MECHANISM TWO SIDED GRILLS Fig No Part No Description Application 2A-Z15740 SPRING GUIDE MTG ROD, 14” ALL SINGLE 14” UNITS 2A-Z11404 SPRING GUIDE MOUTING ROD SPLIT TOP 2A-Z16413 MOUNTING ROD 10” UNITS 2A-Z15739 ASSEMBLY CROSSBAR, 14” ALL SINGLE 14”...
