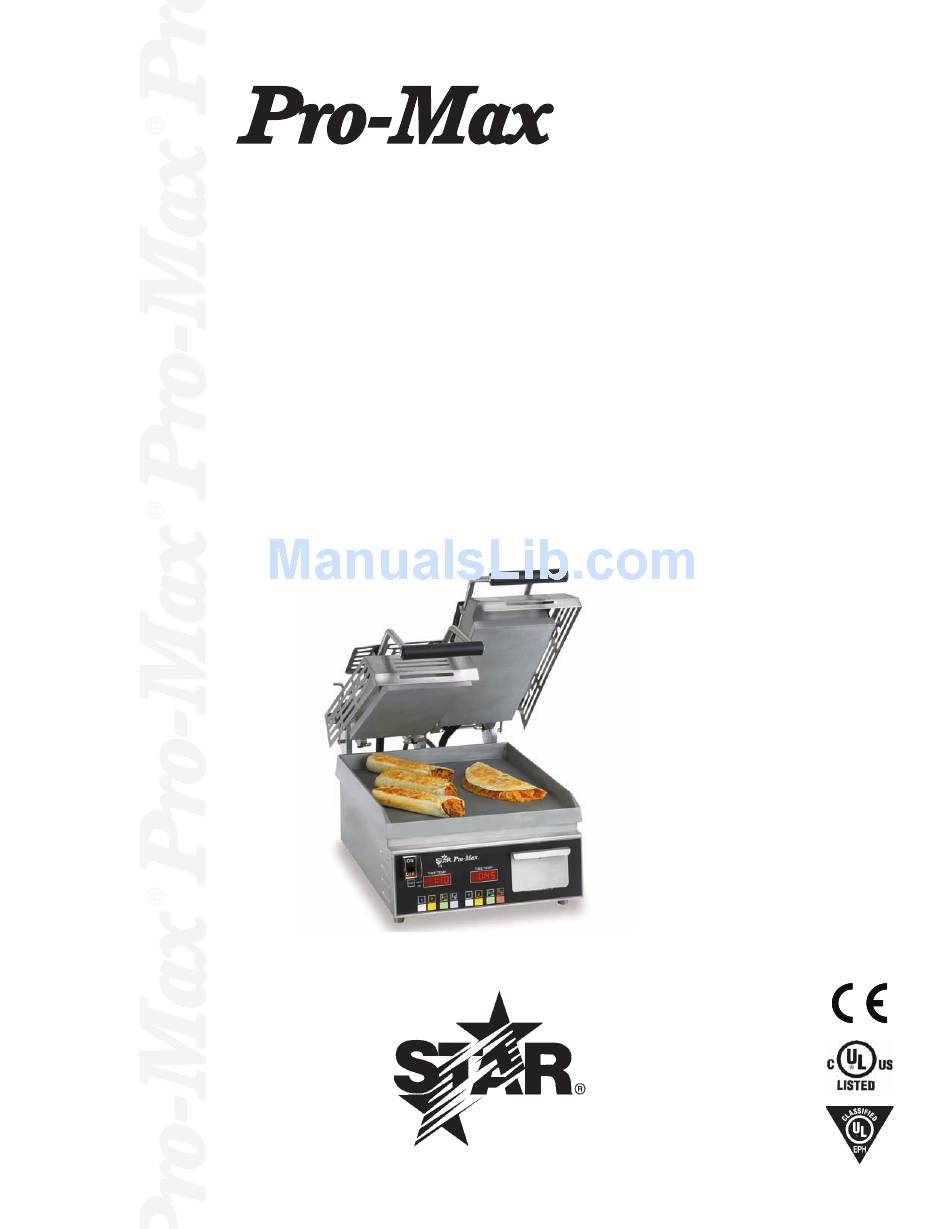

- Page 1 ® SPLIT LID TABLE TOP TWO SIDED GRILL MODEL CG14SPT, CG14STE, CG14SPTI, CG14SPTIG GR14SPTA, GR14SPTC, GR14STE GR14SPTK, GR14SPTI, GR14SPTIP Installation and Operation Instructions 2M-Z5818 Rev. N 3/09/2011 GR14SPT...
-
Page 2: Safety Symbol
SAFETY SYMBOL These symbols are intended to alert the user to the presence of important operating and maintenance instructions in the manual accompanying the appliance. RETAIN THIS MANUAL FOR FUTURE REFERENCE NOTICE Using any part other than genuine Star factory supplied parts relieves the manufacturer of all liability. -
Page 3: General Specifications
Grill Surface Inches Inches Voltage Wattage Amps (cm) (cm) Plug Shipping Installed (cm) (cm) lbs. (kg) lbs. (kg) CG14SPT-120C 14 1/4” (36.3) 31 5/8” (80.3) 2,300 19.2 5-30P CG14SPT-120V 14 1/4” (36.3) 31 5/8” (80.3) 2,300 19.2 5-20P Aluminum CG14SPT-230V 14 1/4”... -
Page 4: General Installation Data
GENERAL INSTALLATION DATA This equipment is designed and sold for commercial use only by personnel trained and experienced in its operation and is not sold for consumer use in and around the home nor for use directly by the general public in food service locations. CAUTION Before using your new equipment, read and understand all the instructions &... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS . Turn unit on by placing switch in "ON" position. The "Heat On" indicator, program number and display will flash indicating unit is heating. When the preset temperature is reached, the heating light, display and program light indicator will stop flashing followed by 3 beeps. (Initial startup heating time is approximately 0 minutes). - Page 6 Right Side (Timer only): . To Change the time on the right side, press and hold the "TEMP" button, and press and hold any program button on the right for one second. The LED above the program button will light and the Right Display will read "_ _ _ _."...
- Page 7 . Improperly installed. . Incorrect voltage applied to electric Pro-Max units allowing the surface to overheat and discolor. . The misuse of any instrument or tool which scratches or makes indentations in the surface which could cause the surface to peel, flake, or chip off.
- Page 8 Visit our Website at: www.star-mfg.com Email: service@star-mfg.com THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
-
Page 9: Wire Diagram
WITH THE BOTTOM PLATE REMOVED. THE TOP DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT. SOME ITEMS ARE INCLUDED FOR WIRE DIAGRAM ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE 120V/240V, 2300 WATT MODEL CG14SPT-120V 240V, 3550 WATT CG14SPT-240V (2J-Z6323 CONTROLLER ONLY) CG14SPTI-240V GR14SPTA-120V GR14SPTA-240V GR14SPTK-120C STAR MANUFACTURING INTERNATIONAL, INC. - Page 10 TOP ELEMENT TOP ELEMENT RIGHT LEFT (ELEMENT MAS ALTO) (ELEMENT MAS ALTO) SENSOR - RIGHT BS 1363A PLUG (SENSORIO) (13 AMP) SENSOR - LEFT GREEN / YELLOW (SENSORIO) STRIPE BLUE BROWN TRANSFORMER TERMINAL BLOCK (TRANSFORMADOR) (BLOQUE TERMINAL) RELAY (RELE) 230V UNITS BOTTOM ELEMENT (ELEMENTO MAS BAJO) SWITCH...
- Page 11 120V UNITS PLUG NEMA 5-20P 2,300 WATTS NEMA 5-30P 2,300 WATTS TOP ELEMENT TOP ELEMENT 240V UNITS PLUG RIGHT LEFT NEMA 6-15P 2,300 WATTS (ELEMENT MAS ALTO) (ELEMENT MAS ALTO) NEMA 6-20P 3,550 WATTS SENSOR - RIGHT (SENSORIO) SENSOR - LEFT (SENSORIO) GREEN WHITE...
- Page 12 28.1 NAMEPLATE GR14SPTIP240 4“ LEGS ONLY SOME ITEMS ARE INCLUDED FOR ILLUSTRATIVE PURPOSES ONLY AND IN CERTAIN INSTANCES MAY NOT BE AVAILABLE This drawing contains information confidential to Star Manufacturing International, Inc. No reproduction or disclosure of its contents is permitted. STAR MANUFACTURING INTERNATIONAL, INC.
-
Page 13: Parts List
PARTS LIST March 9, 0, Rev N CG14SPT, CG14SPTIG-120V, 120C, 230V & 240V, CG/GR14STE GR14SPTA, GR14SPTC, GR14SPTK-120V, 120C, 230V & 240V CG/GR14SPTI-240V, GR14SPTIP240 Split Lid Table Top Grill MODEL Item No Part No Description Application 2M-Z2620 LABEL CAUTION, BI-LINGUAL 2C-Z3200... - Page 14 PARTS LIST March 9, 0, Rev N CG14SPT, CG14SPTIG-120V, 120C, 230V & 240V GR14SPTA, GR14SPTC, GR14SPTK-120V, 120C, 230V & 240V CG/GR14SPTI-240V, GR14SPTIP240 Split Lid Table Top Grill MODEL Item No Part No Description Application 2V-Z3252 TOP HOUSING LATCH ROD 2A-Y6142...
- Page 15 PARTS LIST March 9, 0, Rev N CG14SPT, CG14SPTIG-120V, 120C, 230V & 240V GR14SPTA, GR14SPTC, GR14SPTK-120V, 120C, 230V & 240V CG/GR14SPTI-240V, GR14SPTIP240 Split Lid Table Top Grill MODEL Item No Part No Description Application 2A-Z12980 2.5" FOOT BASE SPTC, SPTI, SPTIP 2A-Z11500 4"...
- Page 16 PARTS LIST March 9, 0, Rev N CG14SPT, CG14SPTIG-120V, 120C, 230V & 240V GR14SPTA, GR14SPTC, GR14SPTK-120V, 120C, 230V & 240V CG/GR14SPTI-240V, GR14SPTIP240 Split Lid Table Top Grill MODEL Item No Part No Description Application D9-Z11304 PLATE, COVER SPTIP PS-GR134 KIT, BEARING ASSY, COUNTER BALANCE...
