GE Profile Performance ADVANTIUM SCA2000BAA Service Manual page 57

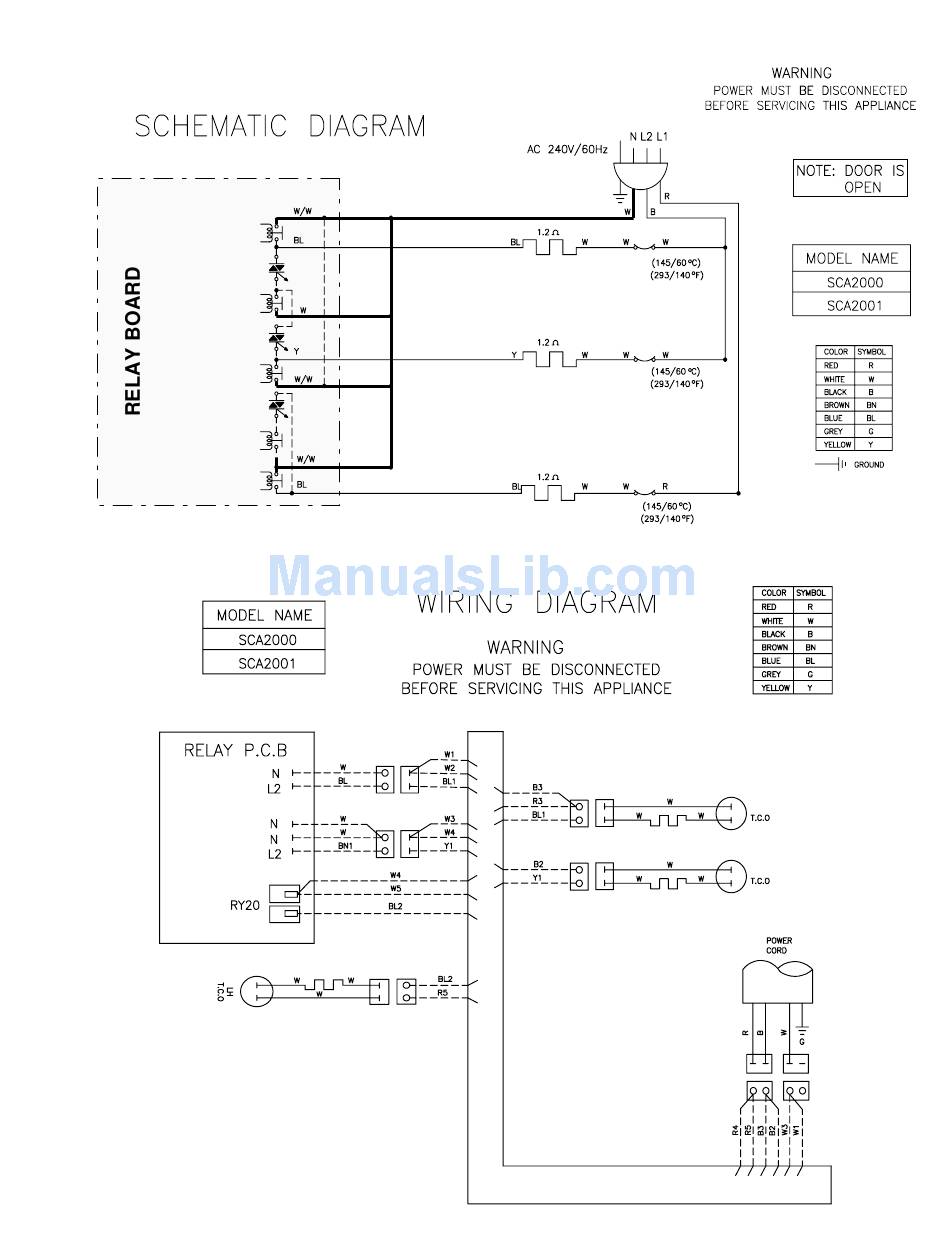

HALOGEN LAMP CIRCUITS
UPPER REAR HALOGEN
RELAY (RY18)
UPPER REAR
HALOGEN TRIAC1
UPPER AIR GAB
RELAY (RY22)
UPPER FRONT
HALOGEN TRIAC2
UPPER FRONT HALOGEN
RELAY (RY19)
LOWER
HALOGEN TRIAC3
LOWER AIR GAB
RELAY (RY21)
LOWER HALOGEN
RELAY (RY20)
LOWER HALOGEN
U.H.R. TCO
UPPER HALOGEN
REAR
U.H.F. TCO
UPPER HALOGEN
FRONT
L.H. TCO
LOWER HALOGEN
UPPER HALOGEN
REAR
UPPER HALOGEN
FRONT
– 55 –
UHR
UHF
