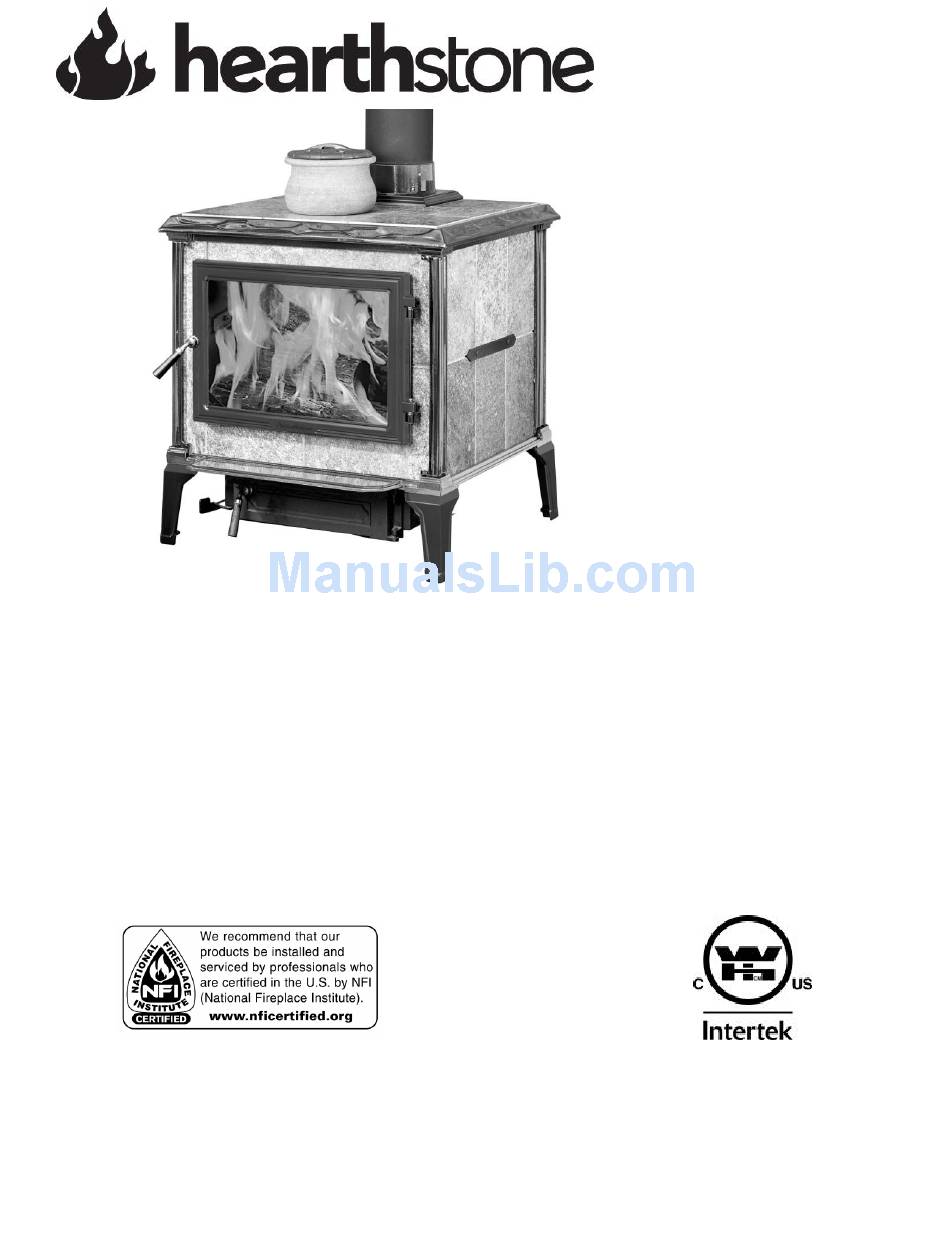

Mansfield
Woodstove
(Model 8012)
Owner's Manual
Installation &
Operating Instructions
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU INSTALL AND USE
YOUR NEW Mansfield WOOD STOVE. To reduce the risk of fire, follow the installation
instructions. Failure to follow these instructions may result in property damage,
bodily injury, or even death.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE!
CONTACT LOCAL AUTHORITIES HAVING JURISDICTION (BUILDING DEPARTMENT or
FIRE OFFICIALS) ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Mansfield 2: 6400-40484
Rev 0: 06/04/2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mansfield 8012 and is the answer not in the manual?

Questions and answers

Related Manuals for HearthStone Mansfield 8012

Summary of Contents for HearthStone Mansfield 8012

  • Page 1 Mansfield Woodstove (Model 8012) Owner's Manual Installation & Operating Instructions PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR NEW Mansfield WOOD STOVE. To reduce the risk of fire, follow the installation instructions. Failure to follow these instructions may result in property damage, bodily injury, or even death.
  • Page 2 Intentionally Blank...

  • Page 3: Table Of Contents

    Table of Contents Introduction ..........................4 Safety Information ......................... 5 Codes .................................. 5 Periodic Checklist..............................6 Thermo-Ceramic Baffle System .......................... 6 Emergency Procedures ............................6 Specifications ........................7 Installation..........................8 Unpacking ................................8 Installing Your Stove ............................8 Clearances to NFPA 211 Protected Surfaces ....................8 Hearth Requirements &...

  • Page 4: Introduction

    RESULT IF THIS STOVE IS NOT INSTALLED per hour of particulate emissions you can be proud PROPERLY. FOR YOUR SAFETY, to join the Hearthstone family with our Premier Wood CAREFULLY FOLLOW THE INSTALLATION Burning Stove. The generous depth allows for DIRECTIONS.

  • Page 5: Safety Information

    Safety Information Read and understand this Owner's Manual Follow these safety precautions: thoroughly before installing and using this Never modify this stove in any way, especially stove. the primary air control system. Never burn kiln dried wood, painted or treated Codes wood, solvents, trash, plywood, colored or glossy paper, artificial logs, cardboard, coal,...

  • Page 6: Periodic Checklist

    Thermo-Ceramic Baffle System To enhance the combustion efficiency and reduce the emissions of the fire in your stove Hearthstone developed an advanced THERMO-CERAMIC baffle system. This system uses a lightweight, durable ceramic material above the burner tubes to maintain the high temperatures in the secondary combustion area and maintain the low emission –...

  • Page 7: Specifications

    Specifications Maximum Output: 80,000 BTUs per hour of Dimensions: cordwood (based independent laboratory test results). Size Of Heated Area: Up to 2,500 square feet. Firebox Capacity: 3.2 cubic feet (.091 cubic meters) or 64 pounds of wood (The amount and weight of wood contained per cubic foot of firebox volume can vary from 15 to...

  • Page 8: Installation

    Installation National Fire Protection Agency Unpacking Batterymarch Park Hearthstone packages your Mansfield stove with the Quincy, MA 02269 greatest care, so that it ships safely. Under certain 1-800-344-3555 circumstances, however, damage can still occur 1-617-770-3000 during transit and handling. When you receive your stove, unpack it carefully, inspecting your stove and Hearth Requirements &...
  • Page 9 the stove is located. With outside air supplied to the hearth, keep in mind the need to avoid wiring directly to the stove, drafts within the room and air and structural members in the wall. infiltration within the building are reduced. Use of See the following illustrations for all connection the outside air kit may also improve stove options.

  • Page 10: Clearances To Combustibles

    11). Figure 7 Figure 5 Figure 8 If you use a rear heat shield to obtain reduced clearances, you must use the optional rear heat shield manufactured Hearthstone available through your local dealer. Close clearance connector pipe must be tested to UL standards and listed.
  • Page 11 FREESTANDING MINIMUM CLEARANCES TO COMBUSTIBLES (from closest point of stove) Unprotected Surfaces Protected Surfaces (NFPA 211) Parallel Corner Parallel Corner Installation type Side Rear Side Rear No Heat Shield 18 in. (45.7 cm) 19 in. 14 in. 10 in. 12 in. 8 in.
  • Page 12 Figure 9...

  • Page 13: Venting Components & Configuration

    Venting Components & Configuration Components of a Venting System Installing a Venting System The complete venting system consists of several Stovepipe sections must be attached to the stove components: chimney connector, wall thimble, wall and to each other with the crimped end toward the pass-through, chimney, and liner.

  • Page 14: Connecting Your Wood Stove

    Connecting Your Wood Stove You can install your Mansfield to a prefabricated metal chimney or a masonry chimney. Connecting to a Prefabricated Metal Chimney When connecting the Mansfield to a prefabricated metal chimney, you must follow, precisely, the manufacturer's installation instructions. Use only Type HT (2100 deg.
  • Page 15 cleanout must close off completely. If not, the chimney will cool, your stove will perform poorly, and creosote will build up in the chimney. Make sure the size of the chimney’s flue is appropriate for this stove and that it is not too large. Use a masonry chimney with an 8”...
  • Page 16 Figure 13...

  • Page 17: Installing In A Mobile Home

    WARNING: DO NOT INSTALL IN A SLEEPING ROOM CAUTION: MAINTAIN STRUCTURAL INTEGRITY OF THE MOBILE HOME WALLS, FLOOR, CEILING, AND ROOF WHILE YOUR STOVE IS INSTALLED AND IN USE. Figure 14 Installing In a Mobile Home Follow these special requirements for installing your stove in a mobile home.

  • Page 18: Operation

    Extended exposure to carbon monoxide could result Hearthstone tests each wood stove before we ship, in bodily injury or even death. so you should be able to easily light your first fire. PRIMARY AIR CONTROL: This feature is located on the lower left side of the stove, under the WARNING: HOT WHILE IN OPERATION.

  • Page 19: Choosing Firewood

    Choosing Firewood Burn only natural firewood (known as cordwood) in the Mansfield 8011 Woodstove. This stove is Medium not designed to burn other fuels. Juniper, Rocky Mtn 3,150 21.8 CAUTION: CHEMICALS Elm, Red 3,112 21.6 FLAMMABLE FLUIDS TO START THE FIRE. DO Coffeetree, Kentucky 3.112 21.6...

  • Page 20: Building A Fire

    moisture. As you might expect, green wood burns immediately surrounding the stove. Some potential poorly. You must season green wood before using it impurities are cleaning solvents, paint solvents, in your wood stove. To season green wood properly, cigarette smoke, and soot from scented candles, pet split, stack, and allow it to air dry for a period of one hair, dust, adhesives, a new carpet, and new year.

  • Page 21: Normal Operation

    soapstone will change and small fractures may crack, pause for a moment then open the door appear on the surface. These changes do not affect completely. This procedure allows the firebox to the function of the stove. If a stone breaks clear of smoke before the door is open fully.

  • Page 22: Removal & Disposal Of Ashes

    INAPPROPRIATE FUEL: Do not burn coal; kiln the firebox if preferred. It is important to prevent dried lumber, wax logs or anything other than ashes from building up around the front door natural cordwood. opening or they will spill out, or they can pack into the gasket channel and prevent proper sealing.

  • Page 23: Maintenance

    Maintenance be used to perform this service. Contact your dealer Monitoring Stove Temperatures for the name of a certified chimney sweep in your Monitor the stove temperatures with a stove area (your dealer may be a certified sweep!). thermometer (available from your dealer) placed on It is also recommended that before each heating the top center stone of the stove.

  • Page 24: Stone

    rather than running off the surface of the glass. 5) Peel the paper backing from the tape gasket. Wipe the cleaner off with a soft cloth. Apply the new gasket to the new glass as illustrated. Important: scratching or etching the glass 6) Place the gasketed glass onto the door.

  • Page 25: Troubleshooting

    Troubleshooting TALL TREES OR BUILDINGS: These obstructions, Virtually all woodstove operators experience basic common problems at one time or another. Most are when located in proximity to the top of the chimney correctable and generally require only a minor can cause chronic or occasional down-drafts. When adjustment of the stove, installation, or operating selecting a site for a new chimney, take care to technique.

  • Page 26: Troubleshooting Guide

    Troubleshooting Guide PROBLEM POSSIBLE CAUSE SOLUTIONS STOVE SMOKES Operating Technique Fully open the primary air control one minute before opening doors. Cold Chimney Preheat the chimney when first starting a fire. Blocked Chimney Examine the chimney and stovepipe for blockage or creosote accumulations.

  • Page 27: Replacement Parts & Optional Accessories

    Replacement Parts & Optional Accessories PART PART DESCRIPTION: DESCRIPTION: NUMBER: NUMBER: CASTINGS STEEL SET Primary Air Inlet/Ash Pan Box Ass’y 2010-050 Ash Door Frame 5010-051 2010-060 Ash Door 5010-055 Ash Door Latch 2010-101 Bottom 5010-060 Ash Pan 2010-150 Ash Grate Frame 5010-070 Primary Air Control Slider 2010-160...

  • Page 28: Safety Label

    Safety Label...
  • Page 29 (www.hearthstonestoves.com/customer-resources/warranty-registration), or send a completed and signed Warranty Registration Form, which is enclosed in the Stove Owner’s packet, to the following address: Hearthstone Quality Home Heating Products, Inc. Warranty Department 317 Stafford Avenue Morrisville, VT 05661 inquiry@hearthstonestoves.com NOTE: SENDING IN THE SIGNED WARRANTY REGISTRATION FORM IS NOT A CONDITION OF WARRANTY COVERAGE OR HEARTHSTONE’S PERFORMANCE.
