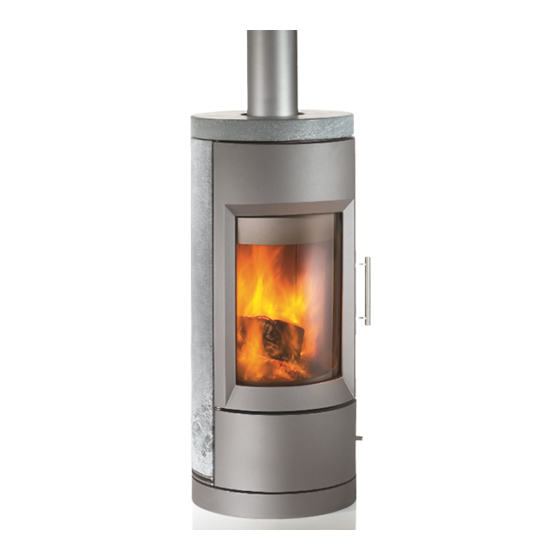

Bari
(8170)

Wood Stove

OWNER'S MANUAL
INSTALLATION AND
OPERATING INSTRUCTIONS
SAVE THIS OWNER'S MANUAL
FOR FUTURE REFERENCE
PLEASE READ THIS ENTIRE OWNER'S MANUAL BEFORE YOU
INSTALL AND USE YOUR NEW BARI WOOD STOVE.
To reduce the risk of fire, follow the installation instructions.
Failure to follow these instructions can result in property damage,
bodily injury, or even death.
CONTACT LOCAL AUTHORITIES WITH JURISDICTION (BUILDING DEPARTMENT or FIRE
OFFICIALS), ABOUT PERMITS REQUIRED, RESTRICTIONS AND INSTALLATION
INSPECTION IN YOUR AREA.
Bari Wood Model #8170
Manual # 6400-40459
Revised: 11/9/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Bari 8170 and is the answer not in the manual?

Questions and answers

Summary of Contents for HearthStone Bari 8170

  • Page 1: Wood Stove

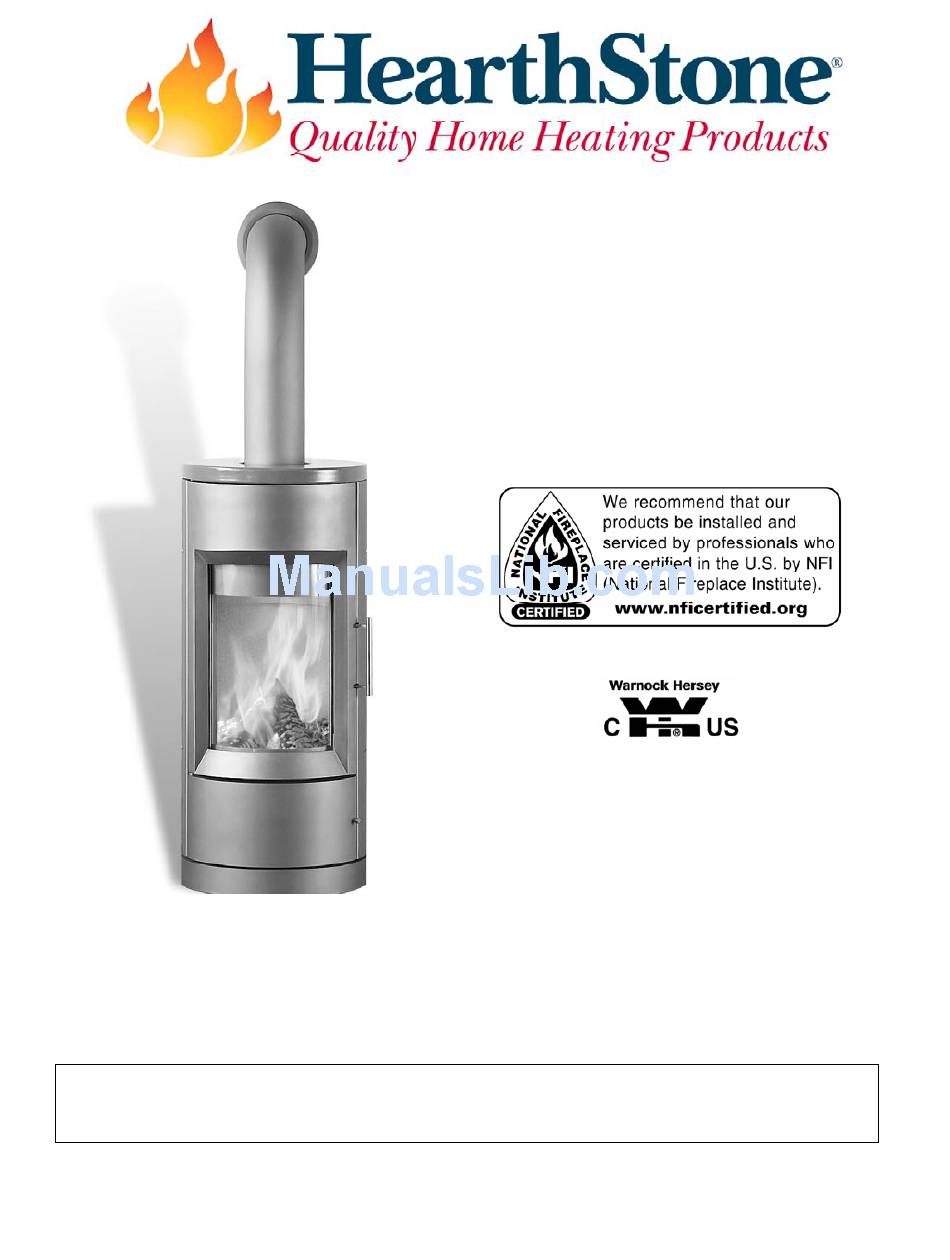

    Bari (8170) Wood Stove OWNER'S MANUAL INSTALLATION AND OPERATING INSTRUCTIONS SAVE THIS OWNER’S MANUAL FOR FUTURE REFERENCE PLEASE READ THIS ENTIRE OWNER’S MANUAL BEFORE YOU INSTALL AND USE YOUR NEW BARI WOOD STOVE. To reduce the risk of fire, follow the installation instructions. Failure to follow these instructions can result in property damage, bodily injury, or even death.
  • Page 2: Table Of Contents

    TABLE OF CONTENTS INTRODUCING YOUR BARI WOOD STOVE................... 3 ................................4 ODES ..........................4 AFETY NFORMATION Periodic Checklist ............................5 Emergency Procedures..........................5 ............................5 PECIFICATIONS SETTING UP YOUR BARI WOOD STOVE ..................6 ..............................6 NPACKING ..........................6 NSTALLING TOVE ..................
  • Page 3: Introducing Your Bari Wood Stove

    Introducing Your Bari Wood Stove Thank you for purchasing a HASE Collection Bari Install the stove in your living area to allow heat to radiate woodstove from Hearthstone Quality Home Heating naturally to distant rooms. Do not install your stove in a Products.
  • Page 4: Codes

    Never burn garbage or trash, colored or glossy paper, ODES solvents, plywood, artificial logs, cardboard, or When you install your Bari wood stove, it is imperative driftwood, in this stove. that you adhere to all Federal and local codes. Obtain these codes from either of the following sources: Never burn coal in this stove.
  • Page 5: Periodic Checklist

    Floor Size of Heated Area ERIODIC HECKLIST Up to a maximum of 1,200 square feet. Factors unique Perform each of these tasks at the specified intervals. to your home can reduce the square footage the stove will heat. Home insulation value, number and At the End of Every Week: efficiency of windows, floor plan, stove placement, •...
  • Page 6: Setting Up Your Bari Wood Stove

    Setting Up Your Bari Wood Stove NPACKING EARTH EQUIREMENTS LOOR ROTECTION HearthStone packages your Bari stove with the greatest care so that it ships safely. Under certain circumstances, Ensure combustible flooring is protected with a covering of however, damage may occur during transit and handling. noncombustible material.
  • Page 7: Rotation Lock Install Procedure

    Note: Dimensions shown in previous figures are from the body of the stove. 2" 2" [5CM] [5CM] The Bari wood stove has a unique feature that allows it to 2" rotate. This rotation allows the body of the stove to spin a 2"...
  • Page 8: Combustible Surface Required Clearances

    OMBUSTIBLE URFACE EQUIRED LEARANCES It is very important to follow minimum clearances for chimney connectors to combustibles such as walls and ceilings when installing the stove near combustible surfaces. Stove Locked in Position Stove Free to Rotate Stove Locked in Position Figure 8 Clearance to combustibles Corner Parallel...
  • Page 9 HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
  • Page 10: Outside Air Supply

    UTSIDE UPPLY • It is very important to follow minimum clearances for (Kit #91- 53700) chimney connectors to combustibles such as walls and You can connect an outside air source directly to this ceilings when installing the stove. Typical chimney stove using an optional outside air kit.
  • Page 11: Connecting The Stove To A Chimney

    a chimney. Use stovepipe for freestanding installations only to connect the stove to a proper chimney. Connecting to a Prefabricated Metal Chimney Installing a Venting System There are two ways to install a prefabricated metal chimney: • Install the rotating flue collar adaptor to the top of the An interior installation where the chimney passes inside stove.
  • Page 12 Extended Roof Chimney Cap Chimney Cap Support Bracket Storm Collar (Conduit Storm Collar Adjustable Roof not included) Adjustable Roof Flashing Flashing Attic Insulation Shield Firestop Radiation Twist-Lock Shield Clay tile or Chimney Sections other Liner Firesafe Enclosure Masonry Chimney Support Box and Trim Wall Thimble Collar with built-in Stovepipe...
  • Page 13 Make sure the chimney’s cleanout is complete and working Stainless steel - fill space around liner with vermiculite properly. To avoid a loss of draft, the cleanout door must (keeps liner warmer for better performance) close completely and provide a tight seal. If the cleanout Ensure an equivalent flue liner is a listed chimney liner door leaks, the chimney will cool, your stove will perform system meeting type HT requirements or other...
  • Page 14: Installing I N A Mobile Home

    NSTALLING OBILE Chimney Cap Chimney Section Follow these special requirements for installing your stove in a mobile home. Storm Collar Adjustable Roof Flashing Chimney • Install the stove in accordance with 24 CFR, Part 3280 Support Box (HUD) with built-in starter section •...
  • Page 15: Operating Your Bari Wood Stove

    Operating Your Bari Wood Stove Once your Bari is set in place, connected, and assembled, each fire and when full, allows you to remove the ash you are ready to light a fire. HearthStone tests each wood conveniently from your wood stove. Clear the firebox of stove before we ship it, so you will easily light your first fire.
  • Page 16: Choosing Firewood

    HOOSING IREWOOD UILDING Once you understand the controls of your wood stove and Your Bari Wood Heater is designed to only burn firewood- have the appropriate firewood, you are ready to start a fire. also known as cordwood. When you light your first fires, the woodstove will emit CAUTION: some smoke and fumes.
  • Page 17: Normal Operation

    ORMAL PERATION MEDIUM LOW BURN: With the primary air control in the open position, push the handle inward about ¾ of the way in. Prior to loading the stove, make sure the ash grate and the A medium-low burn rate is the typical setting and is ash pan door are closed.
  • Page 18: Maintenance

    the ash pan when burning the stove. The ash pan will not seal Inspect the venting system at the stove connection and at the properly without the lid under it. chimney top. Cooler surfaces tend to build creosote deposits Dump ashes from the ash pan directly into a metal container faster, so it is important to check the chimney at the top with a tight fitting lid.
  • Page 19: Latch Adjustment Procedures

    the rope in the channel along the top and bottom of the door. Once the gasket is installed, tighten the door’s sidepieces to clamp the gasket in place. The sidepieces form one side of the gasket’s channel, and hold the gasket rope along the sides in place.
  • Page 20: Glass Replacement Procedures

    Required Glass Kit: Part Number: 040-057-V (Glass with Remove the panel lock plate above the outer right panel. gasket applied). Slide outer right panel slightly to the right, tilt top into firebox, and remove the panel. Slide all other panels to the right, tilt, and remove. LASS REPLACEMENT PROCEDURES To remove the upper panel, remove the screw securing the air Follow the instructions included with the replacement glass kit.
  • Page 21: Troubleshooting

    of air starvation within the building is exacerbated if exhaust TROUBLESHOOTING fans, such as clothes dryers, bathroom fans or cookstove exhaust fans, are in operation within the home. Outfitting your stove with the optional outside air adaptor connected to Common Issues an air duct, which leads to the outside of the building, can correct this problem.
  • Page 22: Troubleshooting Guide

    ROUBLESHOOTING UIDE PROBLEM POSSIBLE CAUSE SOLUTIONS STOVE SMOKES Operating Technique Fully open the primary air control one minute before opening doors. Cold Chimney Preheat the chimney when first starting a fire. Briefly open a window in the room containing the stove. Blocked Chimney Examine the chimney and stovepipe for blockage or creosote accumulations.
  • Page 23: Replacement Parts & Optional Accessories

    & O EPLACEMENT ARTS PTIONAL CCESSORIES PART # DESCRIPTION PART # DESCRIPTION 595-274-V BAFFLE 565-132 REAR INNER AIR DUCT 595-377-V SECONDARY AIR SUPPORT 565-133-V SECONDARY AIR RING ASSEMBLY(W/PIPE) 595-379-V STONE LEVELING PLATE 565-137-V INNER AIR DUCT 595-278-V FRONT DOOR TOP HINGE PLATE 575-184 FIREBOX JACKET 595-284-V...
  • Page 24: Safety Label

    Safety Label HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
  • Page 25: Hearthstone Woodstove Limited Warranties

    HEARTHSTONE WOODSTOVE LIMITED WARRANTIES HearthStone Hase Collection Wood Stove Warranty 2-year limited warranty HearthStone warrants the following parts of the Stove against the following occurrences that result from defects in material or workmanship: Ceramic glass against cracking due to thermal shock. Vermiculite panels that break due to thermal stress and fall into the firebox.
  • Page 26 Notes: HearthStone Quality Home Heating Products, Inc ® Bari Model 8170...
