Setting height of the footplate
For adjusting the height of the footplate you need to use an allen key.
Loosen the bolt on the footrest completely, see figure 7;
-
You can now remove the footplate or adjust the height;
-
When you wanted to adjust the height, please select the desired height now and tighten the bolt down;
-
Make sure the footplate is in place and that the length is equal on both sides.
-

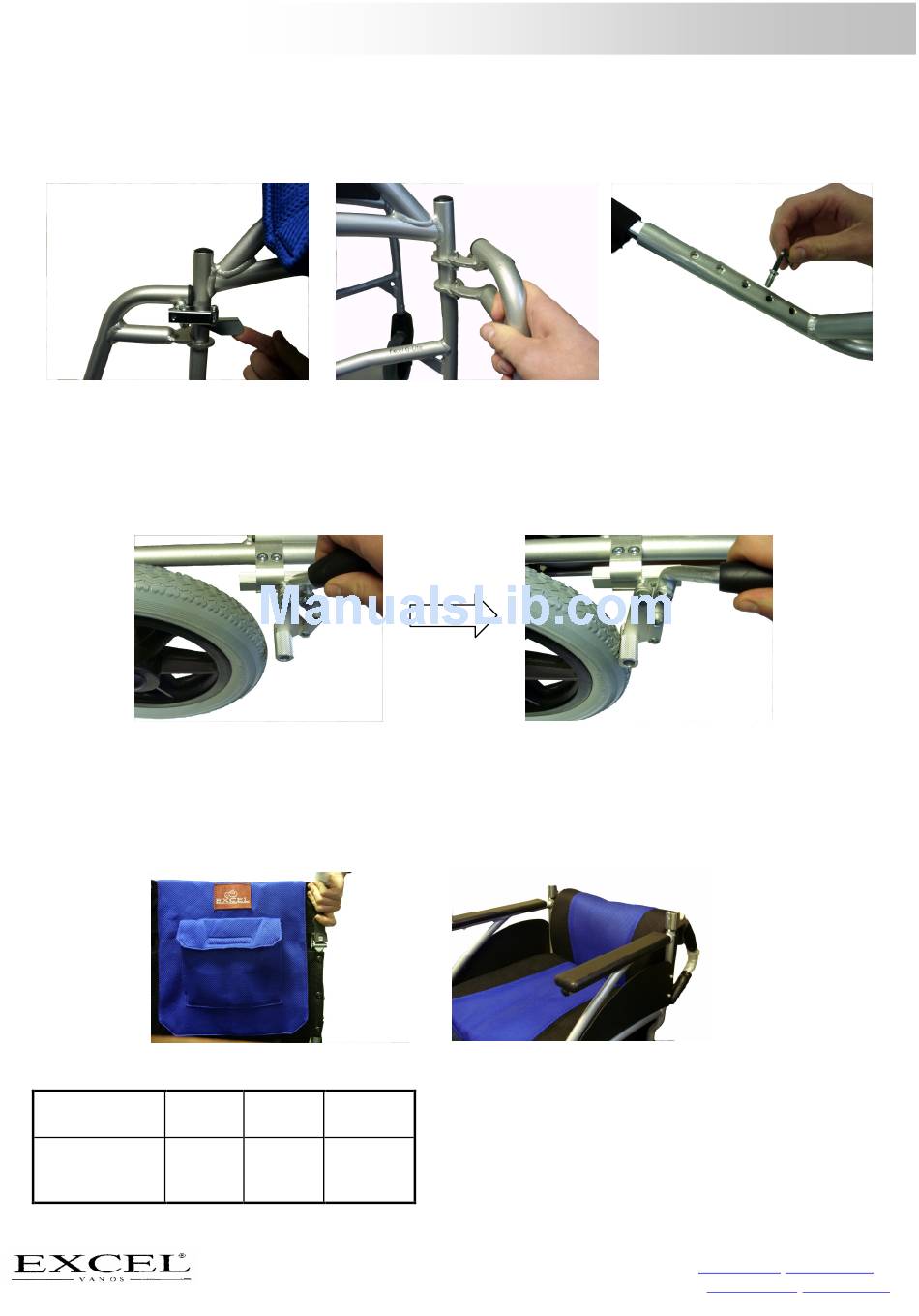

Figure 5

5.4 Using the wheelchair brake

Putting the wheelchair brake on
Go to the back of the wheelchair;
-
Push the black lever (figure 8) down until you hear a click which will confirm that the brake is on
-

5.5 Potential uses and functions of the back of the wheelchair

Using the foldable backrest
Go to the back of the wheelchair;
-
Press at the same time both levers on the back of the wheelchair and fold the backrest down, see figure 9 and
-
10;

5.6 Tire table

Wheelchair model Rear
wheel
EXCEL® 'G-Lite' Transit
Figure 8
Figure 9
Tire size Tire size
front rear
5" X 1 1/4" ½
7 " x 1 1/4"
~ 14 ~
Figure 6
