Folding the wheelchair
Fold away the foot plates and remove the foot or leg rest, see chapter 5.3;
-
Make sure you are next to the wheelchair;
-
Get a hold of the seat material at the front and rear in the middle and pull it straight up, see figure 2;
-
Tilt the wheelchair slightly and then push the sides toward each other to completely fold the wheelchair.
-

5.3 Use of the footplate and footrest

Folding the footplate away
Go to the front of the wheelchair and get a hold of the front of the foot plate, see figure 3;
-
Fold the footplate in the direction of the footrest, see figure 4. Make sure the heel strap does not get stuck
-
between the footplate and footrest, see figure 4.
Swinging the footrests towards and away from the wheelchair
Go to the front of the wheelchair;
-
Pull the steel control lever to the inside, see figure 5;
-
You can now swing the footrest inwards or outwards.
-
Removing the footrests from the wheelchair
Go to the front of the wheelchair;
-
Pull the steel control lever to the inside, see figure 5. You can now swing the footrest inwards or outwards;
-
Swing the footrests 90˚ to the outside of your wheelchair and pull the complete footrest straight up from the
-
tube.
Placing the footrest back on your wheelchair
Go to the front of the wheelchair;
-
Place the footrest with an angle of 90°back on the chair, see figure 6;
-
Swing the footrest to the front until you hear a click. This click confirmed that the foot is in position;
-
Place the heel strap and check if everything is in position.
-

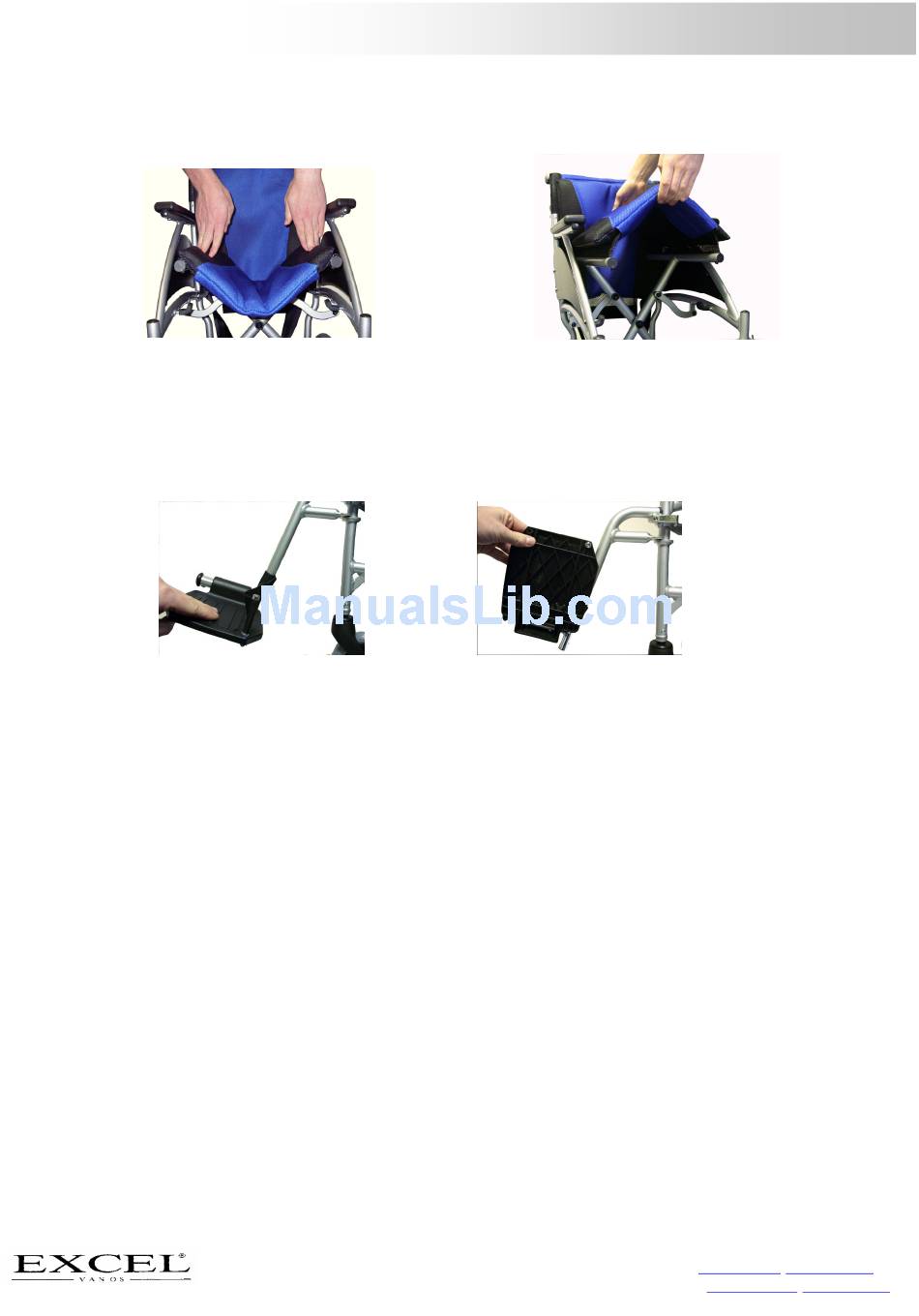

Figure 1
Figure 3
~ 13 ~
Figure 2
Figure 4
