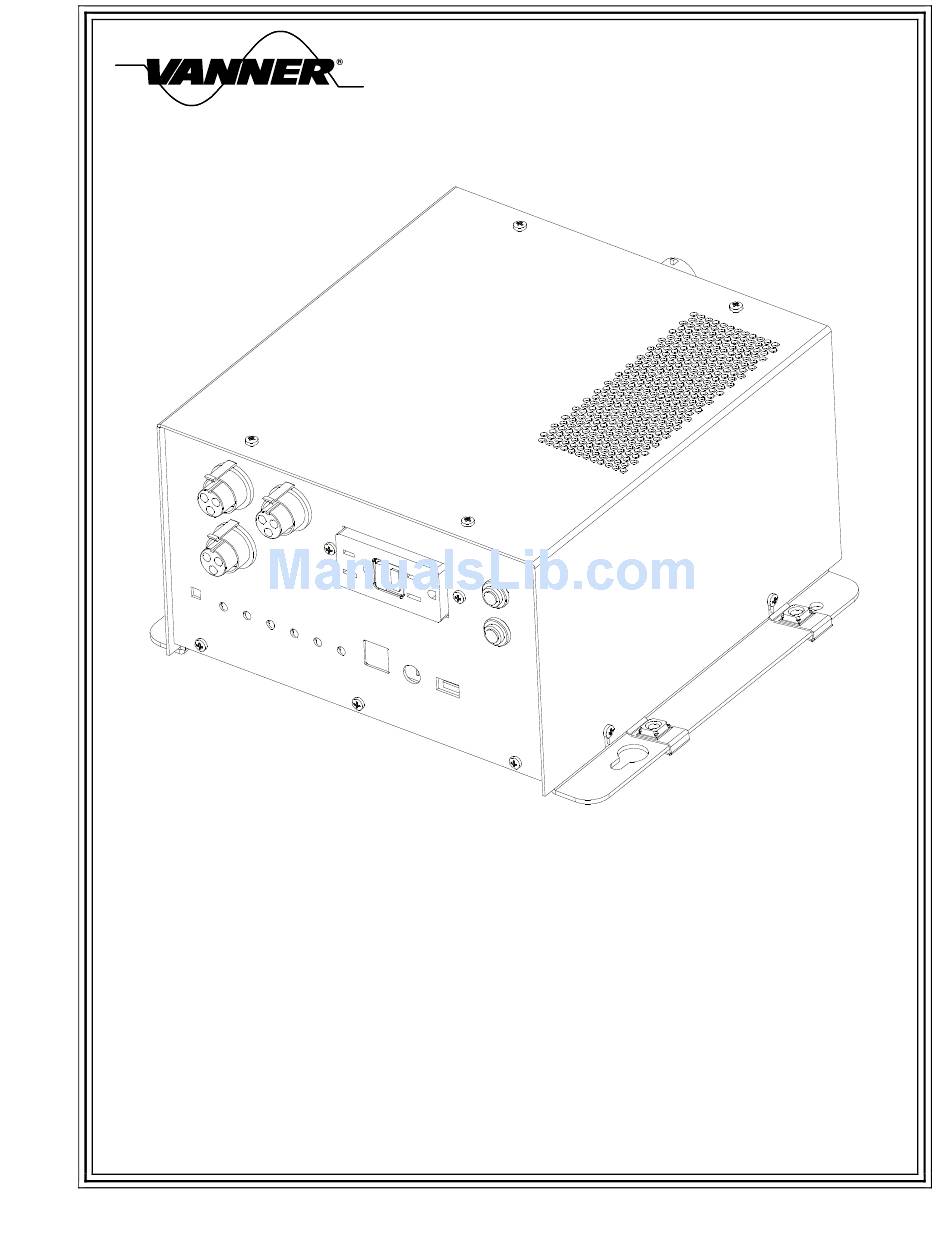

- Page 1 Owner's Manual - D913482 I N C O R P O R A T E D SRC12-1200L/S Inverter/Charger Model - SRC12-1200L/S Owner's Manual - D913482 Release 1.0 SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM...
- Page 2 I N C O R P O R A T E D Alternator Fuse block within 18" of Battery 12 Volt Battery Battery Common OEM ground at Starter or Engine Block Inverter/Charger Typical Inverter Installation SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM...
-
Page 3: Table Of Contents
Procedure to Check Battery Charger Operation ................. 18 THEORY OF OPERATION ......................18 10.1 Battery Charger Operation ......................18 10.2 Automatic Power Transfer Switch Theory of Operation ............19 PREVENTIVE MAINTENANCE ....................20 11.1 Maintenance Items ........................20 SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 4: Introduction
Inverter DC Input Current Requirements .................. 23 1 INTRODUCTION Thank you for purchasing Vanner’s SRC12-1200L/S Inverter/Charger. We are confident that you will be satisfied with its performance and its many features. With proper installation and care, you can look forward to years of service from this high performance product. -
Page 5: Specifications
-40° to +104°F, -40° to + 40.0°C Cooling Thermostatically Controlled Fan Chassis Powder Coated Aluminum Dimensions 10.4”W x 6.0”H x 14.4”D Weight 25 lbs. * Determined by programming DIP switch setting Table 1 - Specifications SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 6: Standard Features
Some electronic or variable speed loads may not turn ON while the inverter is in Load Demand Mode. The load waits to see AC power and the inverter waits to see the load. For these loads, setting Selector Switch SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 7: Automatic Transfer Switch
6 SAFETY INSTRUCTIONS 6.1 READ ME This manual contains important safety and operating instructions for the Vanner Incorporated Silent Runner Series Power Inverter/Charger System. The SR-Series Inverter/Charger is designed to be compliant with UL458, Power Converters/Inverters and Power Converter/Inverter Systems for Land Vehicles. -
Page 8: General Precautions
All external conductors must use proper wire size to avoid dangerous overheating or diminished performance. If the Vanner inverter system has been dropped or damaged in any way, do not operate until its operation has been verified to be safe by a qualified technician. - Page 9 Care should be taken when working with metal tools around batteries. Potentials for spark exists or short-circuit of the battery or other electrical part that may cause an explosion. Never charge a frozen battery. Battery temperature needs to be above 32°F (0°C) before charging. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM...
-
Page 10: Component Identification
OVER OVER BULK/ LOAD DEMAND OFF/RESET INVERTER TEMP LOAD ABSORPTION FLOAT FLOODED REMOTE IFM1 1 2 3 4 5 STEADY=INVERTER ON CHARGER BLINK=STANDBY/LOAD DEMAND 10 11 12 13 14 Figure 2 SRC12-1200L/S Component Identification SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 11: On/Off/Reset Push Button
5 – OVERLOAD INDICATOR LIGHT Light Display Description Blinking Red The inverter has shut itself OFF due to overload. The Inverter ON/OFF Switch must be cycled to reset and restart the inverter. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 12: Bulk/Absorption Indicator Light
Activates function of Inverter Control Terminal when Switch 4 is in Remote. When enabled, a continuous 12v signal is REQUIRED to turn the inverter function ON. SR10 Remote is REQUIRED to initially turn the inverter ON after connection to battery voltage. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 13: 120V, 60Hz @ 15A Max. Ac Output Utilizing The Phillips & Temro Connectors
BE AWARE that, as a large number of capacitors become charged upon completion of the DC circuit, THERE WILL BE A LARGE SPARK when the last battery connection is made. The spark is normal and will occur every time batteries are connected. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 14: Installation
For best performance, wire the DC negative directly back to the battery through Battery cables listed in the table below; do not use the vehicle chassis as the DC negative conductor. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... - Page 15 18 in. (457 mm) of the point where the power supply connects to the vehicle circuits. Bussmann Fuse ANN200 FS-HVBF-200 Cube Fuse Vanner part number Vanner #04522 Vanner #011756 Fuse Holder Bussmann 4164 (Required with ANN Style fuse)
-
Page 16: Sr10 Remote Indicator Display
AC Wiring Installation Procedure Connect AC loads to the inverter GFCI receptacle. When the AC input cord is connected to shore power, shore power will pass through the GFCI receptacle. The Vanner SR12-1200L/S has been tested with the following GFCI outlet’s: Manufacturer Model... -
Page 17: System Start-Up And Testing Procedures
• Battery charge stage Lights will illuminate as described above. • The AC output test light should be on, indicating the presence of shore power and correct • operation of the AC Transfer switch. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 18: Procedure To Check Battery Charger Operation
10 THEORY OF OPERATION 10.1 BATTERY CHARGER OPERATION The SRC12-1200L/S incorporates an automatic, three-stage battery charger. This design enables the unit to automatically charge batteries, maintaining the battery's integrity and reducing the likelihood of premature failure. The battery charger is designed to be used with lead-acid type batteries including sealed and gel types, but not for nickel-cadmium (Ni-Cad) or nickel-iron types. -
Page 19: Automatic Power Transfer Switch Theory Of Operation
30 milliseconds (0.030 seconds). The 0.030 second transfer time allows all but the most sensitive loads to transfer from inverter power to shore power and back to inverter power without interruption. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 20: Preventive Maintenance
AC input voltage is monitored for proper tolerance at all times. When the AC input is within tolerance for approximately 5 seconds, the power is passed through to the output circuit and the SRC12-1200L/S automatically switches from inverter mode to battery charger mode. The unit automatically switches back to inverter mode when input power is disconnected or when input power is no longer within tolerance. - Page 21 Check AC output voltage at convenience receptacle with a “True RMS” meter. Check for overheated DC or AC wiring Symptom Unit does not operate and a “burnt wire” smell emits from inverter. Solution Disconnect AC loads and battery immediately Unit may require service SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM...
-
Page 22: Appendices
A battery will age faster (loose active material from its plates faster) if it is deeply discharged regularly, if it is left in a discharged state for extended periods of time, or if it is repeatedly overcharged. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... -
Page 23: Dc Power Consumption
120 volts x 6 amps = 720 watts, and DC input current = 720 ÷ 10 = 72 amps DC. This information on estimating the DC input current requirement for an inverter would allow you to size an alternator or charging system to supply an inverter for continuous operation. SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM... - Page 24 I N C O R P O R A T E D Vanner Incorporated 4282 Reynolds Drive Hilliard, Ohio 43026 1-800-AC POWER (1-800-227-6937) Tel: 614-771-2718 Fax: 614-771-4904 www.vanner.com e-mail: pwrsales@vanner.com Manual Part Number D913482 October 31, 2008 Printed in USA SRC12-1200L/S INVERTER/CHARGER 10/31/08 - 10:20 AM...
