Kramer VS-41H2 Quick Start Manual

VS-41H2 Quick Start Guide
This guide helps you install and use your VS-41H2 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VS-41H2 4x1 HDMI 2.0 Switcher
1 Power cord

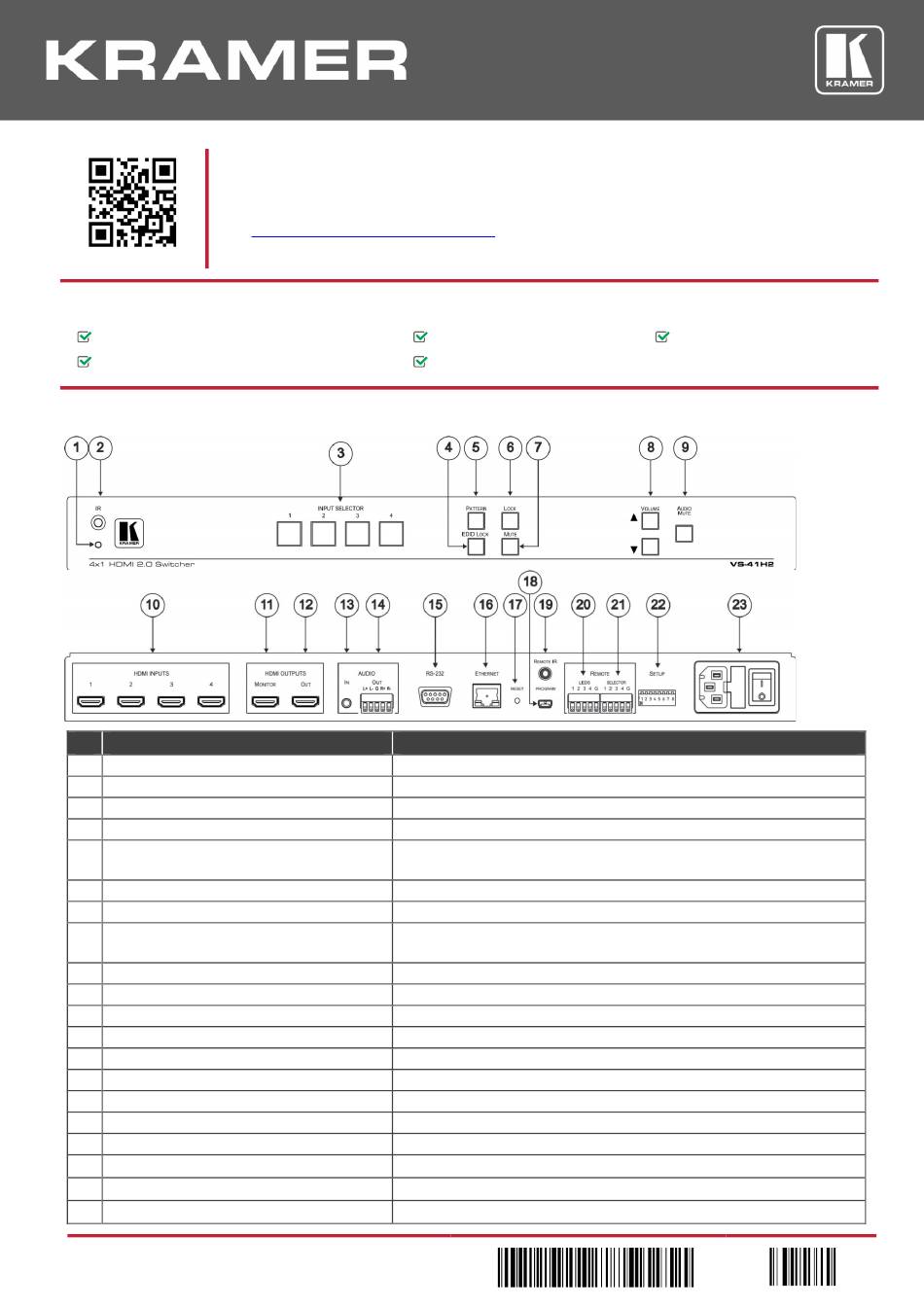

Step 2: Get to know your VS-41H2

# Feature
1 IR LED
2 IR Receiver
3 INPUT SELECTOR (1-4)
4 EDID Lock Button
5 PATTERN Button
6 LOCK Button
7 MUTE Button
8 VOLUME Buttons (▲ ▼)
9 AUDIO MUTE Button
10 HDMI INPUTS (1-4) Connectors
11 HDMI OUTPUTS MONITOR Connector
12 HDMI OUTPUTS OUT Connector
13 AUDIO IN 3.5mm Mini Jack
14 AUDIO OUT Terminal Block Connector
15 RS-232 9-pin D-sub Connector
16 ETHERNET RJ-45 Connector
17 RESET Button
18 PROGRAM Mini USB Connector
19 REMOTE IR 3.5mm Connector
20 REMOTE LEDS (1-4, G) Terminal Block
VS-41H2 Quick Start (P/N: 2900-300835QS REV 4)
www.kramerav.com/downloads/VS-41H2
Function
For future use
For future use
Press to route HDMI source 1 through 4 to the output
Press to lock the current EDID
Press to activate the test pattern generator. When the generator is active,
press one of the input buttons to select a test pattern
Press and hold to toggle locking and unlocking the front panel buttons
Press to toggle muting of the output audio and video
Press ▲ to increase volume, press ▼ to decrease volume (flashes 3 times
when max. or min. value is reached)
Press to toggle muting of the output audio
Connect to up to 4 HDMI sources
Connects to an HDMI monitor
Connects to an HDMI acceptor
Connects to an unbalanced stereo audio acceptor
Connects to a balanced stereo audio acceptor
Connects to a local RS-232 source
Connects to a network for control (LEDs: activity–flashing green, link–orange)
Press while power-cycling the device to reset to factory default parameters
Used for upgrading the firmware
For future use
Connects to external LED indicators
to download the latest user manual and check if firmware
1 Set of rack ears
4 Rubber feet
P/N:
2900- 300835QS
1 Quick start guide
Rev:
4
