Kramer VS-211XS Quick Start Manual

Scan for full manual
Step 1: Check what's in the box
VS-211XS / VS-411XS
1 Power adapter and cord

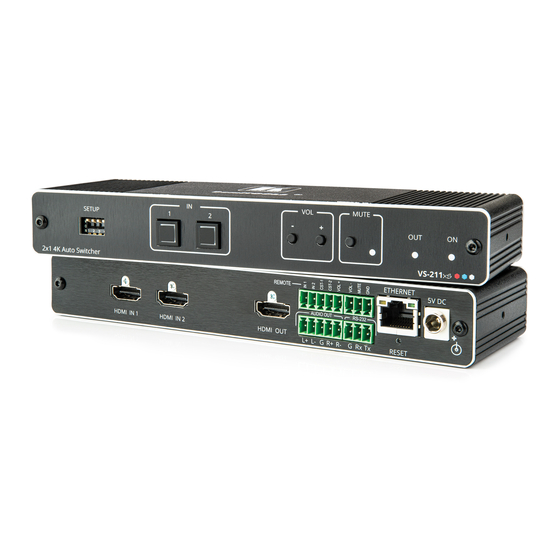

Step 2: Get to know your VS-211XS / VS-411XS

The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
# Feature
1 SETUP 4-way DIP-Switches
IN Buttons
2
3 VOL Push -
Buttons
+
4 MUTE Push Button
LED
5 OUT LED
6 ON LED
7 HDMI IN Connectors
8 HDMI OUT Connector
9 AUDIO OUT 5-pin Terminal Block
Connector
10 REMOTE Terminal block Connector:
VS-211XS: IN 1, IN 2/ CST-1, CST-2
VS-411XS: IN 1, IN 2, IN 3, IN 4
VOL+, VOL -, MUTE
11 ETHERNET RJ-45 Connector
12 RESET Recessed Button
13 5V DC Power Connector
14 RS-232 3-pin Terminal Block Connector
VS-411XS and VS-211XS Quick Start
VS-211XS and VS-411XS Quick Start Guide
This guide helps you install and use your
Go to www.kramerav.com/downloads/VS-411XS
upgrades are available.
4K Auto Switcher
Function
Set the operation DIP-switches (see
Press to select an HDMI input (button lights orange). (2 for VS-211XS, 4 for
VS-411XS).
Press to decrease audio output volume.
Press to increase audio output volume.
Press to mute the audio output.
Lights red when audio output is muted.
Lights green when an HDMI output is connected.
Lights green when the device receives power.
Connect to an HDMI source (2 for VS-211XS, 4 for VS-411XS).
Connect to an HDMI acceptor.
Connect to a balanced stereo audio acceptor.
Connect to contact closure switches by momentary contact between the desired
pin and common GND pin.
Select input 1 or input 2 (IN 1 or IN 2), or alternatively activate custom triggers
(by momentarily connecting IN 1, IN 2, CST-1 and CST-2 to GND) set up in
Maestro. (Configured via the embedded web pages).
Select input 1 to input 4 (IN 1 to IN 2), or alternatively activate custom triggers
set up in Maestro. (Configured via the embedded web pages).
Set the volume up or down (VOL+/-) and mute the audio output (MUTE).
Connect to a PC via a LAN to control the device.
Press briefly to reset the device parameters to their factory default values,
excluding ETH parameters.
Press and hold (5 seconds) to fully reset the device parameters to their default
values, including ETH parameters.
Connect to the power supply and to the mains electricity.
Connect to a PC or a remote controller to control the device.
VS-211XS / VS-411XS for the first time.
to download the latest user manual and check if firmware
4 Rubber feet
1 Bracket set
Connect the inputs and outputs
P/N: 2 9 0 0 - 3 0 1 4 9 1 QS
1 Quick start guide
on page 2).
Rev: 3
