  • Page 1 series Digital Weighing Scales User’s guide...

  • Page 2: Table Of Contents

    Contents SECTION 1 INTRODUCTION………………………………………………………………1 SECTION 2 SPECIFICATIONS……………………………………………………..……2 SECTION 3 INSTALLATION……………………………………………………..……….3 3.1 General Installation……………………………………………………………………3 3.2 Install of ATW series…………………………………………………………..………3 SECTION 4 KEY DESCRIPTIONS………………………………………………………4 SECTION 5 DISPLAYS………………………………………………………………….5 SECTION 6 OPERATION…………………………………………………………….…..6 6.1 Zeroing the display…………………………………………………………………….6 6.2 Taring……………………………………………………………………………..…….6 6.3 Check-weighing………..………………………………………………………..…….6 6.4 capability setting…………………………………………………………………………7 SECTION 7 BATTERY OPERATION………………………………………………..…8 SECTION 8 PARAMETERS……………………………………………………………10...

  • Page 3: Section 1 Introduction

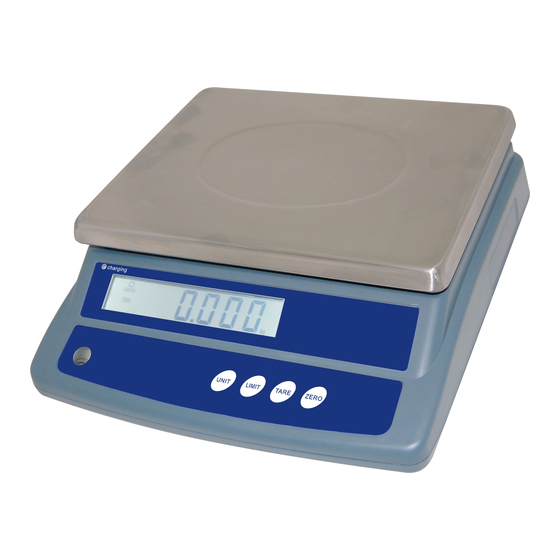

    ATW digital weighing scales user’s guide SECTION 1 INTRODUCTION The ATW series of scales provides an accurate, fast and versatile series of general purpose weighing scales with weighing functions. They all have stainless steel weighing platforms on an ABS base assembly.

  • Page 4: Section 2 Specifications

    ATW digital weighing scales user’s guide SECTION 2 SPECIFICATIONS Common Specifications Interface RS-232 Output Optional Stabilisation Time 2 Seconds typical Operating Temperature 0° C - 40° C / 32° F - 104° F Power supply (external) 115 / 230 Vac, 50/60Hz, 10 watts Calibration Automatic External Display...

  • Page 5: Section 3 Installation

    3.2 INSTALLATION of ATW SERIES The ATW Series comes with a stainless steel platform packed separately. Place the platform in the locating holes on the top cover. Do not press with excessive force as this could damage the load cell inside.

  • Page 6: Section 4 Key Descriptions

    ATW digital weighing scales user’s guide SECTION 4 KEY DESCRIPTIONS Zero or Set the zero point for all subsequent weighing. The display shows zero. A secondary function , of "Enter" key when setting parameters or other functions. Tare or Tares the scale. Stores the current weight in memory as a tare value, subtracts the tare value from the weight and shows the results.

  • Page 7: Section 5 Displays

    ATW digital weighing scales user’s guide SECTION 5 DISPLAYS The LCD display will show a value and a unit to the right of the digits. In addition there are labels for TARE, GROSS weight, ZERO and for Low battery Low Battery Symbol Parts Counting Units Stability Symbol g/pcs...

  • Page 8: Section 6 Operation

    ATW digital weighing scales user’s guide SECTION 6 OPERATION 6.1 ZEROING THE DISPLAY You can press the ZERO/ENTER key at any time to set the zero point from which all other weighing and counting is measured, within 4% of power up zero. This will usually only be necessary when the platform is empty.

  • Page 9: Capability Setting

    ATW digital weighing scales user’s guide Check-weighing function enabled. When a weight is placed on the scale the arrows will show if the weight is above or below the limits and the beeper will sound as described below. BOTH LIMITS SET The display will show OK and the beeper will sound when the weight is between the limits.

  • Page 10: Section 7 Battery Operation

    ATW digital weighing scales user’s guide SECTION 7 BATTERY OPERATION The scales can be operated from the battery if desired. The battery life is approximately 100 hours. When the battery needs charging the arrow above the low battery symbol under the weight display will turn on.
  • Page 11 ATW digital weighing scales user’s guide charging times. This is normal. If you charge your battery regularly and notice a decrease in operate time or an increase in charging time, then it is probably time to purchase a new battery. - 9 -...

  • Page 12: Section 8 Parameters

    ATW digital weighing scales user’s guide SECTION 8 PARAMETERS The scale has 6 parameters that can be set by the user. These allow the user to set the scale to:  Display the weight in other increments of weight to min the affects of vibration, wind or other environmental conditions.

  • Page 13: Section 9 Calibration

    ATW digital weighing scales user’s guide SECTION 9 CALIBRATION 9.1 Linear calibrate To start calibration turn the scale off and then turn it back on. Press the limit and UNIT keys together during the initial counting from 9 to 0 on the display. The display will show "unLoAd".

  • Page 14: Section 10 Error Codes

    ATW digital weighing scales user’s guide SECTION 10 ERROR CODES During the initial power-on testing or during operation it is possible the scale may show an error message. The meaning of the error messages is described below. If an error message is shown repeat the procedure that caused the message, turning the balance on, calibration or other functions.
  • Page 15 ATW digital weighing scales user’s guide TAIWAN SCALE is a international supplier with more than 30 years experience in the production and sale of electronic weighing equipment. Products are supplied and serviced from our company locations in the CHINA, TAIWAN and distributed through a world wide dealer network, also we make OEM/ODM products for world wide customer.
