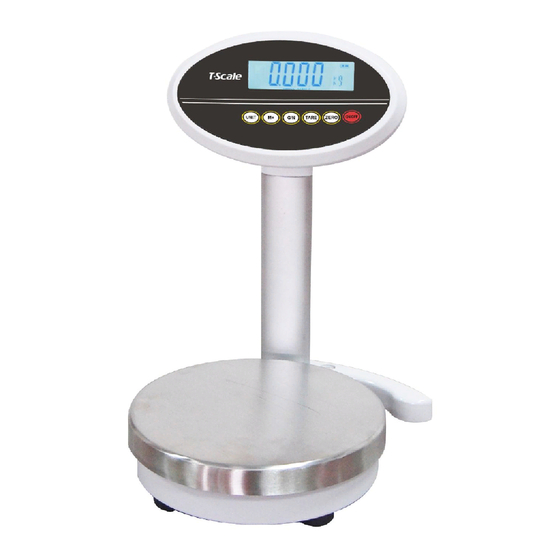

ROW
series
Precision Balance
User's guide
UGROW-E1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ROW Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for T Scale ROW Series

Summary of Contents for T Scale ROW Series

  • Page 1 series Precision Balance User’s guide UGROW-E1.01...

  • Page 2: Table Of Contents

    ROW serial precision balance user’s manual Table of Contents SECTION 1 INTRODUCTION……………………………………………………………1 SECTION 2 SPECIFICATIONS……………………………………………………..……2 SECTION 3 INSTALLATION……………………………………………………………….3 SECTION 4 KEY DESCRIPTIONS………………………………………………………5 SECTION 5 DISPLAYS…………………………………………………………………….6 SECTION 6 OPERATION…………………….……………………………………….…..7 6.1 Zeroing the display………………………………………………………………….7 6.2 Taring……………………………………………………………………………..…….7 6.3 Weighing a sample…….………………………………………………….………….7 6.4 Check-weighing…………………………………………………………………….8 6.5 Accumulated total……………………………………………………………………….9 SECTION 7 PARAMETERS………………………………………………………………10 SECTION 8 BATTERY OPERATION………………………………………………..…13...

  • Page 3: Section 1 Introduction

    ROW serial precision balance user’s manual SECTION 1 INTRODUCTION The ROW series of precision balance provides an accurate, fast and versatile series of general purpose weighing scale with units conversion and check-weighing functions. All the keypads are sealed, color coded membrane switches and the displays are large easy to read liquid crystal type displays (LCD).

  • Page 4: Section 2 Specifications

    ROW serial precision balance user’s manual SECTION 2 SPECIFICATIONS Model Resolution 1/70,000 Interface RS-232 Output Optional Stabilisation Time 1 Seconds typical Operating Temperature 0°C - 40°C / 32°F - 104°F Power supply (external) 115 / 230 Vac, 120 / 240 Vac, 50/60Hz, 10 watts Calibration Automatic External Display...

  • Page 5: Section 3 Installation

    Keep the indicator clean. Do not stack material on the scales when they are not in use. INSTALLATION OF ROW SERIES Please make the load cell connector from the load cell follow the drawing below Attach the AC power adapter to the connector on the back of the indicator.

  • Page 6: Section 4 Key Descriptions

    ROW serial precision balance user’s manual SECTION 4 KEY DESCRIPTIONS Zero Set the zero point for all subsequent weighing. The display shows zero. A secondary function , of "Enter" key when setting parameters or other functions. Tare Tares the scale. Stores the current weight in memory as a tare value, subtracts the tare value from the weight and shows the results.

  • Page 7: Section 5 Displays

    ROW serial precision balance user’s manual SECTION 5 DISPLAYS The LCD display will show a value and a unit to the right of the digits. In addition there are labels for TARE, GROSS weight, Zero and for Low battery Battery low Check weighing Weighing unit stable...

  • Page 8: Section 6 Operation

    ROW serial precision balance user’s manual SECTION 6 OPERATION 6.1 Zeroing The Displa You can press the ZERO key at any time to set the zero point from which all other weighing and counting is measured, within 4% of power up zero. This will usually only be necessary when the platform is empty.

  • Page 9: Accumulated Total

    ROW serial precision balance user’s manual high limit and a low limit. Check mode 2: When check range, the display will show OK and the beeper will sound when the weight is between the limits. Check mode 3: When check range, the display will show OK and the beeper will sound when the weight is out of the limits.
  • Page 10 ROW serial precision balance user’s manual weight is stable. The display will show "ACC 1" and then the total in memory for 2 seconds before returning to normal. (after do accumulate operate, M+ indicator will turn on) If the optional RS-232 interface is installed the weight will be output to a printer or PC. Remove the weight, allowing the scale to return to zero and put a second weight on.
  • Page 11 ROW serial precision balance user’s manual SECTION 7) and set scale mode to mode3/mode4 (see detail in SECTION12) Turn on power, scale will show “err4”, then show current total weight on platform, press TARE key, display show 0.00, then remove goods in hopper, display will show it’s weight in “-“...

  • Page 12: Section 7 Parameters

    ROW serial precision balance user’s manual SECTION 7 PARAMETERS The scale has 6 parameters that can be set by the user plus a method of entering the calibration section. Press the UNIT key and M+ key together in the weighing mode. The display will show the first function, "F0 H-L".
  • Page 13 ROW serial precision balance user’s manual FUNCTION MENU SETTINGS DEFAULT FUNCTION SUB-FUNCTION DESCRIPTION VALUE backlight EL Au F3 off automatic or off, EL on EL Au EL off beep mode.(check bEEP weighing mode 2, check weighing mode3, no beep) Set the RS-232 , at first set RS-232 working mode P Prt F4 Prt (press TARE key to change, press ZERO key to sure)
  • Page 14 ROW serial precision balance user’s manual print out format form 1 (for TpuP printer) 0.666kg 0.222kg 0.222kg GS: 0.888kg TW: 0.222kg TOTAL: 0.222kg 0.666kg GW: 0.888kg 0.888kg TOTAL: 0.222kg DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 DATE: 04/06/06 0.666kg 0.222kg 0.222kg 0.888kg TW: 0.222Kg TOTAL: 0.444kg...

  • Page 15: Section 8 Battery Operation

    ROW serial precision balance user’s manual SECTION 8 BATTERY OPERATION The weighing indicator can be operated from the battery if desired. The battery life is approximately 35 hours. When the battery needs charging a symbol on the weight display will turn on. The battery should be charged when the symbol is on.

  • Page 16: Section 9 Rs-232 Output

    ROW serial precision balance user’s manual SECTION 9 RS-232 OUTPUT The ROW Series of scales can be ordered with an optional RS-232 output. 9. 1 basic information Specifications: RS-232 output of weighing data ASCII code 8 data bits No Parity Baud rate from 600bps to 9600bps 9.
  • Page 17 ROW serial precision balance user’s manual ， CR LF -HEADER1-- - HEADER2- --- WEIGHT DATA -- -WEIGHT UNIT- TERMINATOR con1: counting mode ： CR LF - QTY - -QTY UNIT- HEADER1: ST=STABLE， US=UNSTABLE HEADER2: NT=NET， GS=GROSS Con2: Head Head Head Head Weig Weig...

  • Page 18: Section 10 Calibration

    ROW serial precision balance user’s manual SECTION 10 CALIBRATION Press UNIT key and M+ key together when normal weighing mode, display shows “F0 H-L”, press TARE key until display shows “PrOG”, press ZERO key, display shows “PIN”, You can press G/N、UNIT、ZERO key to enter setting mode, press TARE key to select "p2 CAL", press ZERO key to sure.

  • Page 19: Section 11 Error Code

    ROW serial precision balance user’s manual SECTION 11 ERROR CODES ERROR DESCRIPTION RESOLUTION CODES - - - - - Over range Remove weight from the scale. If the problem persist contact your dealer or Taiwan scale for assistance. Date Setting Error Enter date using correct format and reasonable Err 1 values.

  • Page 20: Section 12 Technical Parametes

    ROW serial precision balance user’s manual SECTION 12 TECHNICAL PARAMETERS Press UNIT key and M+ key together when normal weighing mode, display shows “F0 H-L”, press TARE key until display shows “PrOG”, press ZERO key, display shows “PIN”, You can press G/N、 UNIT、 ZERO key to enter setting mode, press Tare key to select parameter, press Zero key to sure, press UNIT key to escape.
  • Page 21 ROW serial precision balance user’s manual MODE 4 As the mode 2, but M+ out format different NW: 0.222KG nw for net weight GW:0.888KG gw for gross weight -18-...
  • Page 22 ROW serial precision balance user’s manual TAIWAN SCALE is a international supplier with more than 30 years experience in the production and sale of electronic weighing equipment. Products are supplied and serviced from our company locations in the CHINA, TAIWAN and distributed through a world wide dealer network, also we make OEM/ODM products for world wide customer.
