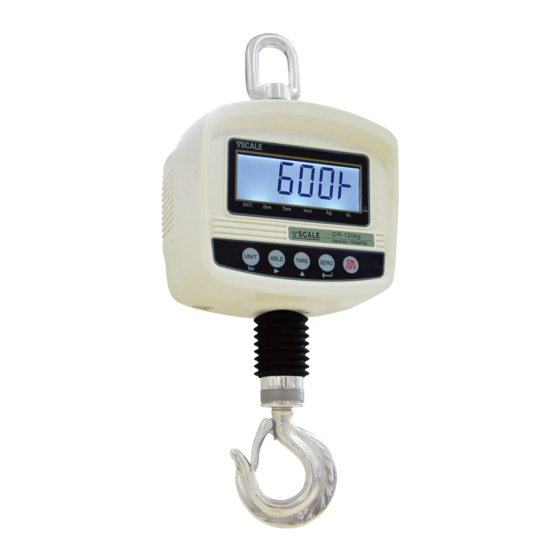

- Page 1 series Hanging Scales technical guide UGDR-E0.01 www.scalesearch.co.uk...
-
Page 3: Table Of Contents
Contents SECTION 1 INTRODUCTION……………………………………..……1 1. 1 Figures………………………………………………..…………….1 1. 2 Specifications………………………………………..……….……1 1. 3 Dimension…………………………………………..……………..2 SECTION 2 KEYBOARD AND DISPLAY………………..……………..3 2. 1 Descriptions of keys………………………………..……….…….3 2. 2 Display………………………………………………...……………3 SECTION 3 OPERATION………………………………..….…………….5 3. 1 General instruction……………………………..………………….5 3. 2 Basic operation……………………………………………………5 3. 2. 1 ON/OFF………………………………………….………………5 3. -
Page 5: Section 1 Introduction
SECTION 1 INTRODUCTION The DR series of hanging scale provides an accurate, fast and versatile series of general purpose weighing scale. 1. 1 FIGURES Large bright LCD (digit height 25mm) display with wide view angle ◆ Selectable units from kilogram (kg), pound (lb) ◆... -
Page 7: Dimension
1. 3 DIMENSION Different with 30kg. www.scalesearch.co.uk... -
Page 8: Section 2 Keyboard And Display
SECTION 2 KEYBOARD AND DISPLAY 2. 1 DESCRIPTION OF KEYS ON/OFF: power switch, use this key to turn on and turn off scale ZERO: re-zero key, use this key to return zero reading, when in setting mode, use this key to sure setting. TARE: use the tare key to subtracts tare values and changes the scale from gross mode (no tare) to net mode. -
Page 9: Section 3 Operation
SECTION 3 OPERATION 3. 1 GENERAL INSTRUCTION 1．Please read this manual carefully before you operate the hanging scale. 2. When battery goes low, the BATT icon will be display. It is the time to charge the battery with the special charger. 3．If you will let DR hanging scale deactivate for a long time, please note you also need change the battery every three months 3. -
Page 10: Section 4 Battery Charging
SECTION 4 BATTERY CHARGING 1． Please use the special charger to charge battery, use other types charger will be danger. 2． Please assure you AC power meet the rating of charge. 3． When the battery needs charging a symbol on the weight display will turn on. -
Page 11: Section 5 Calibration
SECTION 5 CALIBRATE 1) Turn off the power if you are using the scale. 2) Press TARE key during selfchecking(power on). 3) Display shows “F0 CAP”, use TARE key to select the calibration mode, then the display will show “F8 CAl”. 4) Press ZERO key to enter calibrate, display shows “UnlD”... -
Page 12: Section 6 Parameter
SECTION 6 PARAMETER 6.1 ENTER SETTING MODE Press TARE key and turn on the scale, display shows “F0 CAP”, after enter parameter setting mode, use TARE key to shift parameter items, use ZERO key to sure, use HOLD key to escape current setting item. 6.2 PARAMETER SETTING TABLE FUNCTION DESCRIPTION DEFAULT... - Page 13 F8 cal Calibrate, Uloadcalibrate weightloadcomplete See detail at SECTION 5 www.scalesearch.co.uk...
-
Page 14: Section 7 Error Codes
SECTION 7 ERROR CODES ERROR DESCRIPTION RESOLUTION CODES Remove weight from the scale. - - ol - Over range If the problem persist contact your dealer for assistance. The scale was outside the normal auto zero Err 4 Zero Setting Error setting range (4% of capacity), please check the hook is empty, or calibrate zero point again.
