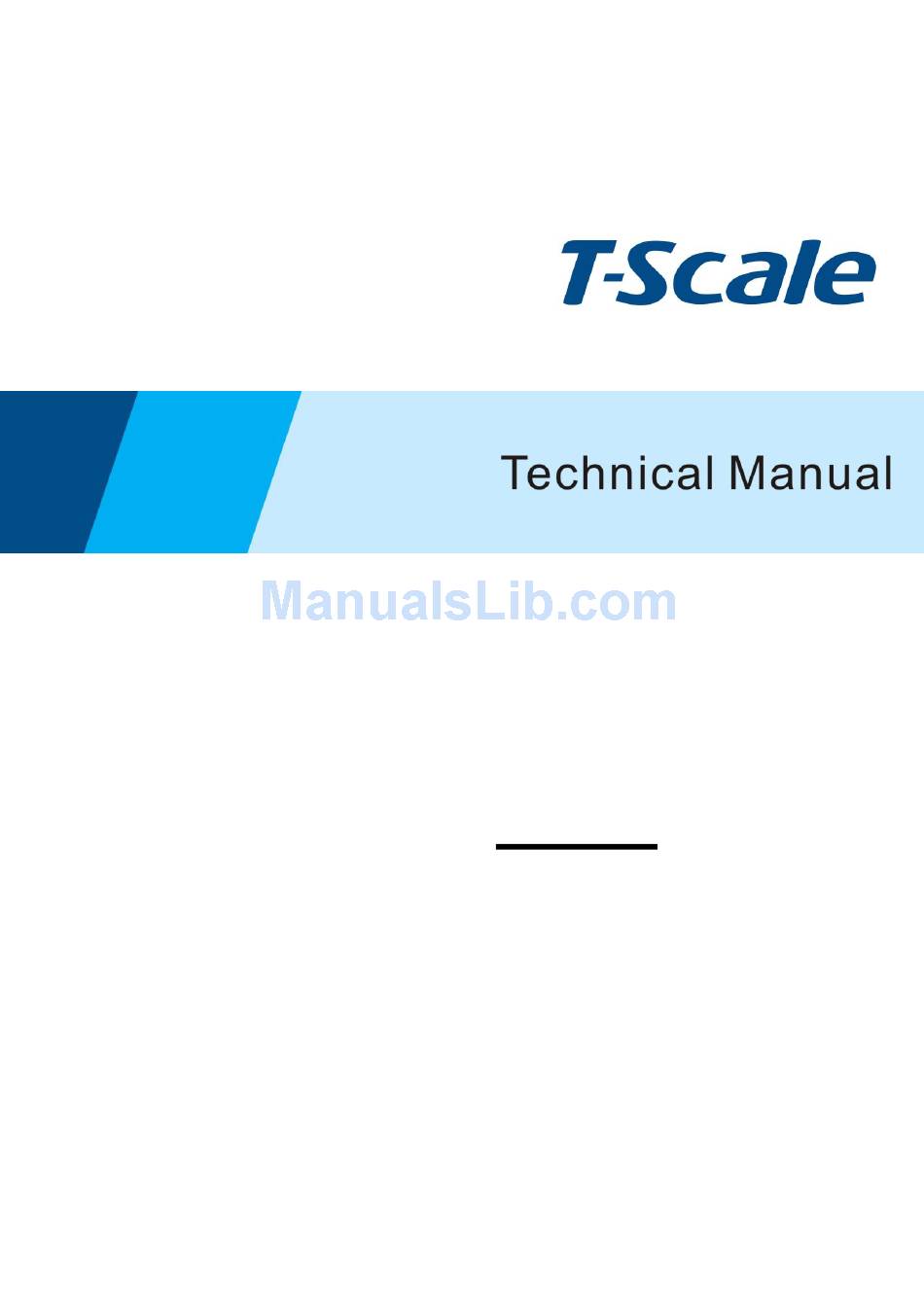

- Page 1 IHB++ Series Precision Balance REV:M1, JUne 2014...
- Page 2 IHB++ Series Technical Manual...
-
Page 3: Table Of Contents
IHB++ Series Technical Manual CONTENTS 1. PRECAUTIONS……………………………………………………………..2 2. INTRODUCTION……………………………………………………………3 3. SPECIFICATIONS………………………………………………………..4 3.1 Dimension………………………………………………………………4 3.2 Specifications…………………………………………………………..4 4. INSTALLATION……….…………………………………………………….6 5. DESCRIPTION………..............8 6. OPERATION………………………………………………………………..10 6.1 Power ON/OFF………………………………………………………10 6.2 Zero…………………………………………………………………...10 6.3 Tare…………………………………………………………………...10 6.4 Weighing Unit ………………………………………………………….10 6.5 Percent Weighing…………………………………………………….11 6.6 Parts Counting………………………………………………………..11 6.7 Accumulation………………………………………………………….12 7. -
Page 4: Precautions
IHB++ Series Technical Manual 1. PRECAUTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION Permit only qualified persons to service the instrument ... -
Page 5: Introduction

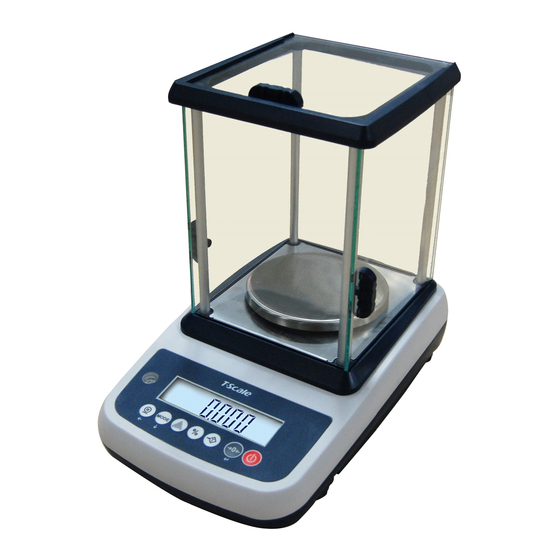

IHB++ Series Technical Manual 2. INTRODUCTION The IHB++ series balance, that amplifies signals from a load cell, converts it to digital data and displays it as a mass value. It is accurate, fast and versatile series of general purpose balances with counting, % weighing functions and accumulation ... -
Page 6: Specifications
IHB++ Series Technical Manual 3. SPECIFICATION 3.1 Dimension 3.2 Specifications IHB++ SERIES Model # IHB++ -300 IHB++ -3000 Maximum Capacity 300g 3000g Readability 0.001g 0.01g Resolution 1/300,000 1/300,000 Tare range -299.999g -2999.99g Minimum Capacity 0.02g 0.2g Linearity ± 0.003g 0.01g Φ80mm... - Page 7 IHB++ Series Technical Manual Common Specifications Interface RS-232 Output Optional Stabilisation Time 2 Seconds typical Operating Temperature 5°C - 40°C / 41°F - 104°F Power supply (external) 12V/500mA or built-in rechargeable battery 6V/1.2Ah Calibration Automatic External Σ-Δ Display 16.5 mm high 6 digits LCD with auto backlight and loading bar graph Balance Housing ABS Plastic, Stainless Steel platform...
-
Page 8: Installation
IHB++ Series Technical Manual 4. INSTALLATION Unpacking Carefully take the balance out of its package, make it sure its not damaged and all accessories are included. Remove the weighing scale from the carton. Remove the protective covering. Store the packaging and to use if you need to transport the scale later. - Page 9 IHB++ Series Technical Manual Installation Adjustable foot RS-232 Adaptor Jack Place the scale on a table.. Connect the adaptor pin in to the scale adaptor jack. Adaptor jack is locating, rear side of the scale. Adaptor connects into your AC power socket. Pluggable equipment must be installed near an easily accessible socket outlet with a protective ground/ earth contact.
-
Page 10: Description
IHB++ Series Technical Manual 5. DESCRIPTION Key Board Turns the scale power On / Off Sets display to Zero Subtracts weight of container Set percentage weighing function Set to counting mode Set to weighing units Set to print the results - 8 -... - Page 11 IHB++ Series Technical Manual Display DISPLAY FUNCTION Indicator for Zero display Indicator for Tare display Indicator for weighing capacity graph Indicator for Net weight Indicator for Display stability Indicator for piece counting Indicator for units Indicator for Percent weighing Indicator for Charging status of battery Voltage has dropped Low Voltage Fully Charged...
-
Page 12: Operation
IHB++ Series Technical Manual 6. OPERATION Initial Start-up Warm-up time of 15 minutes stabilizes the measured values after switching on. Power ON/OFF Switch on the scale by pressing . The display is switched on and the self test is started. If you want to switch off press the key again. -
Page 13: Percent Weighing
IHB++ Series Technical Manual 6.5 Percent Weighing The scale can set a sample weight to be shown as 100%. Then any other weights place on the scale, it will be displayed as a percentage of the original sample. For example: ... -
Page 14: Accumulation
IHB++ Series Technical Manual Press key to confirm, display will be shown ---- then will show the quantity Then can add goods on the platform, display will update the parts quantity automatically Press key to change normal mode, when in counting mode. 6.7 Accumulation The scale can be set to accumulate manually by pressing key. -
Page 15: Parameter
IHB++ Series Technical Manual 7. PARAMETERS Enter the Menu Turn on the scale. Press during that start up until display will be shown F1 unt Choose the Menu Press , it can choose menu block or options one by one. Enter the Selected Menu ... - Page 16 IHB++ Series Technical Manual Set BAUD rate After setting the RS 232 mode, display will be shown current baud rate b XXX. Baud rate Options: b600, b1200, b2400, b4800 and b9600 Set Printer type After setting BAUD rate display will be show the printer type Lp 50 Label Printer Ticket Printer...
-
Page 17: Calibration
IHB++ Series Technical Manual 8. CALIBRATION Turn on the scale. Press key during self checking, display will be show f 1 unt Press key until display will be show tech Note: Before enter the tech menu, press calibration switch, which is locating below the scale ... -
Page 18: Normal Calibration
IHB++ Series Technical Manual After stable and zero indicator on, display will be show Load 2 Remove the third calibration mass weight from the pan After stable and zero indicator on, display will be show Load1 Remove the second calibration mass weight from the pan ... -
Page 19: Rs232 Output
IHB++ Series Technical Manual key to enter internal counts, the display will be show “ XXXXX ”. Press Press key to escape from the menu. 9. RS232 OUTPUT 9.1 Specifications: RS-232 output of weighing data ASCII code 600~9600 Baud 8 data bits No Parity 9.2 Continuously output protocol HEADER1: ST=STABLE，... -
Page 20: Print Format
IHB++ Series Technical Manual 9.3 Print Format Printer LP-50（OS-2130D） Mode 2013/07/05 12:00 NO： S/NO： Weighing WEIGHT： 200.000g WEIGHT： 200.000g 2013/07/05 12:00 COUNT： 250 pcs COUNT： 250 pcs UNIT WT： 0.99998 g Counting UNIT WT： 0.99998 g WEIGHT： 249.998 g WEIGHT： 249.998 g 2013/07/05 12:00 PERCENT：...
