  • Page 1 Operation Manual IP30 Label Printing Scale Manual_IP30_V1...

  • Page 2: Table Of Contents

    IP30 Label Printing Scale Operation Manual CONTENTS 1. SAFTY INSTRUCTIONS........................... - 1 - 2. PRODUCT DESCRIPTION........................- 3 - 2.1. General............................- 3 - 2.2. Touch Screen...........................- 3 - 2.3. Label Printer............................- 3 - 2.4. Interfaces............................- 3 - 2.5. Models............................- 4 - 2.6.
  • Page 3 IP30 Label Printing Scale Operation Manual 5.3.3. Manually Enter Unit Price/Quantity..................- 36 - 5.3.4. Weighed Item PLU Operation....................- 37 - 5.3.5. Non- Weighed Item/ PCS PLU Operation................- 37 - 5.3.6. Single item deletion....................... - 38 - 5.3.7. All items deletion ........................- 38 - 5.3.8.

  • Page 4: Safty Instructions

    1. SAFTY INSTRUCTIONS WARNING DISCONNECT ALL POWER TO THIS UNIT BEFORE INSTALLING, CLEANING, OR SERVICING. FAILURE TO DO SO COULD RESULT IN BODILY HARM OR DAMAGE THE UNIT. CAUTION  Permit only qualified persons to service the instrument Before connecting or disconnecting any components, remove the ...
  • Page 5 IP30 Label Printing Scale Operation Manual SAFTEY INSTRUCTION The weighing scale is a precision electronic instrument, handle it carefully. 1) The device must only be operated by personnel trained in the operation of this equipment. 2) The operating personnel must read and understand the safety instructions in these operating instructions.

  • Page 6: Product Description

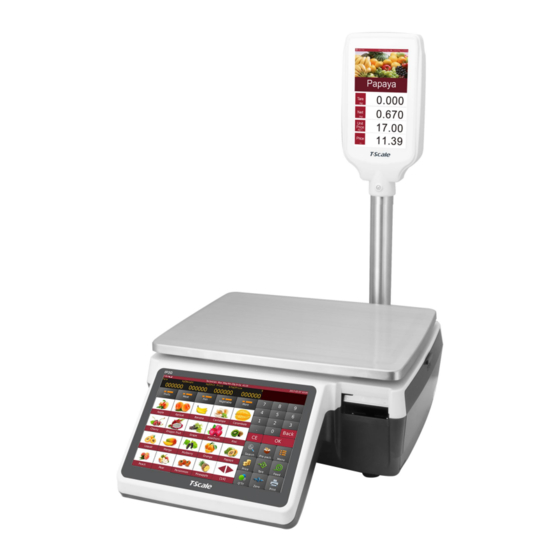

    IP30 Label Printing Scale Operation Manual 2. PRODUCT DESCRIPTION 2.1. General The IP30 T-Touch label printing scale series include full-fledged features, interfaces, 7 inch definition customer displays. The standard models are high end products for customers who aim for luxurious functions. T-touch Intelligent scale functions ensure that user can easy to find the PLU’s , fast and reliable.

  • Page 7: Models

    RJ45 Ethernet (Giga LAN) RJ11 Cash drawer（12V） RS-232 For printer or other supported equipment 2.5. Models The IP30 T-Touch label printing scale series include full-fledged features, interfaces, and choice of 7” Pole type normal definition customer displays. - 4 -...

  • Page 8: Touch Screen (Example Of Operation / User Interface)

    IP30 Label Printing Scale Operation Manual 2.6. Touch Screen (Example of Operation / User Interface) Labeling Mode Receipt Mode - 5 -...

  • Page 9: Customer Display

    IP30 Label Printing Scale Operation Manual 2.7. Customer Display - 6 -...

  • Page 10: Installation

    IP30 Label Printing Scale Operation Manual 3. INSTALLATION 3.1. Unpacking Carefully take the scale out of its package, make it sure its not damaged and all accessories are included. Accessories 1.Scale 2.Pole display assembly 3.AC main power cord 4.Stainless steel pan 5.Product manual...

  • Page 11: Mounting Platter

    IP30 Label Printing Scale Operation Manual  Bubble has to be in the center of the water level.  The correct alignment of the device can be achieved by adjusting the adjustable scale feet.  The water level should be checked regularly to assure a correct level reading.

  • Page 12: Rear Display Installation

    IP30 Label Printing Scale Operation Manual 3.4. Rear Display Installation ① Take out pole display assembly ②Connect male and female connectors well ④ Insert pole with cable to the holder ③ Take the cable connectors into the pole ⑤ Using the screw to fix the pole to...

  • Page 13: Cassette Label Printer

    IP30 Label Printing Scale Operation Manual 3.5. Cassette Label Printer - 10 -...
  • Page 14 IP30 Label Printing Scale Operation Manual Replacement of Label Roll - 11 -...

  • Page 15: Cassette Receipt Printer (Optional)

    IP30 Label Printing Scale Operation Manual 3.6. Cassette receipt printer (Optional) Cassette Release Lever Roll Stopper Lever Paper Lock Roll Holder Receipt roll bracket ① Receipt paper must be against the platen roller edge ② Receipt paper must go under this bar Replacement of Receipt Roll ①...
  • Page 16 IP30 Label Printing Scale Operation Manual - 13 -...

  • Page 17: Power Connection

    IP30 Label Printing Scale Operation Manual 3.7. Power Connection Power On/Off key A) Connect the supplied power cable to the power connection socket of the scale. B) Plug the power plug into a correctly grounded power outlet. 3.8. Start Up Putting into operation.

  • Page 18: Transport And Storage

    IP30 Label Printing Scale Operation Manual Method 1: Press key at the main menu screen, and press “Power Off” at the pop up screen to power off Method 2: Long press power-on button,the power will be off. 4) Restart scale key at the main menu screen, and press “Restart”...

  • Page 19: Display & Key Functions

    IP30 Label Printing Scale Operation Manual 4. DISPLAY & KEY FUNCTIONS 4.1. Operator Mode (Default Operation Interface) 4.2. Display and Key Functions No Indicator Name Description Zero For displaying current weighing status Stable Operator For display operator Capacity For capacity, division and minimum...
  • Page 20 IP30 Label Printing Scale Operation Manual Product Display For displaying the current product To categorize products in different Group Key groups For display PLU name & number or PLU Keys PLU picture & name PLU look-up Key To look-up PLUs...

  • Page 21: Built-In Keypad

    IP30 Label Printing Scale Operation Manual 4.3. Built-in Keypad On-Screen Keyboard will be open automatically to edit or input new data Special symbols keyboard Numeric keyboard Backspace When input text, use this key to change line Special symbols and numeric keys.

  • Page 22: Client Display

    IP30 Label Printing Scale Operation Manual 4.4. Client Display Display/Indicator Description Product image To display the selected product image Product name To display the selected product name Tare To display tare weight Weight To display product’s weight Unit Price To display the unit price...

  • Page 23: Main Menu

    IP30 Label Printing Scale Operation Manual 4.5. Main Menu Icons Name Description Sales Button Operation View Database Settings Product, Category, Format.. Data Transfer Data import and export Basic Settings General Settings Technical Settings Technical Settings Power Button Power Off Zero Button...
  • Page 24 IP30 Label Printing Scale Operation Manual Paper Recycle Switch Recycle on/off Report Button Check/Print Reports Sales 2 Used for checkout application Sale Used for custom UI Logout Button Logout from current account Print Format Receipt Format Management Used for system setting and network Launcher programme communication,ect.

  • Page 25: Operation

    IP30 Label Printing Scale Operation Manual 5. OPERATION 5.1. Function 5.1.1. Power-Up On Power-up, the scale will first perform to show system T-Touch and follow to show company logo. After that the scales will establish the current weight as a new zero reference and then automatically start up in menu mode from where the mode for weighing can be selected.

  • Page 26: Preset Tare

    IP30 Label Printing Scale Operation Manual 4)This Tare value can be cleared by pressing key, when there is no load on the platter. This tare entry cannot take place, if the platter is in in motion. 5.1.5. Preset Tare Label scales have a preset tare function, Press and hold key until to show a pretare window to input the tare value, by clicking “OK”...

  • Page 27: Operator Mode Operation

    IP30 Label Printing Scale Operation Manual 5.2. Operator Mode Operation 5.2.1. PLU (Product Look Up) Search Product names allows to search by the assigned UI keys (Direct PLU) or by using Search key 5.2.1.1. Direct PLU Click the PLU from the pages.

  • Page 28: Manually Enter Unit Price/Quantity

    IP30 Label Printing Scale Operation Manual 5.2.1.2. In-direct Product Look-up Click key to enter product look-up page. a) Product searching by using PLU number b) Product searching by using names 5.2.2. Manually Enter Unit Price/Quantity 1)When the product info is not pre-established in the scale;...

  • Page 29: Sales Operation

    IP30 Label Printing Scale Operation Manual 5.2.3. Sales Operation 5.2.3.1. Weighed Item PLU Operation a) Select a Weight PLU from the direct PLU list or Indirect PLU list. b) Display will be show selected product name & number c) Place the item on the pan and wait toget weight stable, d) Then press key to get print out label.
  • Page 30 IP30 Label Printing Scale Operation Manual or By clicking Quantity Window allows to input required PCS value d) Then press key to get print out label. key allows clearing the current product name Note: By pressing & price, or by selecting a new PLU key will be clear existing PLU name & price automatically.
  • Page 31 IP30 Label Printing Scale Operation Manual a) Select a Weight PLU from the direct PLU list or input values for non-PLU. b) Display will be show selected product name & number c) Click target Window to input number of pack and follow to click OK key...
  • Page 32 IP30 Label Printing Scale Operation Manual Total Accumulated Items for the target operation Total Weighed items for the target operation For printing total Remove item from the pan for the next operation key allows clearing the current product name & price, or by selecting a new PLU Note: By pressing key will be clear existing PLU name &...
  • Page 33 IP30 Label Printing Scale Operation Manual d) Place the goods on the pan and wait for getting stable, then press key for print out labels. Remove goods from the plate and load a new item on the plate for labeling, it will print automatically next labels.
  • Page 34 IP30 Label Printing Scale Operation Manual 5.2.3.3.3. Pre-Pack Mode – Repeat Print It’s allows to do the print multi labels automatically when the printed label removed By item/weight package settings operation as per the section 2.2.3.3.1 & 2 PS: Must be choose the function, Operation Settings > Print after paper is removed > ON for printing next label when the printed label removed 5.2.3.3.4.
  • Page 35 IP30 Label Printing Scale Operation Manual c) Display will be show the number of PCS and total price accordingly, d) Then press key to get print out label. Label will be print “Other” instead of product name key allows to clearing the current quantity & price, or clicking...
  • Page 36 IP30 Label Printing Scale Operation Manual b) Then press key to start to print out labels. It will print automatically next label when it’s removed printed label. Total operations for the target operation Total pcs items for the target operation For printing total key allows clearing the current product name &...
  • Page 37 IP30 Label Printing Scale Operation Manual 5.2.3.6.2. Pre-Pack Mode – Manual Print It’s allows to do the print by pressing when the printed label removed a) Select a Non- Weight PLU from the direct PLU list or input quantity for non-PLU and follow to Click...
  • Page 38 IP30 Label Printing Scale Operation Manual Total operations Total pcs For printing total key allows clearing the current product name & price, or by selecting a new PLU Note: By pressing key will be clear existing PLU name & price automatically.

  • Page 39: Receipt Mode Operation

    IP30 Label Printing Scale Operation Manual 5.3. Receipt Mode Operation Click button in the main interface to enter the receipt mode. If there is no button on the main interface, you need to enter Setting> Operation Setting> Show Sale2 and Custom UI, set to Both on.

  • Page 40: Weighed Item Plu Operation

    IP30 Label Printing Scale Operation Manual 2) Click key to enter unit price manually; 3)Click OK to confirm and follow to weigh; 4)For Non weight product, enter unit price and follow to enter quantity manually to get the PCS of the products;...

  • Page 41: Single Item Deletion

    IP30 Label Printing Scale Operation Manual 5.3.6. Single item deletion a) Select the items to be deleted in the ACC list; b) Click key to delete the selected item, this item will display a red line; c) Select the deleted item , click key again to clear the red line.
  • Page 42 IP30 Label Printing Scale Operation Manual b) Click key to jump out of the payment method; c) Choose a payment method, click key; d) After completing this transaction and printing out the receipt, the screen returns to the normal sales page.
  • Page 43 IP30 Label Printing Scale Operation Manual Clear Key To clear current payments Submit To confirm payment Value Discount To apply fixed discount Percentage Discount To apply percentage discount Cancel Key To clear discount values Sales Detail To check sales details...

  • Page 44: Sales Return Operation

    IP30 Label Printing Scale Operation Manual key is used for direct discount amount input. key is used for direct percentage discount input. 5.4.9. Sales Return Operation Sales return operation is for customer returns. Select an unused Vendor key from the list.

  • Page 45: Calibration

    IP30 Label Printing Scale Operation Manual 6. CALIBRATION It’s allows you to do the calibration by using different ways to use in the different environments. Click key to enter parameter setting It may be ask to input password to access the parameter, The default password is 999999999.Before to enter calibration mode,it’s required to press calibration switch,locating below the...
  • Page 46 IP30 Label Printing Scale Operation Manual Click “Next” key. 3) Load Calibration Weight (Place the test weight on the platter) Click “Next” key. 4) Press “Next” key ( Calibration Completed) Click the “End” key for close the window or If the display shown fail, click “Start”...

  • Page 47: Trouble Shooting

    IP30 Label Printing Scale Operation Manual 7. TROUBLE SHOOTING The following table lists the most common problems along with their solutions and assists you to solve problems. Problem Possible cause Common solutions Check power switch is turned on, and power Mains power is turned off LED is working.

  • Page 48: Error Messages

    IP30 Label Printing Scale Operation Manual Disconnect battery and charger, connect again and turn on the power Verify the batteries are rechargeable types and Disconnect AC charging voltage getting proper. Plug AC adapter will turn Battery low adapter to charge battery.

  • Page 49: Technical Data

    IP30 Label Printing Scale Operation Manual 8. TECHNICAL DATA 8.1. General Specification MODEL IP30 Display Operator Display: 10.1" TFT LCD Display Customer Display: 7” Colored Display Display Resolution 10”: 1280*800 px; 7”:800*480; Max Capacity 6kg/15kg; 15kg/30kg Min Capacity 40g; 100g Readability 2g/5g;...

  • Page 50: Label Printer Specification

    IP30 Label Printing Scale Operation Manual 8.2. Label Printer Specification Name Description Printer Type Cassette Type Printing Method Direct Thermal Printing Speed 100mm/s Label Roll Max Outer Diameter of Roll: 100mm Inner Diameter of Roll:40mm Max Label Width: 60mm Label Print Area...
