Summary of Contents for T Scale T-Touch VX7-11

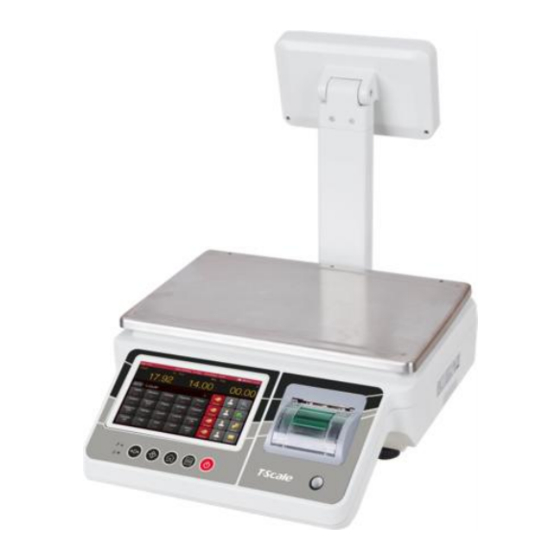

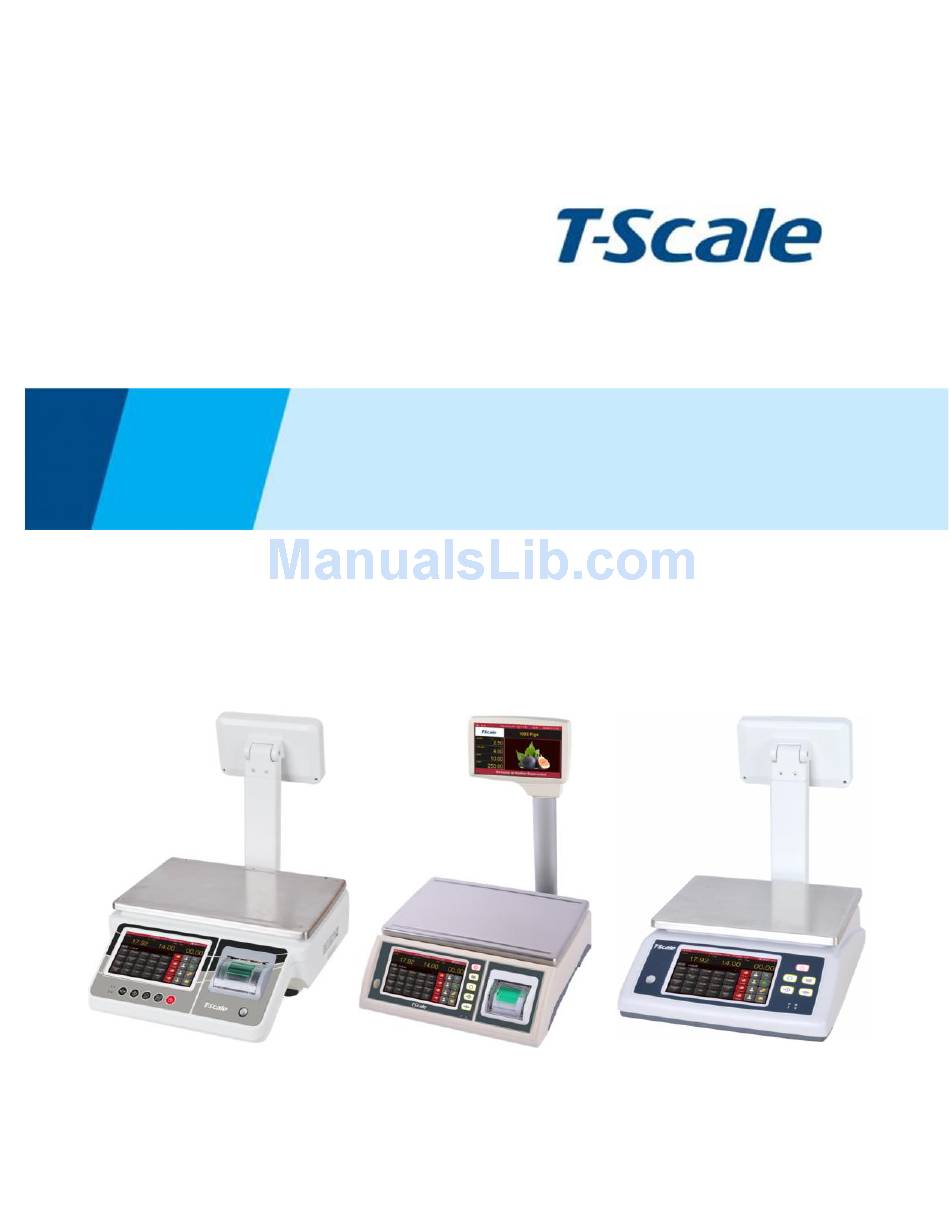

- Page 1 X7-11_J7-11_A7-11 T-Touch Weighing Application Technical Manual A1.10 30/06/14...
-
Page 2: Table Of Contents
CONTENTS 1. Specifications..………………………..………..................2 1.1. General..……………………..…………………………………………………………………….2 1.2. Dimension….………………………………………………………………………………………3 2. Installation………………..………..…………………………………………………………………………...5 2.1. Requirements..……………………………………………………………………………………5 2.2. RS-232 Connection…………..…………………………………………………………………..7 3. Operation…………………………...…………….……………………………………………………………..8 3.1. Basic Operation…………………………………..……………………………………………….8 3.2. Panel key Functions………………………………………………………………………………8 3.3. Touch Key Functions……………………………………………………………………………..9 3.4. Indications………………………………………………………………………………………10 3.5. On-Screen Key Board……………...…………………………………………………………..11 4. Operations…………..…………..………………………………….………………………………………...12 4.1. Basic Operation..…………………….…………………………………………………………12 4.2. Product Search……………………………...…………………………………………………..14 4.3. - Page 3 T-Touch Retail Application A1.10 INTRODUCTION The X7-11_J7-11_A7-11 price application is designed for multi- purpose retail operations. It’s using Touch screen for user friendly and fastest operations. It’s combined software for retail management and inbuilt printer (X7-11_J7-11). Multi -language will support for to use different countries. Its HD display can use for to show product pictures, advertisements, sales promotions, and sales messages and all for to increase sales and revenue.
-
Page 4: Specifications
T-Touch Retail Application A1.10 1. SPECIFICATIONS 1.1. General Capacity 6 / 15 / 30 External Resolution 3000e Tare range Max-1d AD Type Sigma delta AD Speed Max. 60 times/second Internal Counts 1,000,000 Weighing Units kg, g, tj, gj, lb, oz, lz Load Cell Excitation 5VDC Input Signal Range... -
Page 5: Dimension
T-Touch Retail Application A1.10 Dimension: X7-11 Dimension: J7-11 - 3-... - Page 6 T-Touch Retail Application A1.10 Dimension: A7-11 - 4-...
-
Page 7: Installation
T-Touch Retail Application A1.10 2. INSTALLATION 2.1 Requirements The mounting location must be a stable surface and free of heat, water and humidity. 2.2 Connector’s RS-232 RS-232 RJ - 11 RJ - 45 USB Port Adaptor Jack - 5-... - Page 8 T-Touch Retail Application A1.10 Printer : X7-11_J7-11 General Specification Paper Roll loading or unloading 1. Lift the lever and pull out until the 2. Open Cover cover group is released 3. Load / unload Paper rolls 4. Close Cover group, Press both side to close correctly Printer: Paper Cut 5.
-
Page 9: Rs-232 Connection
T-Touch Retail Application A1.10 2.2 RS-232 Connection The RS-232 port is located on the side or rear of the scale (refer to component description). It is a DB9 connector, and its signals are defined in the following Pin 2 : RXD Pin 3 : TXD Pin 4 : VCC Pin 5 : GND... -
Page 10: Operation
T-Touch Retail Application A1.10 3. OPERATION 3.1 Basic Operations 3.1.1 Power on Press and hold key until to hear a beep sound. It will take around 30 seconds for to run the TOS operating system and application software. 3.1.2 Standby Press key for to keep display standby / sleep. -
Page 11: Touch Key Functions
T-Touch Retail Application A1.10 3.3 Touch Key Functions Keys Description Search; for to search product name Group: for to select product Vendor Key: save item for the vendor Quantity: for to enter quantity Price: for to enter price Check: check out vendor Weight window Price Window Total Price Window... -
Page 12: Indications
T-Touch Retail Application A1.10 3.4 Indications Indications Description when the scale back to zero or by pressing When Tare, by pressing When the scale is in stable. Maximum capacity of the scale Minimum weight of the scale Division of the scale Software version Battery status Date and time... -
Page 13: On-Screen Keyboard
T-Touch Retail Application A1.10 3.5 On-Screen Keyboard On-Screen Keyboard will be open automatically for to edit or input new data, Backspace : When input text, use this key to change line : Special symbols and numeric keys. : Close key board : Shift to Capital letter / small letter. -
Page 14: Operations
T-Touch Retail Application A1.10 4. OPERATION 4.1 Basic Operation Home Display 4.1.1 Weighing Operation Turn on the scale and ensure Zero display, select PLU name from the list and place the good accordingly to the platform, total price will be calculated automatically and displayed on the total price window. - Page 15 T-Touch Retail Application A1.10 Paid amount enter by using numeric key, scale will calculate the change amount. Press SAVE key to confirm, printer will print records. (If cash drawer is connected it will open automatically) Press End key to exit from the check out. Note: If need additional print out, press print key.
-
Page 16: Product Search
T-Touch Retail Application A1.10 4.1.4 Sale Return Operation (Cancel / Minus Operation) If want to return sales operation, select sale mode to Returns Mode. For settings, select Settings > Basic Operation > Sale mode Operation: Select PLU name from the list and place the good accordingly to the platform, total price will be calculated automatically and displayed on the total price window. -
Page 17: Input Unit Price
T-Touch Retail Application A1.10 4.2.2 Indirect PLU (Max: 9999 Nos) Press key, display will be change to the product search page . Press alphabetic key for to to search the product name or press numeric key for to search the PLU number Press here to search name by input... -
Page 18: Input Quantity
T-Touch Retail Application A1.10 4.4 Input Quantity If not select any PLU and want to get price based on the number of goods, (first want to input unit price; see section input unit price) Press key, numeric keys will be show and quantity display will be blink, Input quantity by using numeric keys, total price display will be show total price... -
Page 19: Menu Settings
T-Touch Retail Application A1.10 5. MENU SETTINGS Press key, a menu bar will be show at the middle of the display. 5.1. Logout Press key to exit the Admin / Operator Operation. Display will be ask to confirm logout, press OK to confirm or Cancel to go back. If press OK for to logout, Display will be show to log in display. -
Page 20: Settings
T-Touch Retail Application A1.10 5.2. Setting Note: During the settings it will ask password for settings, Default Settings password: 9999 Press key to enter the parameter settings. Display will be show parameter settings. 5.2.1. Basic Information 5.2.1.1 User information Enter company information’s Can use for print outs and all for to get customer details LOGO Settings;... - Page 21 T-Touch Retail Application A1.10 Select “usb” and press “open” Select “logo file” and press “open” Selected file will be displayed This picture will be displayed few seconds, when it’s turned on the scale. 5.2.1.2. Currency Select currency symbol from the list or input currency name - 19-...
- Page 22 T-Touch Retail Application A1.10 5.2.1.3 Price Decimal Point For to select price decimal point from the list 5.2.1.4. Price decimal point mode Select price decimal mode option to float or fix 5.2.1.5. Price Rounding Select price rounding option from the list 5.2.1.6.
-
Page 23: System Settings
T-Touch Retail Application A1.10 5.2.2. System settings 5.2.2.1. Gravity settings Gravity can enter as per your local gravity for to avoid calibration errors. Note: Please assure that you have input correct gravity value every time before calibration 5.2.2.2. Date and Time It can set date and time as per the country Press Set Date for to select date and Press Set Time for to select Time... - Page 24 T-Touch Retail Application A1.10 5.2.2.4. Backlight Back light can adjust as per your convenient Move Scroll bar left (decrease) or right (increase) for to adjust brightness of the backlight. Press < key at the top of the left corner for to go back to last step, or press other options to go to next step.
- Page 25 T-Touch Retail Application A1.10 5.2.2.7. System Properties It can view the software version, Operation System version, remaining storage memory, and other system information. Press << key at the top of the left corner for to go back to last step, or press other options to go to next step.
-
Page 26: Weighing Setting
T-Touch Retail Application A1.10 5.2.3. Weighing settings 5.2.3.1. Approval setting It can select weighing settings to None Approval / OIML Approval Press < key at the top of the left corner for to go back to last step, or press other options to go to next step. - Page 27 T-Touch Retail Application A1.10 5.2.3.4. Capacity Setting Use the numeric keypad to input capacity Note: If it’s selected dual interval or dual range, it’s required to input capacity Max1 and Max 2 It is required to set max2 > max1. Press <...
- Page 28 T-Touch Retail Application A1.10 5.2.3.6. Weight Unit Select weighing unit from the list, Press < key at the top of the left corner for to go back to last step, or press other options to go to next step Note: if select approval setting as OIML, weight unit will be show only kg and g.
-
Page 29: Operating Setting
T-Touch Retail Application A1.10 5.2.3.10. Tare Mode Tare Operation. Press Tare mode list to Multi-Tare Permission or Multi –Tare Disable. Multi Tare Permission: It can do multiple tare operations. Muti Tare Denied: One time only can do tare operation. Press < key at the top of the left corner for to go back to last step, or press other options to go to next step. - Page 30 T-Touch Retail Application A1.10 5.2.4.2 Total Rounding Select the desired rounding options from the list for check out/billing. Closed: Rounding off Rounding to 0.1: Rounding to 1: Press < key at the top of the left corner for to go back to last step, or press other options to go to next step.
- Page 31 T-Touch Retail Application A1.10 5.2.4.6. Save Price after ACC It can select, auto save on or off. Auto Save on: Input price value will be there until to cancel or change. Auto Save Off: input price value will clear automatically once finish the sale operation. 5.2.4.7.
-
Page 32: Calibration
T-Touch Retail Application A1.10 5.2.5 Calibration 5.2.5.1. Calibration Press START key ; Display will be show 1: Unload, Keep empty platform Press NEXT key, Display will be show 2: Enter calibration weight, for to enter calibration weight Input calibration weight value Press NEXT key, Display will be show 3: load calibration weight,... - Page 33 T-Touch Retail Application A1.10 Press NEXT key, 4: Press Next when stable Wait for to display stable indication and Press NEXT key, Display will be show Calibration Finished If its show, FAIL, Please Start again Please check the internal counts (section 5.2.5.2) if the counts is increasing correctly, when pressing the pan, do the calibration again.
-
Page 34: Communication
T-Touch Retail Application A1.10 5.2.6. Communication 5.2.6.1. Build-in com operation Select built in printer off / epm205 (for turn on) 5.2.6.2. Com 1 Select the serial port options, including transmit mode, baud rate, data bits, and stop bits. Mode: Selectable Off ;... - Page 35 T-Touch Retail Application A1.10 5.2.6.3. Com 2 Select the serial port options, including transmit mode, baud rate, data bits, and stop bits as per section 5.2.6.2 com 1. It can select interface RS232 / RS422 / RS485 Press here to select interface to RS232 / RS422 / RS485 5.2.6.4.
-
Page 36: Back Display
T-Touch Retail Application A1.10 5.2.6.5. Update Setting (Optional) Connect to the FTP server Note: Reserved option for FTP updation 5.2.7 Back Display This function is used for to set up back / customer display 5.2.7.1. Logo Setting. Back Display Logo can be select from the file / USB disk. - Page 37 T-Touch Retail Application A1.10 5.2.7.3. Advertisement Window. Select back display mode of operation. Product Image: When select PLU , display will show PLU image (if save image in that PLU ID) For Advertisement: Display will show Ad picture For Accounts Only: Display will be show vendor operation details 5.2.7.4.
-
Page 38: Id Settings
T-Touch Retail Application A1.10 5.3. ID Settings ID settings can manage PLU ID settings, Group names, Tax rates and User . 5.3.1 Product ID Select Product folder to edit or add PLU Press here to add Press here to edit new PLU exist PLU Click here to... - Page 39 T-Touch Retail Application A1.10 Press here to enable key board 5.3.2 Group ID Select Group folder to edit or rename Press here to Save - 37-...
-
Page 40: Data Transfer
T-Touch Retail Application A1.10 5.3.3 Tax Select Tax folder to edit or add 5.3.4 User Select User folder to edit or add operator name and operator password. 5.4. Data Transfer Display will be show Export / import options. Want to connect USB/Pen drive to the scale for to export / import operation. -
Page 41: Report
T-Touch Retail Application A1.10 Import Images Images can be import for products and promotion Export Record to Excel Sales report in Excel format will be export to the USB/Pen drive 5.5. Report Sales reports will be automatically categorized today, week, month, custom reports and sales details. Today Report Press Today report option, display will be show Week Report... - Page 42 T-Touch Retail Application A1.10 Month Report Press month report option, display will be show Custom Report Press custom report option, display will be show Press date option to select as per wish records from the date start and date end. Sales Details Press sales details for to get the details.
-
Page 43: Print Format
T-Touch Retail Application A1.10 5.6. Print formats Press option for to select the print formats for the label , receipt and report Label Format Select label format from the list and set as default for to set com port and printer. Receipt Format Select receipt format from the list and set as default for to set com port and printer. -
Page 44: Price Type Option
T-Touch Retail Application A1.10 Returns Format Select returns format from the list and set as default for to set com port and printer Note: This format is for Return mode of operation 5.7. Price Type Option Press option for to select price per kg or price per 100g 5.8. - Page 45 T-Touch Retail Application A1.10 2. Bill List on/off Bill List On: Display will be show detailed list for check out operation Bill List Off: Display will be show with out list for check out operation 3. Give Change on/off Change On; During the Check out operation will be show for to input paid amount, and will show change details accordingly Change Off:...
-
Page 46: Help
T-Touch Retail Application A1.10 5. Print per sale on/off Printing option can select per sale operation 5.7. Help Option Press key to read basic operation manual / tutorial - 44-... -
Page 47: Problems And Solutions
T-Touch Retail Application A1.10 6. Problems And Solutions Problem Possible cause Common solutions Mains power is turned off Check power switch is turned on, and Power supply not plugged in power LED is working. Can’t turn on power Power supply faulty Verify the voltage going to the scale Internal battery not charged matches the power supply labels on the... - Page 48 T-Touch Retail Application A1.10 Housing assembled by over tighten. touch screen. Loose housing screws, if overtighten. Hold ON/OFF key for 6 seconds to restart the scale. System hang Software error, need restart Disconnect battery and charger, connect again and turn on the power Verify the batteries are rechargeable types and charging voltage getting Disconnect AC...
- Page 49 The company was founded in Taiwan in 1967 as Taiwan Scale Mfg Co., Ltd in order to produce Mechanical Weighing Instrument. Today, this privately owned company is recognized worldwide as a leading Electronic Weighing Scale Manufacturer. The core business of TSCALE is the development, manufacture, worldwide sales/marketing and service of electronic weighing instruments.
