2
INSTALLATION AND CONNECTIONS

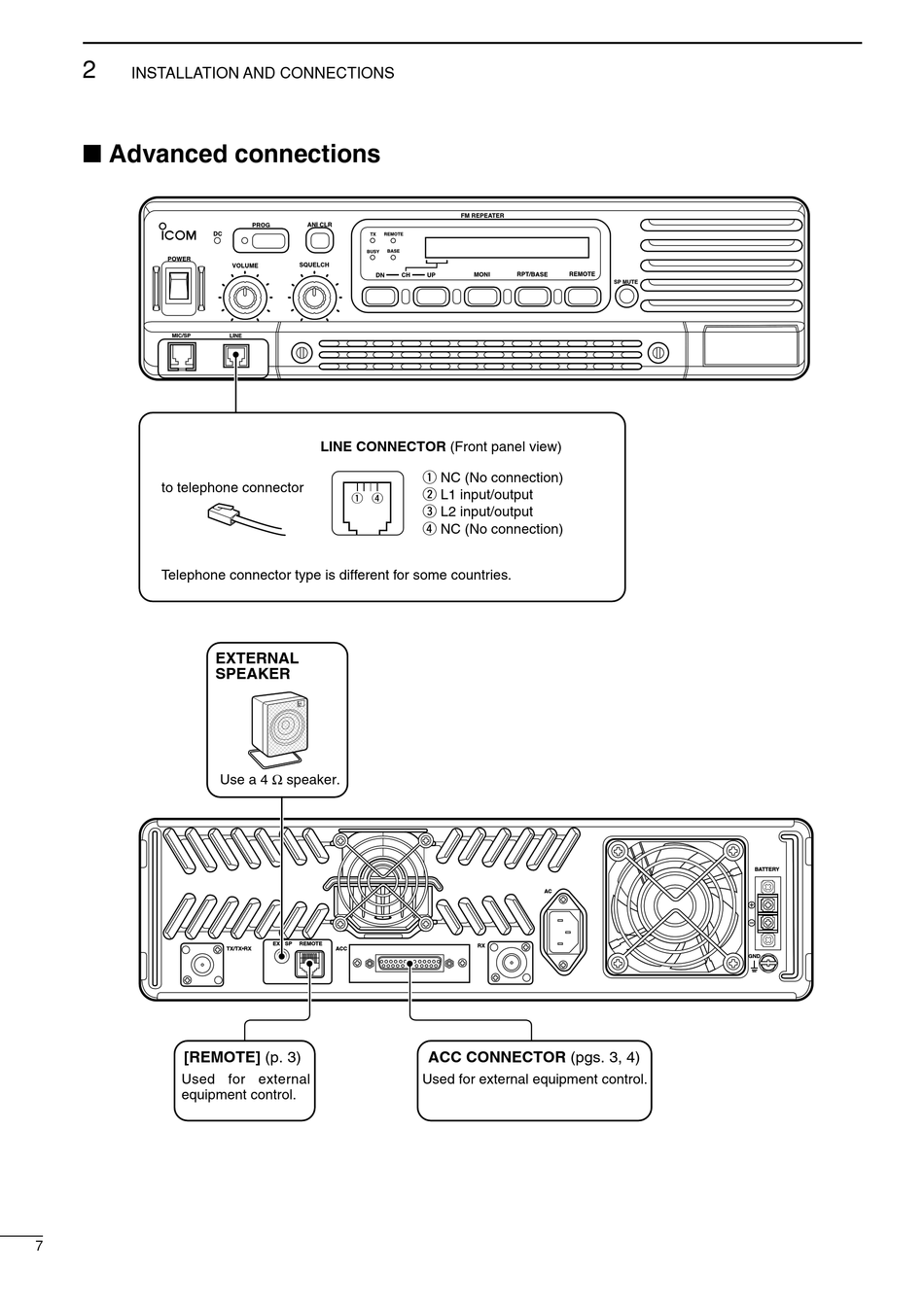

I Advanced connections
to telephone connector
Telephone connector type is different for some countries.
[REMOTE] (p. 3)
Used for external
equipment control.
7
LINE CONNECTOR (Front panel view)
q r
EXTERNAL
SPEAKER
Use a 4 Ω speaker.
EXT SP
REMOTE
TX/TX•RX
ACC
q NC (No connection)
w L1 input/output
e L2 input/output
r NC (No connection)
AC
RX
ACC CONNECTOR (pgs. 3, 4)
Used for external equipment control.
BATTERY
GND
