Never attempt to repair or
DANGER
perform maintenance on
the unit until the main electrical power to the
unit has been disconnected!

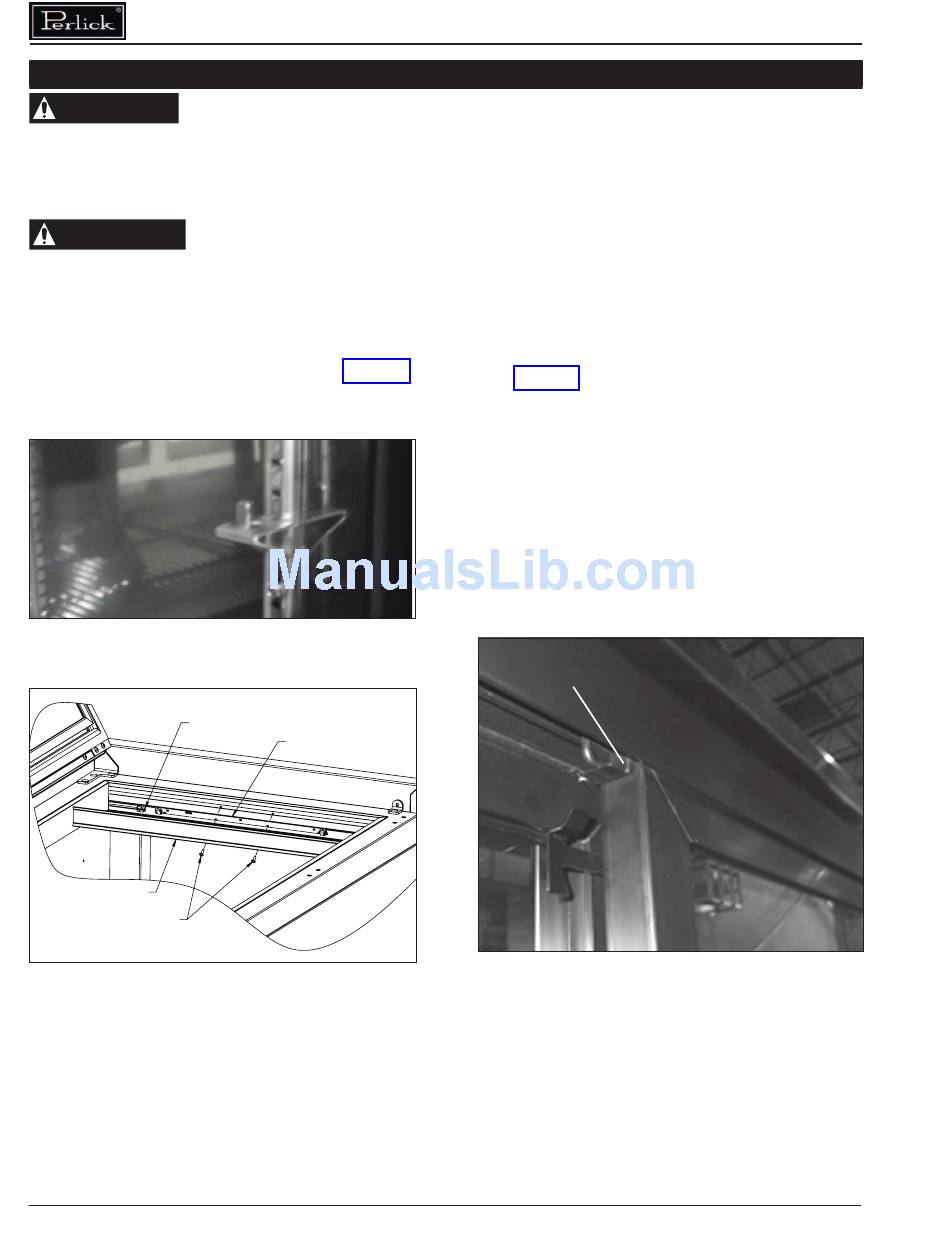

Shelving Adjustment
Completely empty shelf or
CAUTION
drawer before removing.
1. Open the door. Tilt the shelf and remove it
from the unit
2. Reposition each bracket separately. Grasp the
middle of the bracket, pull the front end up and
out, then forward to remove it. See Figure 3.
3. Place brackets at desired location and reinstall
shelf(s).
Figure 3. Shelf Bracket
LED Light Replacement
Unplug LED Light Strip
Lens Cover
#6-32 x 3/8"
machine screw (Qty. 2)
Figure 4. Interior LED Light
1. Open the door.
2. Using a flat blade screwdriver, carefully pry
off the lens cover.
3. Remove the two screws securing LED light to
housing.
4. Unplug the LED from the wiring harness.
Printed in USA
Models SDB/SDP Installation & Operation Manual

adjusTmenTs

LED Light Strip
6
5. Plug new LED into harness and secure to
housing using screws removed in step 2.
6. Snap LED cover into place.
Sliding Doors
Removing / Installing
1. To remove the sliding door, simply grasp the
door on each side and lift up off the bottom
track, then tilt outwards and pull down to
remove from upper track.
2. To reinstall sliding door, place door in upper
track, making sure to engage the bracket
(Figure 5), lift door up into the track and place
into the bottom track.
Adjusting Door Spring Tension
A tension spring is located in the upper track of
each door. To increase or decrease spring tension,
remove the Phillips screw and position the bracket
in one of three detentes and reinstall screw. The
detente farthest to the left provides the least
amount of tension.
NOTE: Units are shipped from the factory with
springs set at the weakest setting.
Make sure door engages bracket
Figure 5. Removing/Installing Sliding Door
Sliding Door Lock
Each set of sliding doors is equipped with a keyed
lock located on the bottom of the right side door. To
lock the doors, place the lock lever in the DOWN
position and lock with the key. Unlock with the key
and place lever in the UP position to open.
