5

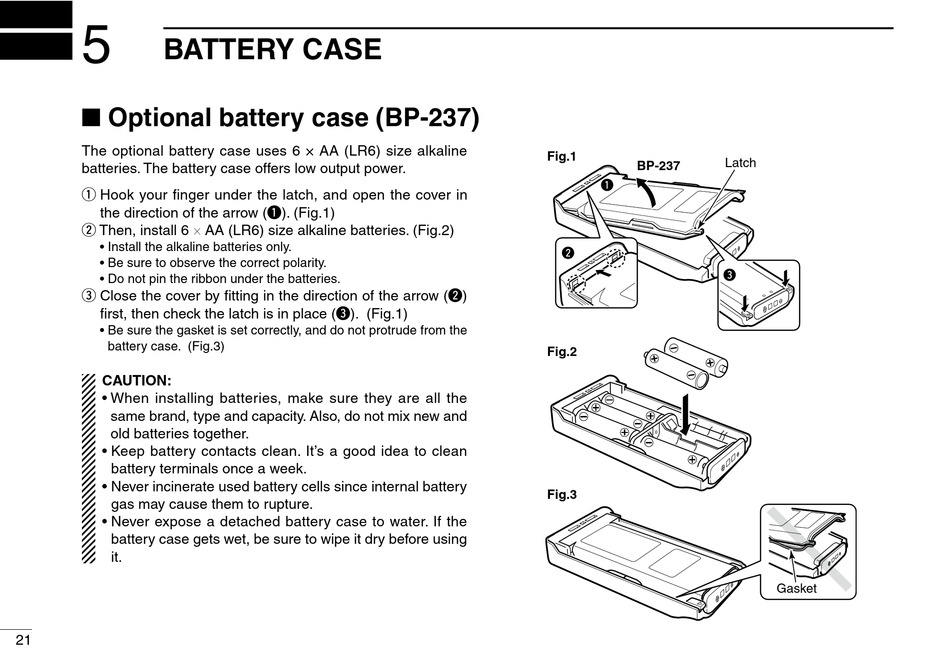

BATTERY CASE

■ Optional battery case (BP-237)

The optional battery case uses 6 × AA (LR6) size alkaline
batteries. The battery case offers low output power.
q Hook your finger under the latch, and open the cover in
the direction of the arrow (q). (Fig.1)
w Then, install 6 × AA (LR6) size alkaline batteries. (Fig.2)
• Install the alkaline batteries only.
• Be sure to observe the correct polarity.
• Do not pin the ribbon under the batteries.
e Close the cover by fitting in the direction of the arrow (w)
first, then check the latch is in place (e). (Fig.1)
• Be sure the gasket is set correctly, and do not protrude from the
battery case. (Fig.3)
CAUTION:
• When installing batteries, make sure they are all the
same brand, type and capacity. Also, do not mix new and
old batteries together.
• Keep battery contacts clean. It's a good idea to clean
battery terminals once a week.
• Never incinerate used battery cells since internal battery
gas may cause them to rupture.
• Never expose a detached battery case to water. If the
battery case gets wet, be sure to wipe it dry before using
it.
21
Fig.1
Latch
BP-237
q
w
e
Fig.2
Fig.3
Gasket
