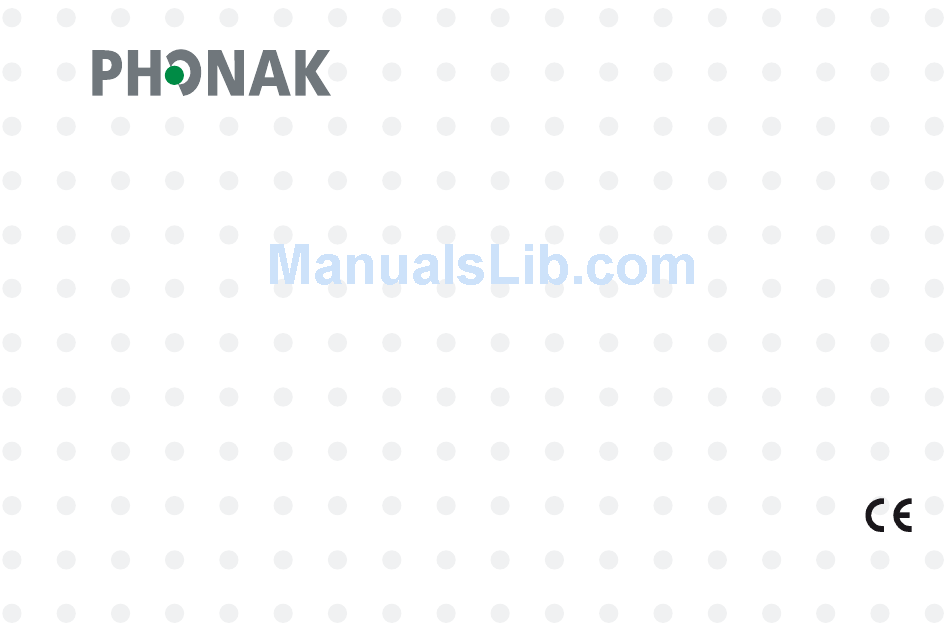

Page 1: Remote Control
Remote Control SoundPilot2 User Guide... - Page 2 Congratulations on choosing a Phonak digital hearing system. Your new SoundPilot2 remote control is a very important part of it. SoundPilot2 is a small, elegant and user-friendly remote control which offers you "binaural" access to all the functions of your digital hearing computers as well as the opportunity for easy management of your hearing programs.
- Page 3 Description SoundPilot2 Reverse side SoundPilot2 ON/OFF switch Additional keys (programs 4 and 5) LED indicator Battery* compartment cover Function keys Clip Volume control key (+ or –) *Battery (1.5 V) type AAA, LR03 or AM4, Alcaline. Use of rechargeable batteries is not...
-
Page 4: Replacing The Battery
Replacing the battery Switch off the SoundPilot2. The battery compartment is located on the bottom of the SoundPilot2. Press the clip, and slide the battery cover in the direction of the arrow to remove it. Press the clip and insert a new battery as shown in the drawing. Be sure to insert the battery in the correct +/–... - Page 5 While still pressing the clip, secure the battery cover by sliding it in the direction of the arrow. Note: Replace the SoundPilot2 battery if the LED indicator does not flash when a key is pressed, while the SoundPilot2 is "ON".
- Page 6 1 1 . . S S w w i i t t c c h h i i n n g g t t h h e e r r e e m m o o t t e e c c o o n n t t r r o o l l O O N N o o r r O O F F F F • The SoundPilot2 remote control is "ON" when the slider is pushed forward. The LED indicator is then visible.
- Page 7 • Switch your remote control to "OFF" to avoid unintentional manipulation (while in your bag or your pocket for example) or if the SoundPilot2 isn’t used for a long time. To switch the SoundPilot2 remote control "OFF", pull the slider backward.
- Page 8 2 2 . . O O p p e e r r a a t t i i o o n n d d i i s s t t a a n n c c e e The SoundPilot2 remote control is designed to be used from approximately one arm’s length.
- Page 9 5 5 . . U U s s i i n n g g y y o o u u r r h h e e a a r r i i n n g g p p r r o o g g r r a a m m Each key of the SoundPilot2 remote control activates a specific mode or program saved in your hearing instrument by your hearing care professional.
- Page 10 C C o o n n f f i i r r m m a a t t i i o o n n s s • The LED on your SoundPilot2 flashes to confirm you are pressing a key.
- Page 11 SoundPilot2 6 6 . . T T o o i i n n c c r r e e a a s s e e o o r r d d e e c c r r e e a a s s e e t t h h e e v v o o l l u u m m e e o o f f y y o o u u r r h h e e a a r r i i n n g g i i n n s s t t r r u u m m e e n n t t s s : : •...
- Page 12 • Every flash of the light indicates that the remote control is sending a command to the hearing instrument(s) to change the volume by one step. At the same time, your instrument may beep. As long as the key is depressed, after a short period of time, the volume will continue to increase or decrease until the maximum or the minimum has been reached.
- Page 13 Accessories To protect your SoundPilot2, the instrument is delivered with an elegant softcase (standard). The clip of the SoundPilot2 allows it to be clipped on your belt, to your bag or in your pocket. Other softcase options are available: • A softcase with a transparent front window and zipper closure to fully protect the SoundPilot2 .
- Page 14 2 2 . . I I n n t t e e r r f f e e r r e e n n c c e e w w i i t t h h m m e e d d i i c c a a l l d d e e v v i i c c e e s s The SoundPilot2 remote control uses low-power, digitally coded inductive transmission to communicate to your hearing instrument(s).
- Page 15 Thanks to this code, your SoundPilot2 will not affect hearing instruments worn by others. 3. If you will not be using the SoundPilot2 for a long period of time, be sure to switch off the SoundPilot2 or to remove the batteries.
- Page 16 6. Protect your SoundPilot2 from excess moisture (bathing, swimming) and heat (radiator, car dashboard in summer). Protect it from excessive shock and vibration. 7. If your SoundPilot2 fails to operate after you have correctly inserted a new battery, contact your hearing care professional. For coding reasons, please always bring both...
- Page 17 The symbol with the crossed out disposal bin indicates that this remote control shall not be treated as household waste. Please hand over your old or unused remote control to the applicable collection point for the recycling of electrical and electronic equipment or bring your old remote control to your hearing care professional for appropriate disposal.
-
Page 18: Phonak Distributors Worldwide
(detailed information on w w w w w w . . p p h h o o n n a a k k . . c c o o m m ) ) Australia Phonak Australasia Pty. Ltd., Baulkham Hills N. S. W. 2153 Austria Hansaton Akustische Geräte GmbH, 5020 Salzburg... -
Page 19: Service And Warranty
Service and Warranty Phonak offers you a comprehensive global warranty which becomes effective on the date of purchase. Please ask your hearing care professional about the details and duration. This warranty covers any repairs due to defects in material and/or workmanship. The warranty does not cover damage from improper handling or care, exposure to chemicals, immersion in water or undue stress. - Page 20 Your hearing care professional:...
