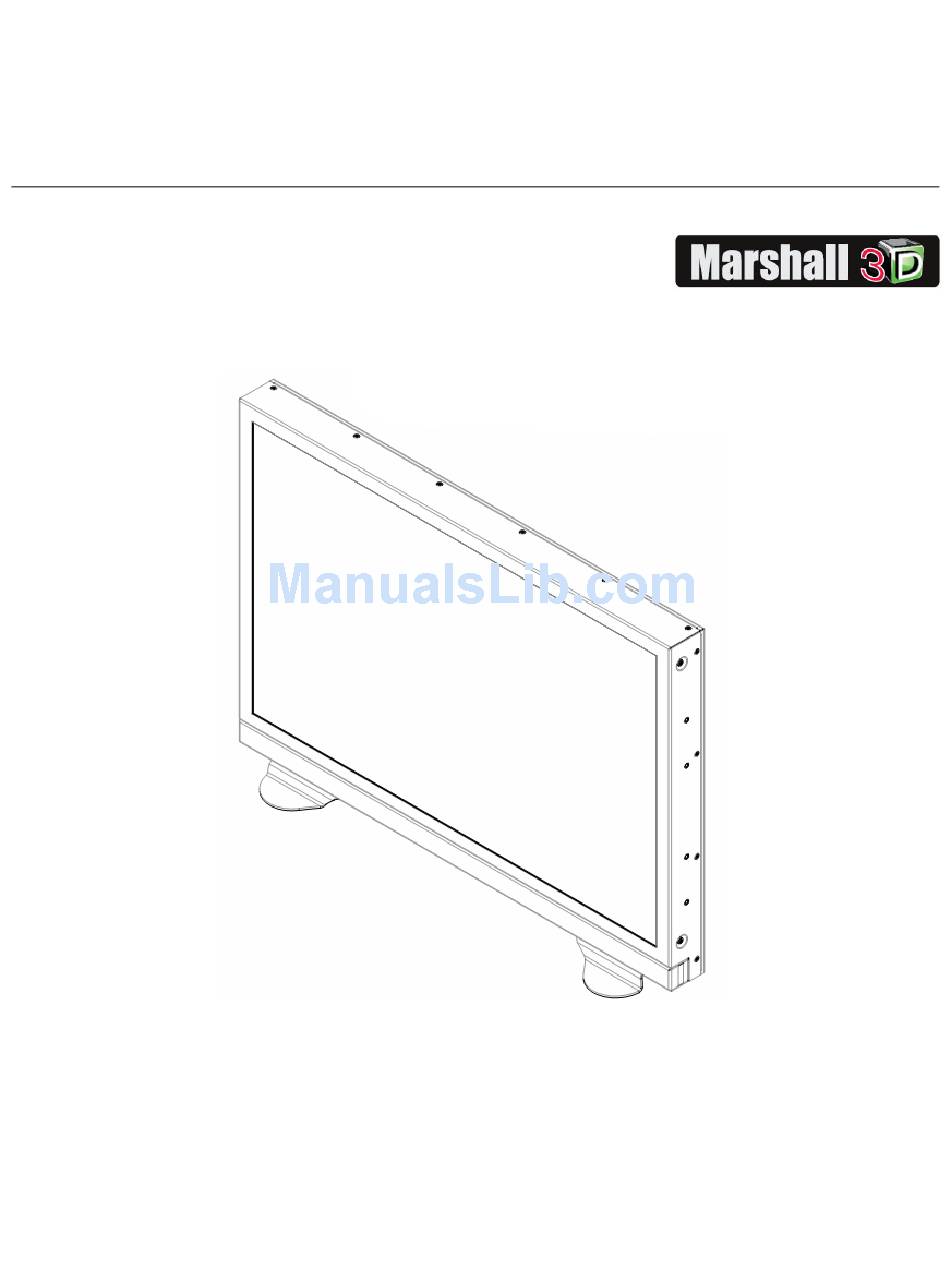

Page 1: Operating Instructions

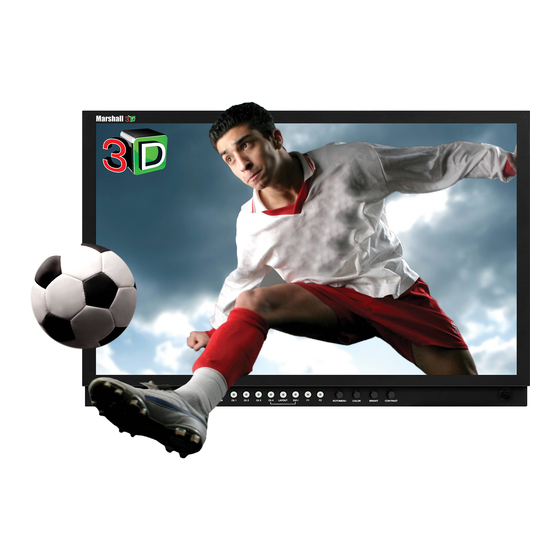

Marshall Electronics 3D-241-HDSDI Model No. 24” Full Resolution Stereoscopic 3D Monitor Operating Instructions... - Page 2 This page intentionally left blank...
-
Page 3: Table Of Contents
Table of Contents Product Overview .........................4 Features ............................4 Installation and Accessories ......................5 Monitor Front ..........................6 Monitor Rear..........................7 Compatible Input Formats ......................8 2D / 3D Multi-View Layouts ......................9 Menu and Navigation........................11 Using the RotoMenu knob ......................11 3D Configuration Submenu ......................13 Video Configuration Submenu....................14 DVI Configuration Submenu .......................16 Color Configuration Submenu ....................17 System Configuration Submenu ....................17... -
Page 4: Product Overview
The circular polarizing system used employs a 3D Arisawa Xpol® optical filter applied to the surface of the display. The 3D-241-HDSDI also has 4 HDSDI inputs which provide the ability to monitor two S3D (right eye / left eye) HDSDI signals. By using circular polarized glasses, the user can simultaneously view multiple 3D monitors in a production or controlroom environment. -
Page 5: Installation And Accessories
Installation and Accessories Unpacking Carefully unpack the 3D-241-HDSDI monitor and verify that the following items are included: • 3D-241-HDSDI Monitor • V-PS24-7.5 Power Supply with 4-Pin XLR Connector • Operating Instructions • GL-C45 3D Glasses (2 Pair) • Desktop Stand (V-ST23-32) Accessories The 3D-241-HDSDI comes with a desktop stand (V-ST23-32). -
Page 6: Monitor Front
Monitor Front POWER (Stand-by) Toggle the monitor between 2D mode and 3D mode2. When 3D mode is enabled, the in-button Turn the monitor backlight off or on by pressing LED will illuminate. the power button. The LED on the power button is at full illumination when the monitor is OFF. -
Page 7: Monitor Rear
HDSDI Inputs and Output used for field firmware upgrades. Connector The 3D-241-HDSDI has four HDSDI inputs and Service Connector four active loop-through outputs. DO NOT USE. This is for factory use only. Inputs are arranged as: Connecting any device to this port may damage A –... -
Page 8: Compatible Input Formats
1080i/60, 1080i/59.94, 1080i/50 1080psF/24, 1080psF/23.98 1080p23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30 720p/60, 720p/59.94, 720p/50 720p/23.98, 720p/24, 720p/25, 720p/29.97, 720p/30 The following VESA standards are supported by the 3D-241-HDSDI (DVI-I input): 640x480 @60Hz 800x600 @60Hz 1280x1024 @60Hz 1600x1200 @60Hz The following DVI-Video standards are supported by the 3D-241-HDSDI (DVI input): 525i, 625i 480p/59.94, 576p/50... -
Page 9: 2D / 3D Multi-View Layouts
2D / 3D Multi-View Layouts The 3D-241-HDSDI can display the two Stereo 3D input channels in a variety of ways. Each source is scaled and positioned to fit the desired layout. There are a total of 4 different layouts illustrated below. Each press of the [Layout] Button will change the current layout to the next available layout. -
Page 11: Menu And Navigation
Making changes to individual channels The 3D-241-HDSDI RotoMenu allows for Video, Color, System, OSD and IMD Configuration changes to be made to individual channels in the monitor. Items in the menu that can be changed for each individual input channel will... - Page 12 To modify an individual channel, select the particular submenu you would like to modify (in this case, the Monochrome option) by turning your RotoMenu left or right from the screen above. Your current position in the menu is indicated by the green highlight. When you have highlighted the particular channel you would like to modify, press the RotoMenu knob.
-
Page 13: 3D Configuration Submenu
To turn the Group Link option on from the above state, simply press the RotoMenu knob. The Group Link Icon will change from a broken Group Link icon to a completed Group Link icon, as shown below: The completed Group Link icon indicates that any change that you make to an individual channel, as shown section before this, will be applied to all other channels. -
Page 14: Video Configuration Submenu
■ Channel A/B Input Format Used to determine the type of signals applied to the inputs. Normal – Select this when connected to a dual-stream HDSDI Stereoscopic source. (Separate Left and Right on two BNC/Coax Cables) – Usually from a 3D Camera Rig, or 3D Editor. Side-By-Side* –... -
Page 15: Aspect Ratio Settings
■ Aspect Ratio Settings Use this menu option to switch between several aspect ratio settings. As the 3D-241-HDSDI monitor has a native resolution of 1920x1200 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 16: Dvi Configuration Submenu
■ Curtain Color Use this setting to choose the default color displayed on the screen when no video input is present. Available colors are blue, red, green, white, and black. ■ Ctemp/Gamma Use this setting to choose one of three color temperatures / gamma presets or to remove gamma application: •... -
Page 17: Color Configuration Submenu
Color Configuration Submenu Use the Color Configuration submenu to adjust the Red, Green and Blue Offset and Gain values of all four HD/SDI channels, the DVI-D input and DVI-A input. Each column adjusts a particular input channel, from HD/SDI Ch1-Ch4 to the DVI-I input. For the DVI-I input, you can adjust the Offset and Gain for either a DVI-D or DVI-A input. -
Page 18: Osd Configuration Submenu
• Blue Only Enable/disable Blue Only mode • Monochrome Enable/disable Monochrome mode • IMD-State Display/hide IMD text • Anc. Time Code Display/hide time code • OSD Tally Rotate amongst types of OSD Tally • Audio Monitor Display/hide Embedded Audio presence indicator •... -
Page 19: Osd Tally
Use this setting to enable or disable status display. When enabled, the current video input standard is displayed on the top left of the screen. When disabled, status is only displayed for 2 seconds when the monitor is powered on, when an input is applied, or when the input video standard changes. The status display reads “No Input” when no video input is present. -
Page 20: Audio Monitor
00:00:00:00 00:00:00:00 IMD Text IMD Text (red) (red) (red) (red) GR Mode: both colors activated RG Mode: both colors activated When the Tally Source is set to TSL/MEI 422, OSD Tally can be set to Off or IMD: • Off On-screen tally is disabled •... -
Page 21: Imd Configuration Submenu
IMD Configuration Submenu The 3D-241-HDSDI features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options (see below). Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industry-standard protocols, including TSL v4.0 and Image Video. -
Page 22: Tally Source
This protocol setting accepts Image Video commands via MEI protocol, for use when an Image Video controller is connected to the Marshall Network Controller box. ■ Tally Source The 3D-241-HDSDI OSD tally can be controlled in a variety of different ways. Use the Tally Source setting to choose how tally is controlled: Standard Use the Standard setting to control tally via contact closure on the HD-15 tally interface. -
Page 23: Imd Fixed Configuration Submenu
■ IMD Name (S/N) Use this setting to assign a name to each screen when using the Image Video or Marshall-IV protocols. The IMD name is equivalent to the Image Video serial number and is used by the Image Video controlling device to identify each screen. -
Page 24: Service Submenu
character set . Press the RotoMenu™ knob to choose a character. The '¬' character indicates an unused (NULL) value in the string. The string entered will be terminated by the first '¬'. Characters to the right of a '¬' character will be displayed in the menu, but will not be shown in the IMD string. -
Page 25: Specifications
Channel 1 Yellow Ground Channel 4 Green Burn-In Warning Channel 2 Green The 3D-241-HDSDI uses a high quality TFT LCD panel. Channel 2 Red However, if a static image is left on the screen for 48 Channel 2 Yellow Ground... -
Page 26: Dimensions
Dimensions... -
Page 27: Maintenance
It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by our technicians. - Page 28 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 2010-1001 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
