Summary of Contents for Marshall Electronics QV171X-HDSDI
-
Page 1: Operating Instructions

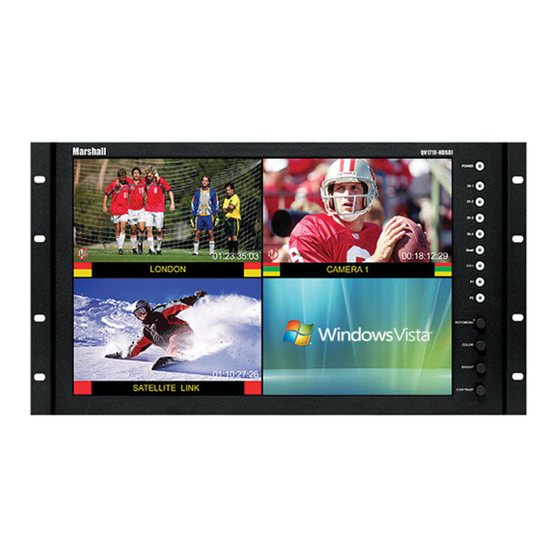

Marshall Electronics QV171X-HDSDI Model No. 17” Full Resolution Quad-Viewer Monitor Operating Instructions... -
Page 2: Table Of Contents
Features...3 Installation and Accessories ...4 Monitor Front ...5 Monitor Rear ...6 Compatible Input Formats ...7 Quad / Dual Monitor Layouts ...8 Menu and Navigation...10 Using the RotoMenu knob ...10 Video Configuration Submenu ...12 DVI Configuration Submenu ...14 Color Configuration Submenu ...15 System Configuration Submenu ...16... -
Page 3: Product Overview
Product Overview The Quad Viewer Series is the latest addition to Marshall's line of IMD-equipped monitors. The monitor features a full resolution 1920 x 1200 LCD panel, built-in high quality HD Quad Splitter, four independent HDSDI inputs, one DVI-I input, IMD (In-Monitor Display) capability, Audio Presence indicator, and Time Code. Video and DVI-I both offer full screen mode, while quad-split mode is scaled to fit onscreen in the highest resolution. -
Page 4: Installation And Accessories
Installation and Accessories Unpacking Carefully unpack the QV171X-HDSDI monitor and verify that the following items are included: • QV171X-HDSDI Monitor • V-PS12V-1 Power Supply with 2-Pin Twist Lock Connector • Operating Instructions Accessories The QV171X-HDSDI supports VESA standard 75mm devices. Marshall Electronics offers a VESA stand... -
Page 5: Monitor Front
Monitor Front [Power] Turn the monitor off or on by pressing the power button. The LED on the power button is at full illumination when the monitor is OFF. [Ch. 1-4 ] Channel Select Pressing Ch. 1, Ch. 2, Ch. 3 or Ch.4 will select HDSDI Video Inputs 1, 2, 3 or 4. -
Page 6: Monitor Rear
RS-422 / 485 Serial Interface The RS-422/485 ports are used to remotely control the IMD or all QV171X-HDSDI features using a variety of industry standard protocols. Only one connection to either port is needed to control the monitor. The second port can be used to loop multiple IMD capable monitors in the same bus. -
Page 7: Compatible Input Formats
The following VESA standards are supported by the QV171X-HDSDI (DVI-I input): 640x480 @60Hz 800x600 @60Hz 1280x1024 @60Hz 1680x1050 @60Hz 1600x1200 @60Hz The following video (DVI-D and DVI-A) standards are supported by the QV171X-HDSDI (DVI-I input): 480p/59.94, 576p/50 1080i/60, 1080i/59.94, 1080i/50 1080p/23.98, 1080p/24, 1080p/25, 1080p/29.97, 1080p/30 720p/60, 720p/59.94, 720p/50... -
Page 8: Quad / Dual Monitor Layouts
Quad / Dual Monitor Layouts The QV171X-HDSDI can display 4 different input sources simultaneously. Each source is scaled and positioned to fit the desired layout. There are a total of 4 different layouts illustrated below. Each press of the [Layout] Button will change the current layout to the next available layout. - Page 9 Quad Layout 3 Layout 4...
-
Page 10: Menu And Navigation
Menu and Navigation Access and navigate the main menu using the RotoMenu™ knob: Main Menu Using the RotoMenu knob • Press the RotoMenu™ knob to enter the main menu. • Rotate the knob to scroll up or down in the main menu or each submenu. •... - Page 11 Your current position in the menu is indicated by the green highlight. When you have highlighted the particular channel you would like to modify, press the RotoMenu knob. The box you have selected will change, indicating that this channel is now your choice to be modified, as shown below: To apply a change to the particular channel, turn your RotoMenu left or right after you have selected a channel (the channel is highlighted in red).
-
Page 12: Video Configuration Submenu
Use this setting to enable Blue-Only mode. This mode displays only the blue color component of the image, switching off the red and green components. Use this mode when calibrating the monitor to SMPTE color bars with the following procedure: Allow the monitor to warm up for at least 5-10 minutes. -
Page 13: Aspect Ratio Settings
■ Aspect Ratio Settings Use this menu option to switch between several aspect ratio settings. As the QV171X-HDSDI monitor has a native resolution of 1920x1200 RGB pixels, incoming images are automatically scaled to fit the screen: •... -
Page 14: Dvi Configuration Submenu
Primary Channel. In Quad Layout 4, the Primary Channel is the window on the left side. Framelock allows the monitor to use a known-stable input source as a reference-lock to the entire system. This can improve performance when 1 or more inputs are frequently switched and are non-synchronous. Under some conditions, selecting Off will reduce the time needed for image lock. -
Page 15: Color Configuration Submenu
The HDMI CSC Auto setting is used to accommodate newer HDMI interfaces that send colorspace signaling in the HDMI data stream. If this setting is set to On, the monitor will automatically determine which colorspace setting to use. If this setting is set to Off, or your HDMI signal does not contain colorspace signaling, the DVI-D CSC Mode described above will determine the colorspace configuration. -
Page 16: System Configuration Submenu
System Configuration Submenu System Configuration Submenu ■ User-Definable Function Buttons Use the Function 1 and Function 2 menu items to define each function button on the front panel of the monitor. The following options are available for each button: • IMD State Display/hide IMD text •... -
Page 17: Full System Restore
Use this setting to enable or disable status display. When enabled, the current video input standard is displayed on the top left of the screen. When disabled, status is only displayed for 2 seconds when the monitor is powered on, when an input is applied, or when the input video standard changes. The status display reads “No Input”... -
Page 18: Osd Tally
■ OSD Tally Use this setting to choose how tally is displayed on the screen. The available OSD Tally options depend on the Tally Source selected in the IMD Configuration submenu (see page 22). When the Tally Source is set to Standard (contact closure), OSD Tally can be set to Off, RGY, RG, or GR: •... -
Page 19: Audio Monitor
■ Audio Monitor Use the Audio Monitor menu option to enable or disable the audio presence indicator icon. When enabled, this icon indicates whether embedded audio is present in the HD/SDI video input. A red circle and cross will flash on the icon if no embedded audio is present. -
Page 20: Imd Configuration Submenu
IMD Configuration Submenu The QV171X-HDSDI features an In-Monitor Display (IMD) with the ability to display on-screen text and tally in three colors. IMD text, color, and alignment can be assigned to each screen locally using menu options (see below). Alternately, IMD text and tally can be remotely controlled via the RS-422/485 serial interface using several industry-standard protocols, including TSL v4.0 and Image Video. -
Page 21: Tally Source
This protocol setting accepts Image Video commands via MEI protocol, for use when an Image Video controller is connected to the Marshall Network Controller box. ■ Tally Source The QV171X-HDSDI OSD tally can be controlled in a variety of different ways. Use the Tally Source setting to choose how tally is controlled: Standard Use the Standard setting to control tally via contact closure on the HD-15 tally interface. -
Page 22: Imd Fixed Configuration Submenu
■ IMD Name (S/N) Use this setting to assign a name to each screen when using the Image Video or Marshall-IV protocols. The IMD name is equivalent to the Image Video serial number and is used by the Image Video controlling device to identify each screen. -
Page 23: Service Submenu
Ipap: Image Processor model number Fc: Combiner FPGA version Fcp: FPGA model number Service Menu Please contact Marshall Electronics to ensure you have the latest software version available. Kp: Keypad version number Imc: C/D Input Module version Ipc: Image Processor version... -
Page 24: Specifications
Pixel Pitch (h x v) 0.191mmx 0.191mm Burn-In Warning The QV171X-HDSDI uses a high quality TFT LCD panel. However, if a static image is left on the screen for 48 hours, there may be a 10 to 20 minute recovery period for the panel. -
Page 25: Dimensions
Dimensions... -
Page 26: Maintenance
It is considered normal for a minimal amount of pixels, not to exceed three, to fail on the periphery of the display active viewing area. Marshall Electronics reserves the option to refuse service for display pixel failure if deemed unobtrusive to effective use of the monitor by our technicians. - Page 27 Marshall Electronics, Inc. 1910 East Maple Ave. El Segundo, CA 90245 Tel: (800) 800-6608 / (310) 333-0606 • Fax: 310-333-0688 www.LCDRacks.com • sales@lcdracks.com...
